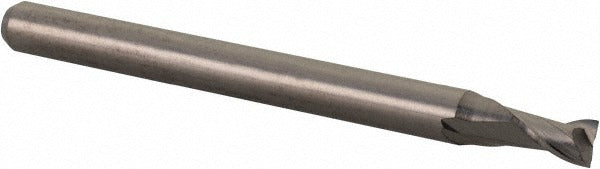

Accupro 14797028 Square End Mill 0.095 in 2 Flute Carbide

Product Description

The ACCUPRO 14797028 is a solid carbide square end mill designed for precision milling operations in metal, composites, and hard plastics. With a 0.095-inch cutting diameter and a 0.143-inch length of cut, this tool handles slotting, profiling, and peripheral milling in tight-tolerance applications. The micrograin carbide construction provides hardness and wear resistance for demanding cuts. A 30-degree right-hand helix promotes efficient chip evacuation and reduces cutting forces. The bright, uncoated finish suits general-purpose work where coating is not required. This end mill is installed and used by machinists and tooling professionals in CNC machining centers and manual mills.

This end mill is suited for light-duty milling passes in ferrous and non-ferrous materials where a small-diameter tool is required. The 0.095-inch diameter makes it appropriate for fine detail work, small pockets, and narrow slot cuts. The 1/8-inch shank diameter fits standard collets common on CNC routers, benchtop mills, and full-size vertical machining centers. The regular-length geometry keeps the tool compact and rigid, minimizing deflection during cuts. Single-end configuration means the tool is replaced rather than flipped when worn.

Key Features

• Solid micrograin carbide construction for improved hardness and edge retention
• 0.095-inch mill diameter with a tight tolerance of plus 0.0000 / minus 0.0010 inches
• 0.143-inch length of cut for shallow slotting and profiling passes
• 30-degree right-hand spiral flute for effective chip evacuation
• Centercutting geometry allows plunge entry into the workpiece
• Bright, uncoated finish for general-purpose applications without coating overhead

Compatibility

Designed as a standard replacement or production end mill for use in any CNC or manual milling setup accepting a 1/8-inch straight shank collet or chuck.

Installation Notes

Installation is performed by qualified machinists or tooling technicians. Ensure the machine spindle is fully stopped and locked out before inserting or removing the end mill from the collet. Use a calibrated torque wrench and the appropriate collet nut spanner to seat the shank to the tool holder manufacturer's specification. Inspect the cutting edges and shank for damage before each use; discard the tool if chipping or shank wear is observed.
