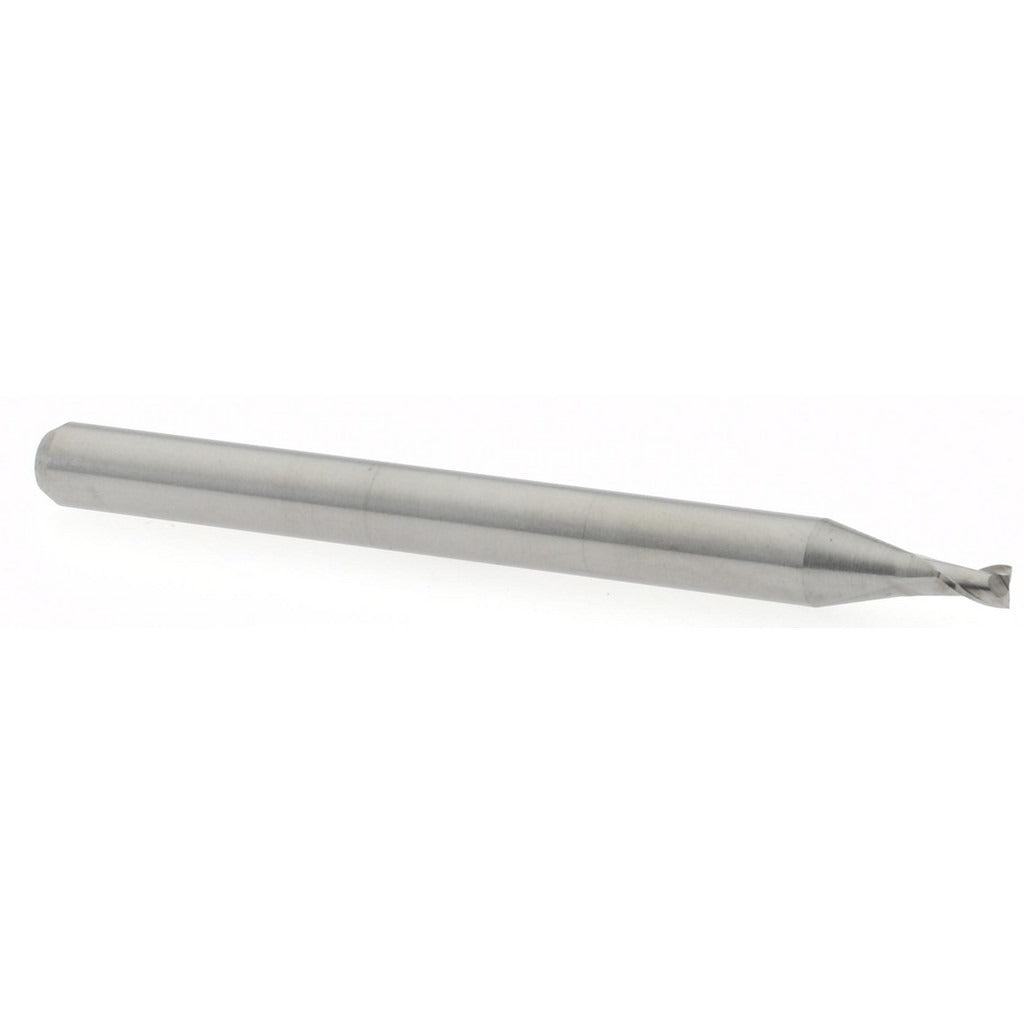

Accupro 14797013 Square End Mill 0.06 in 2 Flute Carbide

Product Description

The ACCUPRO 14797013 is a solid carbide square end mill designed for precision milling operations in metal, composites, and hard materials. With a 0.06-inch cutting diameter and a 3/32-inch (0.09-inch) length of cut, this tool is suited for small-feature work, slot milling, and detail profiling. The micrograin carbide construction delivers hardness and wear resistance for demanding cuts. It runs right-hand cutting and right-hand flute direction with a 30-degree helix angle, providing efficient chip evacuation and smooth surface finishes. This single-end tool ships with a bright, uncoated finish and is ready to run from the package.

This end mill is used in CNC machining centers, manual mills, and die-and-mold work where tight tolerances and small-diameter cuts are required. It is well suited for finishing passes in confined pockets and slots, engraving applications, and detailed profiling work. Machinists and tool-and-die technicians typically select this tool for close-tolerance jobs where micrograin carbide rigidity outperforms high-speed steel. The 1/8-inch shank diameter fits standard collets and toolholders common in light-duty CNC spindles and benchtop mills.

Key Features

• Micrograin solid carbide construction for hardness and edge retention
• 30-degree helix angle promotes efficient chip flow and reduced cutting forces
• Centercutting design allows plunge entry into workpiece material
• Bright, uncoated finish suitable for a wide range of base materials
• Right-hand cut and right-hand spiral flute configuration
• Regular length classification with 1.5-inch overall length for stable reach

Compatibility

Designed as a direct-fit replacement or standard tooling selection for CNC machining centers and manual milling machines equipped with 1/8-inch collets or toolholders accepting a 0.125-inch shank diameter.

Installation Notes

Installation is performed by a machinist or CNC operator. Ensure the spindle is fully stopped and the machine is powered off before inserting or removing tooling. Seat the shank fully into the collet to the recommended engagement depth and torque the collet nut per the toolholder manufacturer specifications. Verify runout with a dial indicator before beginning cuts, especially given the small diameter, which is sensitive to even minor misalignment.
