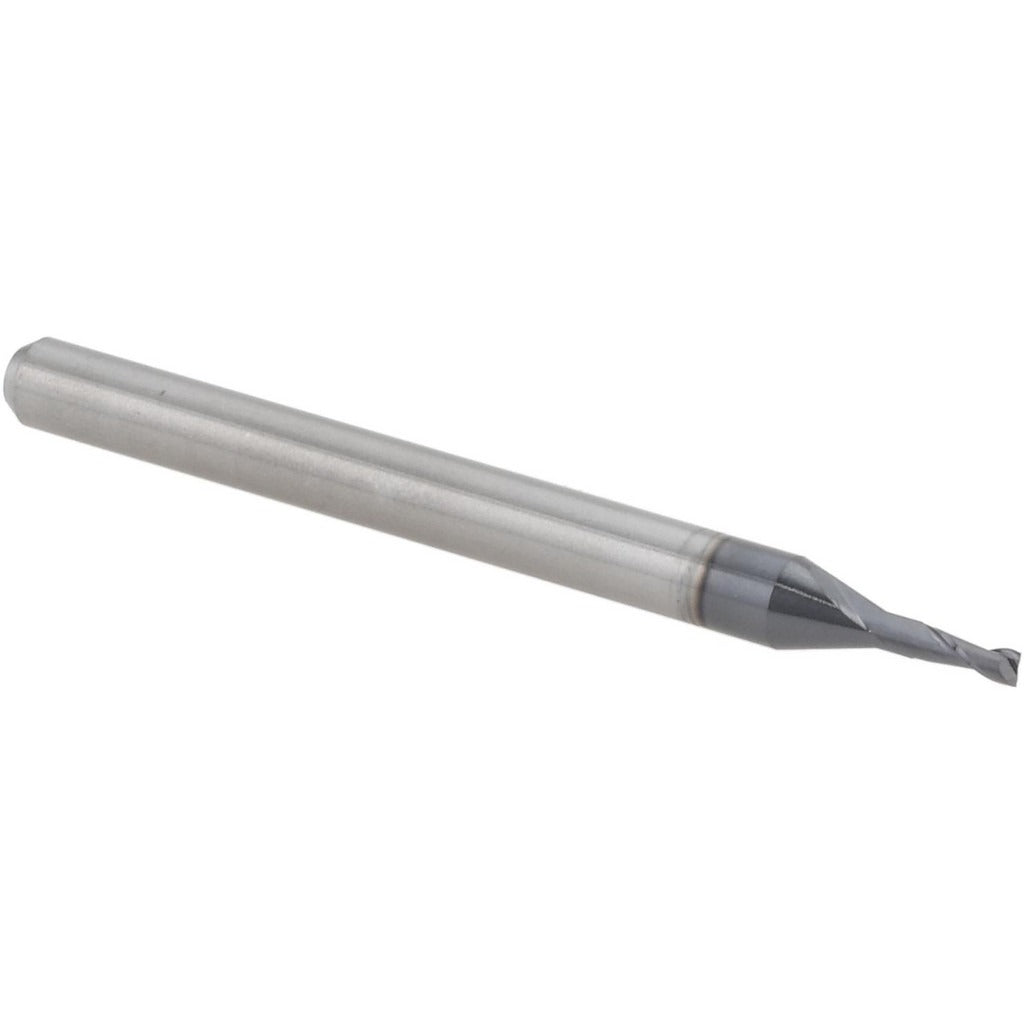

Accupro 14796915 Square End Mill 3/64 in 2 Flute Carbide

Product Description

The ACCUPRO 14796915 is a single-end square end mill designed for precision milling of ferrous and non-ferrous materials in tight-tolerance machining applications. Built from micrograin solid carbide, it offers rigidity and wear resistance in a compact 3/64 inch (0.0470 inch decimal) cutting diameter. The AlTiN coating improves heat resistance and extends tool life in high-speed and dry cutting conditions. With a 30-degree helix angle and right-hand spiral flutes, the two-flute geometry promotes efficient chip evacuation and clean edge finishes. Machinists and CNC operators use this tool for slotting, profiling, and pocket milling in small-feature work.

This end mill is suited for precision CNC milling operations where small cutting diameters and tight tolerances are required. The 9/64 inch length of cut and 1-1/2 inch overall length make it appropriate for shallow pocket work and detail passes in mold making, die work, prototype machining, and close-tolerance production runs. The 1/8 inch shank diameter fits standard collets and tool holders used in vertical machining centers and benchtop CNC mills. It is a centercutting tool, allowing plunge entry into workpiece material.

Key Features

• Micrograin solid carbide construction for rigidity and extended tool life
• AlTiN coating for high-temperature resistance in dry and high-speed cutting
• 30-degree right-hand helix for efficient chip evacuation
• Centercutting geometry allows direct plunge entry
• Two-flute design suited for small-diameter slotting and profiling
• Mill diameter tolerance of +0.0000 / -0.0010 inches for consistent fit

Compatibility

Designed for use in standard CNC milling machines and machining centers accepting a 1/8 inch shank diameter with compatible collet or tool holder. Part of the ACCUPRO ASQSC2-AT-CC-30H series.

Installation Notes

Installation should be performed by a qualified machinist or CNC operator. Ensure the spindle is fully stopped and the machine is powered down before changing tooling. Seat the shank fully and evenly in the collet to the recommended gauge line to prevent runout and tool pull-out during cutting. Verify runout with a dial indicator before production use, especially critical at this cutting diameter.
