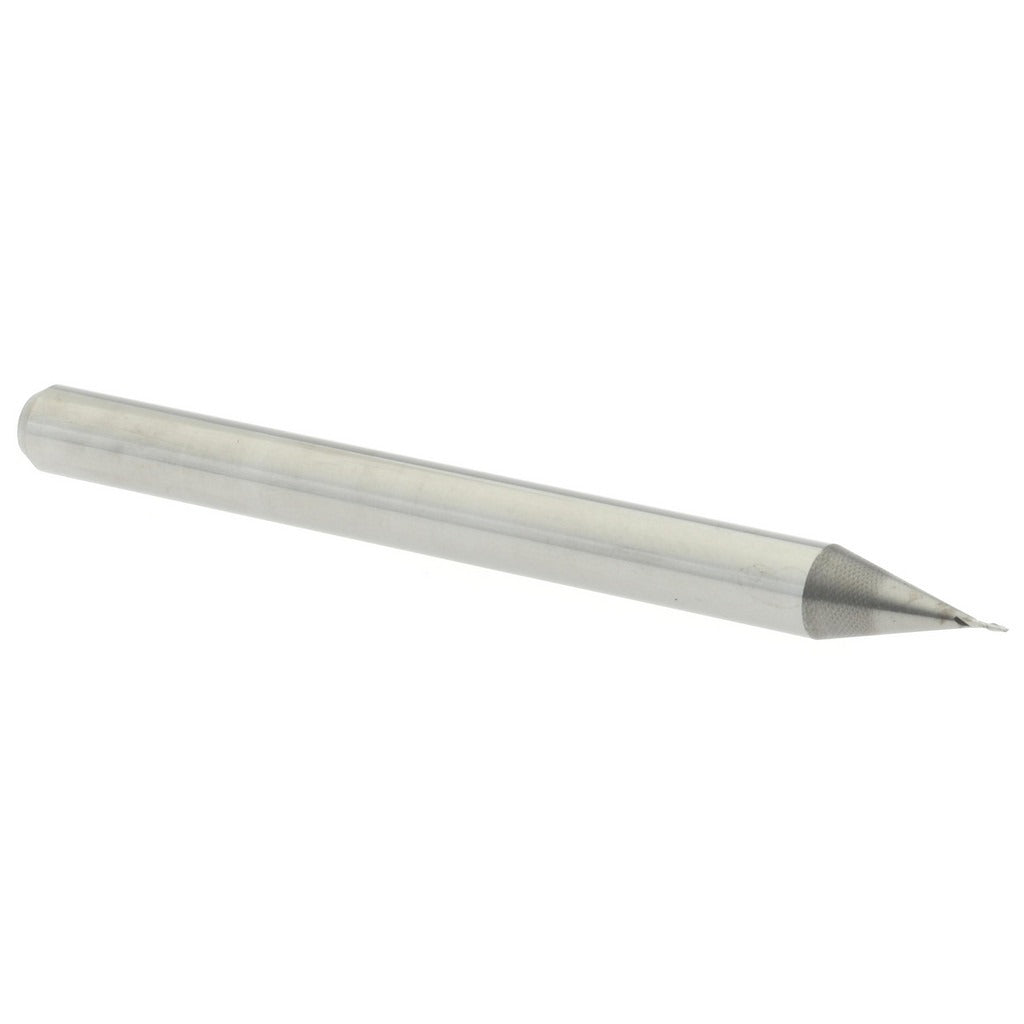

Accupro 14796886 Square End Mill 0.011 in 2 Flute Carbide

Product Description

The ACCUPRO 14796886 is a solid carbide square end mill designed for precision milling of tight-detail features in metalworking and toolroom applications. With a 0.011-inch cutting diameter and a 0.033-inch length of cut, this tool is built for micro-milling operations where dimensional accuracy is critical. The micrograin carbide construction provides the rigidity and edge retention needed at small diameters. A 30-degree helix angle promotes efficient chip evacuation during right-hand cutting. The bright, uncoated finish makes it suitable for use with or without coolant in a range of work materials. Licensed machinists and toolroom technicians are the primary installers and operators of this tool.

This end mill is suited for precision slot milling, profiling, and detail work in ferrous and non-ferrous materials. The 0.125-inch shank diameter allows it to seat in standard collets and toolholders used on CNC machining centers, benchtop mills, and manual knee mills. Its regular-length geometry and single-end configuration make it a straightforward choice for close-tolerance work requiring minimal tool stick-out and maximum rigidity at micro diameters.

Key Features

• 0.011-inch cutting diameter for micro-milling and fine-detail applications
• Solid micrograin carbide construction for edge retention and rigidity at small diameters
• 30-degree right-hand helix for efficient chip evacuation
• Center-cutting design allows plunge entry
• Bright, uncoated finish compatible with a broad range of work materials
• 0.125-inch shank diameter fits standard collets and toolholders

Compatibility

Designed for use in standard 1/8-inch collets and toolholders on CNC machining centers, manual mills, and high-speed spindles capable of accommodating micro-diameter end mills.

Installation Notes

Installation and operation should be performed by qualified machinists or toolroom technicians. Ensure the spindle and toolholder are clean and free of runout before seating the shank, as even minor runout is amplified significantly at 0.011-inch diameters. Torque the collet nut per the toolholder manufacturer's specification. At micro diameters, use conservative feed and speed parameters and verify workholding rigidity before cutting to avoid tool breakage.
