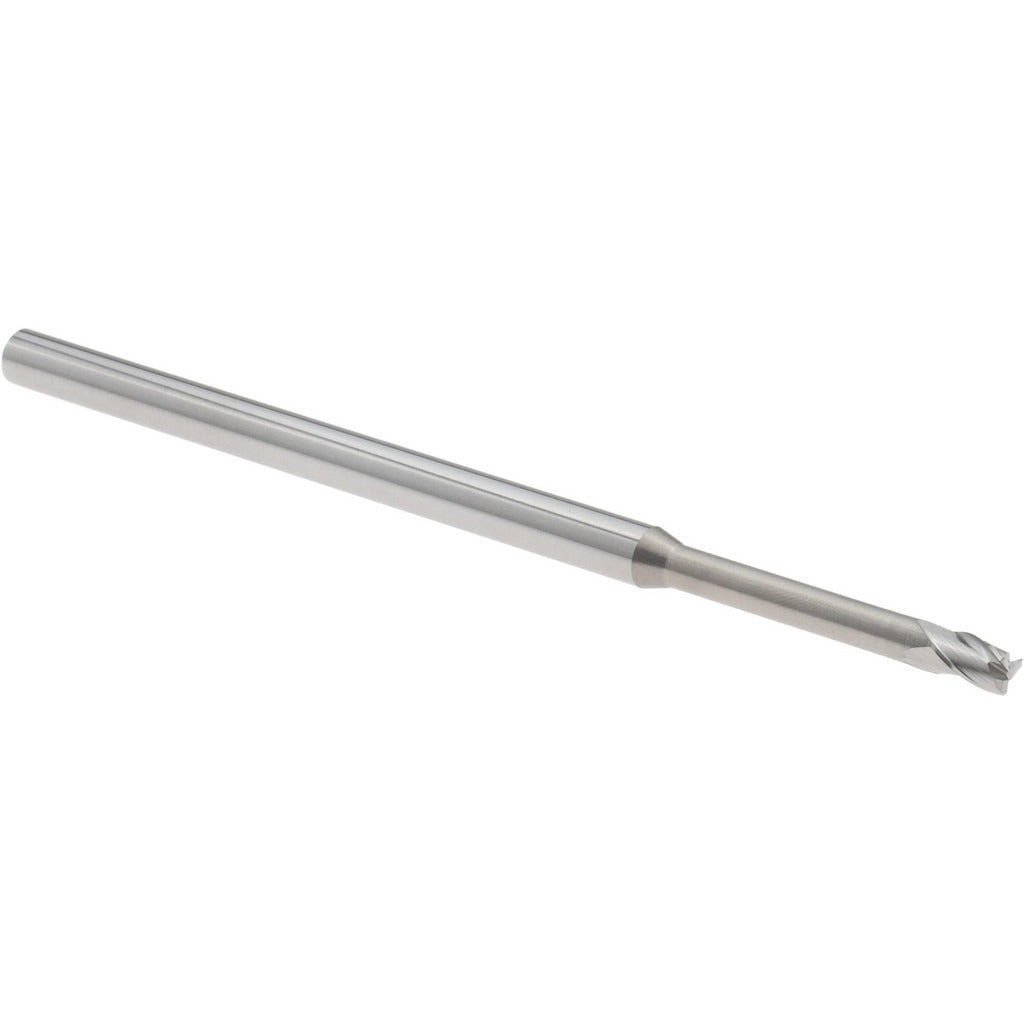

Accupro 14796254 Corner Radius End Mill 0.0938in 3 Flute

Product Description

The ACCUPRO 14796254 is a solid carbide corner radius end mill designed for precision milling operations requiring a tight corner radius profile. The cutting diameter is 0.0938 inches with a 0.0100-inch corner radius, a 2-inch length of cut, and a 2.5-inch overall length. Built from micrograin solid carbide, this tool delivers the rigidity and edge retention needed for small-feature work in ferrous and non-ferrous materials. It operates as a single-end, center-cutting tool with a right-hand flute direction and right-hand cutting direction. The 30-degree helix angle promotes efficient chip evacuation during deep or finish passes. Installed by machinists and tool-and-die professionals, this end mill suits CNC machining centers and manual mills alike.

This miniature-series end mill is suited for applications demanding fine detail and tight tolerances in small workpieces. The extended-reach design, with a 0.75-inch reach length, allows access to recessed features and pockets without tool deflection concerns. The 0.125-inch shank diameter fits standard ER and collet-style toolholders common in CNC machining operations. Typical applications include mold and die work, prototype machining, and fine finishing passes on aluminum, brass, steel, and similar machinable alloys.

Key Features

• 0.0938-inch cutting diameter with 0.0100-inch corner radius for small-feature profiling
• Micrograin solid carbide construction for hardness and edge retention
• 3-flute geometry balances chip clearance and surface finish quality
• Center-cutting design enables direct plunge entry
• 30-degree helix angle supports efficient chip evacuation
• Extended-reach configuration with 0.75-inch reach length for recessed pocket access
• Bright/uncoated finish suitable for a broad range of general-purpose materials

Compatibility

Designed as an OEM-style miniature corner radius end mill compatible with standard 0.125-inch collet and ER-style toolholding systems used on CNC machining centers and manual milling machines.

Installation Notes

Installation should be performed by a qualified machinist following the machine tool manufacturer guidelines for toolholder torque and runout specifications. Confirm the collet bore and toolholder are clean and free of chips before seating the shank. Verify spindle speed and feed rate parameters against the workpiece material before beginning a cut. Never exceed the tool length of cut specification to avoid tool deflection or breakage.
