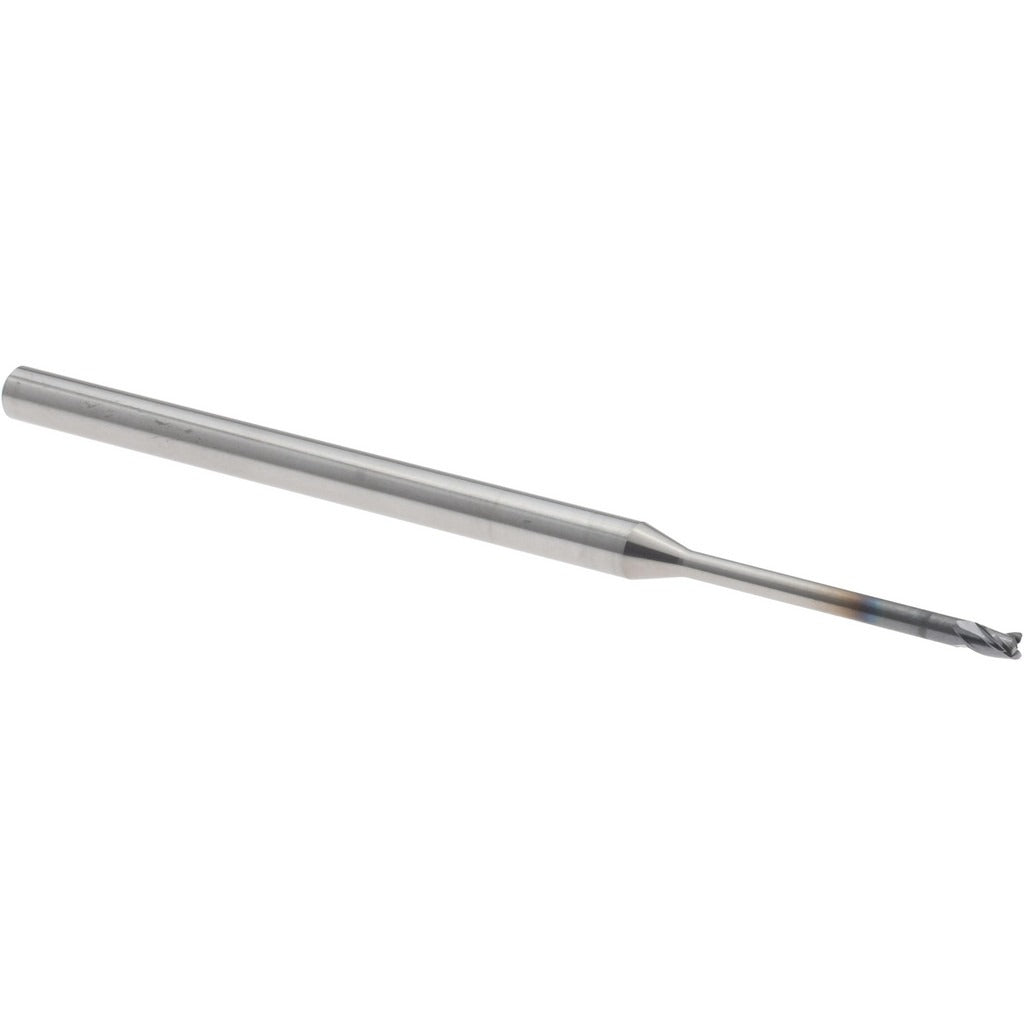

Accupro 14796236 Corner Radius End Mill 1/16 in 3 Flute

Product Description

The ACCUPRO 14796236 is a solid carbide corner radius end mill designed for high-precision milling in tight-tolerance applications. Built on a miniature series platform, it features a 1/16 inch (0.0625 inch) mill diameter with a 0.0050 inch corner radius and three right-hand spiral flutes. The AlTiN coating provides heat resistance and extended tool life when cutting ferrous and hardened materials. With an overall length of 2.5 inches and a 1/8 inch shank diameter, this single-end, centercutting tool is suited for CNC machining centers and high-speed milling operations where small-diameter precision work is required.

This end mill is intended for use in precision machining environments including mold and die work, aerospace component manufacturing, and any application requiring miniature-scale material removal with controlled corner geometry. The extended reach design, with a 0.75 inch reach length and 0.0930 inch length of cut, allows access to confined features and narrow slots. It is installed and run by machinists and CNC programmers working with small-diameter tooling on vertical or horizontal machining centers.

Key Features

• Solid carbide micrograin construction for rigidity and wear resistance in demanding cuts
• AlTiN coating for elevated heat tolerance and longer tool life on ferrous and hardened workpieces
• 0.0050 inch corner radius reduces stress concentrations at part edges and extends tool life
• Three right-hand spiral flutes with 30-degree helix angle for efficient chip evacuation
• Extended reach design with 0.75 inch reach length for access to deep or confined features
• Centercutting geometry allows plunge entry directly into material

Compatibility

Designed as an OEM-style replacement or direct-fit tooling option for CNC machining centers and milling machines accepting a 1/8 inch shank diameter collet or tool holder in miniature-series end mill applications.

Installation Notes

Installation should be performed by a qualified machinist or CNC technician. Ensure the tool holder and collet are clean and within specification before seating the 1/8 inch shank. Confirm runout is within acceptable limits before initiating a cut, as small-diameter carbide tooling is sensitive to excessive runout and can fracture under improper setup. Always verify spindle speed and feed rate parameters are appropriate for the workpiece material and tool diameter before operation.
