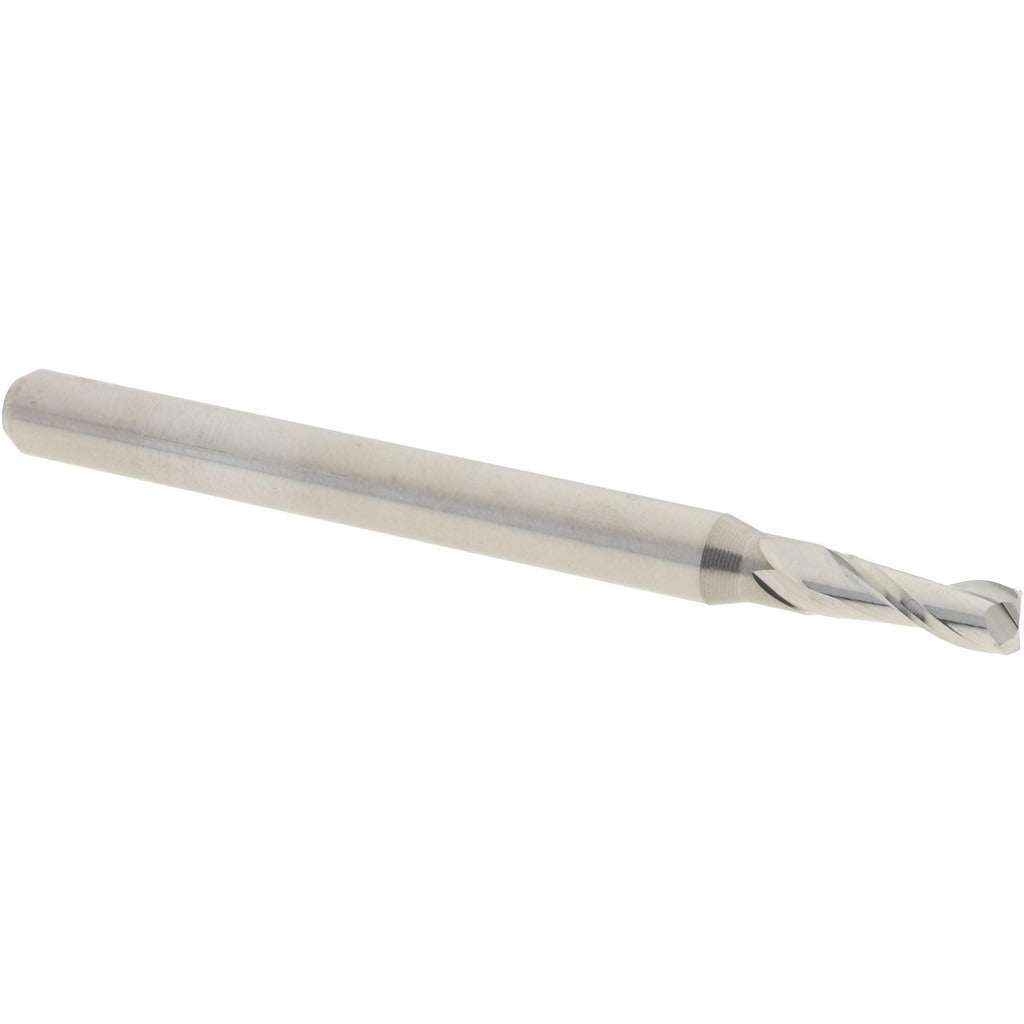

Accupro 14796212 Corner Radius End Mill 0.0938in 2 Flute Carbide

Product Description

The ACCUPRO 14796212 is a miniature solid carbide corner radius end mill designed for precision milling operations requiring a controlled edge radius. The cutting diameter measures 0.0938 inches with a 0.02 inch corner radius, and the tool features 2 right-hand spiral flutes with a 30-degree helix angle. The length of cut is 1.0 inches and overall length is 1.5 inches. Constructed from micrograin solid carbide, it delivers the rigidity and edge retention needed for tight-tolerance work in hardened steels, stainless, and non-ferrous alloys. The bright uncoated finish suits applications where coating interaction with the workpiece material is a concern.

This end mill is intended for small-part machining, die and mold work, and detail contouring where a miniature tool footprint is required. The single-end, centercutting design allows plunge entry as well as peripheral and slot milling. It is suited for CNC machining centers and precision manual mills running at the elevated spindle speeds appropriate for sub-0.1 inch diameter carbide tooling. The 1/8 inch shank diameter fits standard collet systems commonly used in miniature and high-speed machining setups.

Key Features

• 0.0938 inch cutting diameter with 0.02 inch corner radius for edge-strength on small features
• Micrograin solid carbide construction for hardness and wear resistance
• 2-flute, 30-degree right-hand helix for efficient chip evacuation in a miniature profile
• Centercutting design allows plunge milling without a pre-drilled lead hole
• Bright uncoated finish suitable for non-ferrous metals and applications where coatings are not preferred
• 1/8 inch shank diameter compatible with standard miniature collet systems

Compatibility

Designed as an OEM-style miniature end mill for use in CNC machining centers and precision mills equipped with collet systems accepting a 1/8 inch shank diameter.

Installation Notes

Installation should be performed by a qualified machinist. Secure the shank fully into the collet to the recommended gauge depth before torquing the collet nut. Verify spindle speed and feed rate are appropriate for the tool diameter and workpiece material before engaging the cut. At sub-0.1 inch diameters, carbide is brittle — avoid side-loading the tool beyond its rated depth of cut, and do not use this tool in an out-of-balance or worn spindle.
