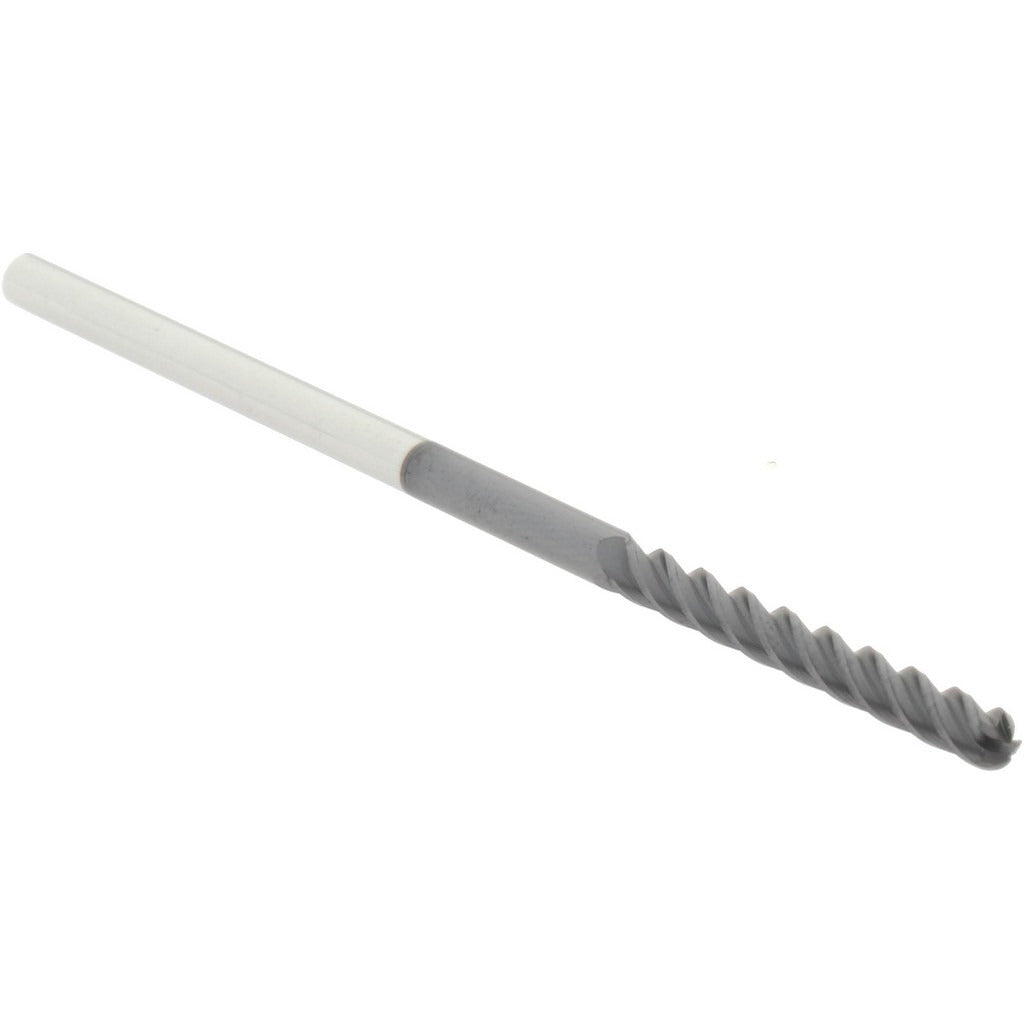

Accupro 14788705 Ball End Mill 0.125 in 4 Flute Solid Carbide

Product Description

The ACCUPRO 14788705 is a 4-flute solid carbide ball end mill designed for precision milling operations in ferrous and non-ferrous materials. It features a 0.125 inch cutting diameter with a 1 inch length of cut (LOC) and a 3 inch overall length (OAL). The AlTiN+ coating improves heat resistance and extends tool life in high-temperature cutting environments. The cylindrical shank measures 0.125 inches in diameter, matching the cutting diameter for use in standard collet systems. Machinists and tool-and-die professionals install this end mill in CNC machining centers, manual mills, and die-grinding setups where tight radii and contoured surfaces are required.

This end mill is suited for finish milling, profiling, slotting, and 3D contouring in mold and die work, aerospace components, and general precision machining. The medium flute geometry balances chip evacuation with surface finish quality. At 0.125 inch diameter, it is well matched for fine-detail work and tight-tolerance cavities. The AlTiN+ coating makes it effective when running at elevated speeds or when machining hardened steels, stainless, and similar alloys.

Key Features

• 0.125 inch ball nose diameter for fine-detail and contour milling
• 4-flute design with medium flute type for balanced chip evacuation and finish quality
• AlTiN+ coating for improved wear resistance and performance in high-temperature cutting
• Solid carbide construction for rigidity and dimensional accuracy
• 1 inch length of cut with 3 inch overall length for reach into pockets and cavities
• Cylindrical shank for compatibility with standard collet and toolholder systems

Compatibility

Designed as a standard-shank solid carbide ball end mill for use in CNC machining centers and manual mills equipped with collet toolholders accepting a 0.125 inch cylindrical shank.

Installation Notes

Installation should be performed by a qualified machinist following shop safety procedures. Ensure the spindle is fully stopped and the machine is powered down before changing tooling. Secure the shank firmly in a properly sized collet or toolholder to the depth recommended by the toolholder manufacturer to prevent pullout. Verify runout with a dial indicator before beginning a cut to protect both the tool and the workpiece.
