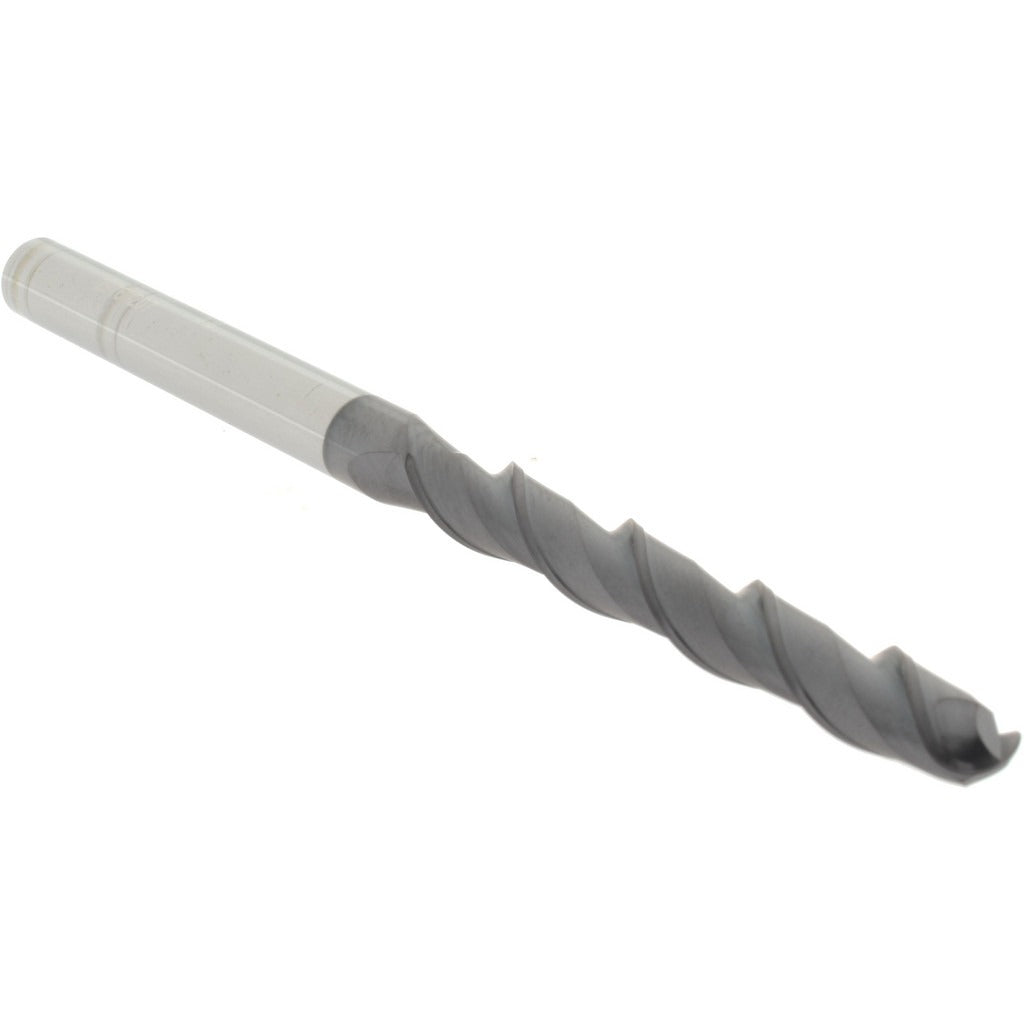

Accupro 14788637 Ball End Mill 0.375 in 2 Flute Solid Carbide

Product Description

The ACCUPRO 14788637 is a 2-flute solid carbide ball end mill designed for precision milling operations across a range of ferrous and non-ferrous materials. It features a 0.375 inch mill diameter with a matching 0.375 inch cylindrical shank and a 3 inch length of cut, giving it substantial reach for deep-pocket and contour work. The AlTiN+ coating delivers elevated heat resistance and extended tool life under high-speed cutting conditions. At 6 inches overall length, this end mill suits setups where extended reach is needed without sacrificing rigidity. Medium flute geometry balances chip evacuation and surface finish. Machinists and tool-and-die professionals use this tool in CNC milling centers for profiling, slotting, and 3D contour applications.

This ball end mill is suited for ferrous alloys, hardened steels, stainless steel, and similar demanding workpiece materials where AlTiN+ coating provides the thermal barrier needed to maintain cutting edge integrity. The 2-flute configuration supports effective chip removal in deeper cuts and tighter pockets. At 0.375 inch diameter with a full 3 inch length of cut, it handles both semi-finish and finish passes in vertical and horizontal machining centers. No chipbreaker geometry means the cutting edge is continuous, optimizing surface finish on contoured profiles and ball-nose blend operations.

Key Features

• 0.375 inch ball nose diameter with matched 0.375 inch cylindrical shank for concentric runout
• 3 inch length of cut for deep-pocket and extended-reach milling
• AlTiN+ coating for high-heat resistance and extended tool life on ferrous and hardened materials
• 2-flute medium flute geometry balances chip evacuation with surface finish quality
• Solid carbide construction provides rigidity and wear resistance over high-speed tool paths
• 6 inch overall length supports deep-reach setups in CNC machining centers

Compatibility

Designed as an OEM-style replacement or direct-use solid carbide ball end mill for CNC vertical and horizontal machining centers accepting a 0.375 inch cylindrical shank tool holder.

Installation Notes

Installation is performed by a qualified machinist or CNC setup technician. Power down and lock out the spindle before installing or removing the tool holder. Confirm tool holder bore and collet size match the 0.375 inch shank diameter before seating. Verify tool stick-out and runout with a dial indicator after clamping to maintain tolerances on finish passes.
