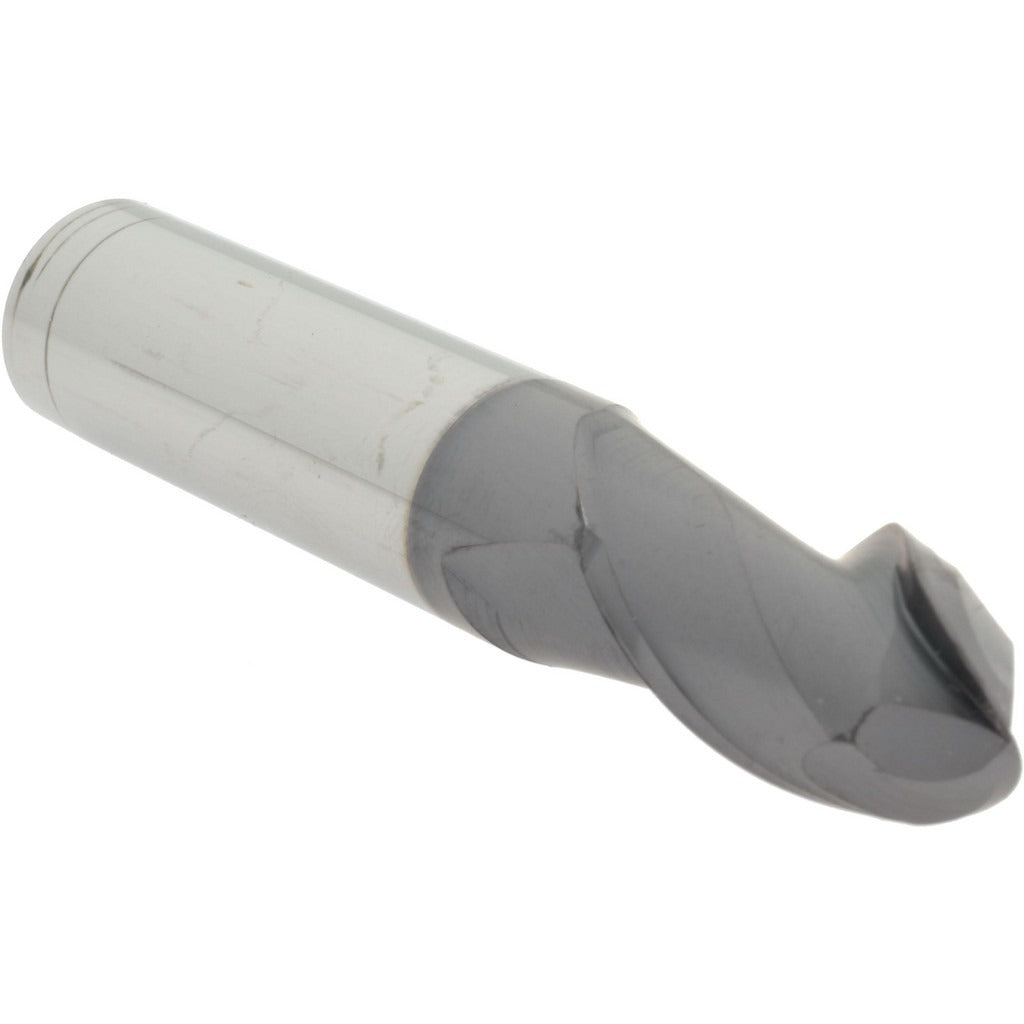

Accupro 14788613 Ball End Mill 0.563 in 2 Flute Solid Carbide

Product Description

The ACCUPRO 14788613 is a 2-flute solid carbide ball end mill designed for high-performance milling in ferrous and non-ferrous materials. It features a 0.563-inch mill diameter, a 0.875-inch length of cut, and a 3-inch overall length. The AlTiN+ coating provides elevated heat resistance and extended tool life at higher cutting speeds, making this end mill a dependable choice for die and mold work, contouring, and profiling operations. The cylindrical shank diameter matches the mill diameter at 0.563 inches, allowing standard collet or end mill holder retention. This tool is installed and used by machinists and tool-and-die professionals in CNC machining centers and manual mills.

This ball end mill is suited for 3D contouring, slotting, and profiling passes in materials where AlTiN+ coating performance is advantageous, including alloy steels, hardened steels, and cast iron. The medium flute geometry supports chip evacuation in moderate-depth cuts. With no chipbreaker and a standard cylindrical shank, setup is straightforward in conventional end mill holders, collet chucks, or shrink-fit tooling systems. Its compact 3-inch overall length makes it appropriate for short-reach applications where rigidity is a priority.

Key Features

• 0.563-inch ball diameter for precise radius contouring and profiling
• AlTiN+ coating for improved heat resistance and extended tool life at elevated cutting speeds
• Solid carbide construction provides rigidity and wear resistance over high-speed tool paths
• 2-flute, medium flute geometry supports chip flow in slotting and contouring operations
• 0.875-inch length of cut with 3-inch overall length for short-reach, high-rigidity setups
• Cylindrical shank compatible with standard collet chucks and end mill holders

Compatibility

Designed as a direct-use solid carbide ball end mill for CNC machining centers and manual mills accepting a 0.563-inch cylindrical shank via collet chuck, end mill holder, or shrink-fit tooling.

Installation Notes

Installation is performed by qualified machinists following standard tool-change procedures. Ensure the spindle is fully stopped and the machine is in a safe state before seating or removing the tool. Verify holder bore size and runout tolerance before tightening to the holder manufacturer's specified torque. Inspect the cutting edges for coating integrity and edge condition before each use.
