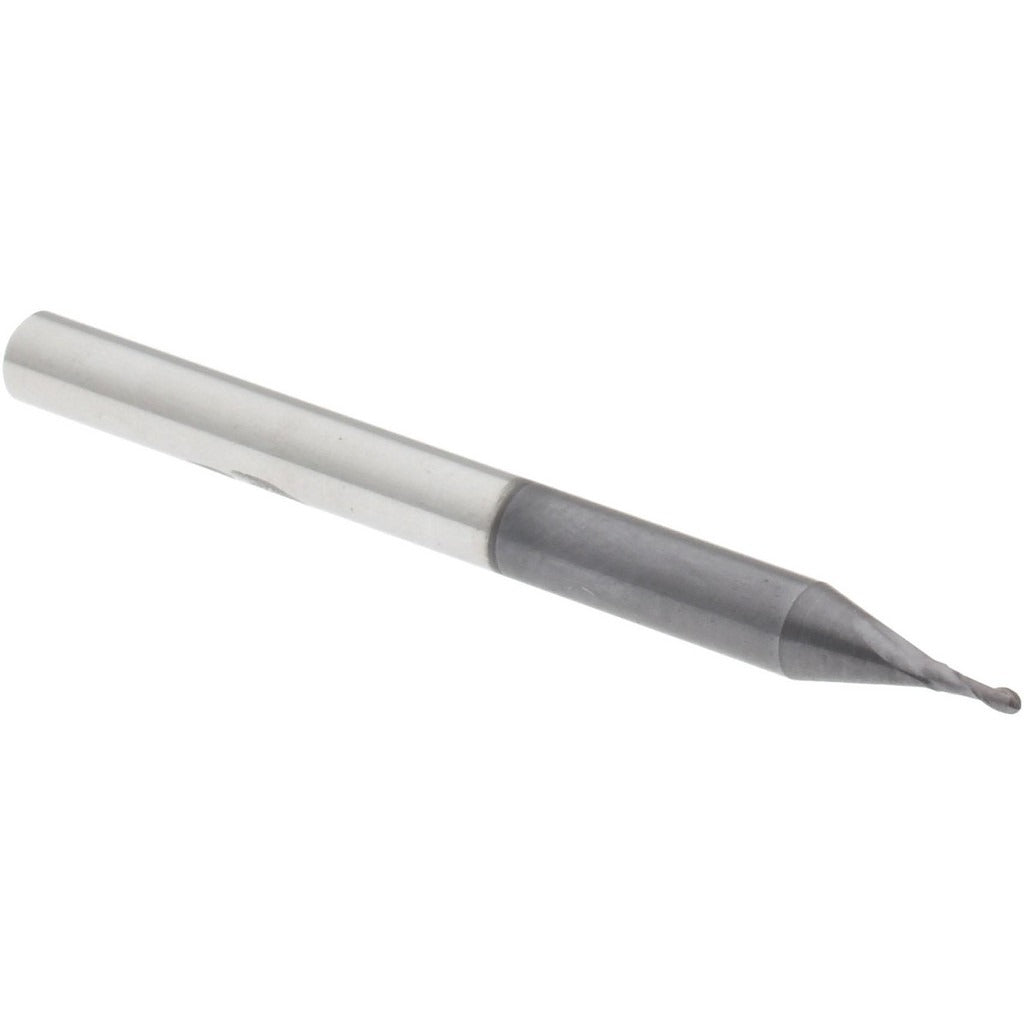

Accupro 14788592 Ball End Mill 0.031 in 2 Flute Carbide

Product Description

The ACCUPRO 14788592 is a solid carbide ball end mill designed for precision milling of contoured surfaces, slots, and complex 3D profiles in ferrous and non-ferrous materials. It carries a 0.031 inch cutting diameter and a 0.094 inch length of cut, making it well suited for fine detail work and tight-tolerance finishing passes. The AlTiN+ coating provides heat resistance and extended tool life in high-speed machining environments. With two flutes and a medium flute type, this end mill balances chip evacuation with surface finish quality. Machinists and CNC operators in job shops, tool rooms, and production environments install this tool in standard milling machines and machining centers.

This ball end mill is applied in operations requiring small-diameter, high-precision cutting, including die and mold work, engraving, and contour finishing. The 0.125 inch cylindrical shank fits standard collets and tool holders common in CNC machining centers. Its compact overall length of 1.5 inches and non-extended reach profile make it appropriate for shallow-to-medium depth operations where rigidity and runout control are critical. No chipbreaker geometry is present, keeping the cutting geometry clean for finishing applications.

Key Features

• 0.031 inch ball cutting diameter for fine detail and contour milling
• AlTiN+ coating for elevated heat resistance and longer tool life in hard materials
• Solid carbide construction for rigidity and dimensional stability
• 2-flute, medium flute geometry balances chip clearance and surface finish
• Cylindrical shank with 0.125 inch diameter fits standard collet systems
• Compact 1.5 inch overall length minimizes deflection in shallow operations

Compatibility

Designed for use in CNC machining centers and manual milling machines accepting a 0.125 inch cylindrical shank collet or tool holder.

Installation Notes

Installation is performed by qualified machinists or CNC operators. Secure the shank fully into a clean, undamaged collet or end mill holder and torque to the tool holder manufacturer's specification. Inspect the cutting edge for chips or damage before each use. At this diameter, runout control is critical — verify TIR with a dial indicator before beginning a cut to avoid premature tool failure.
