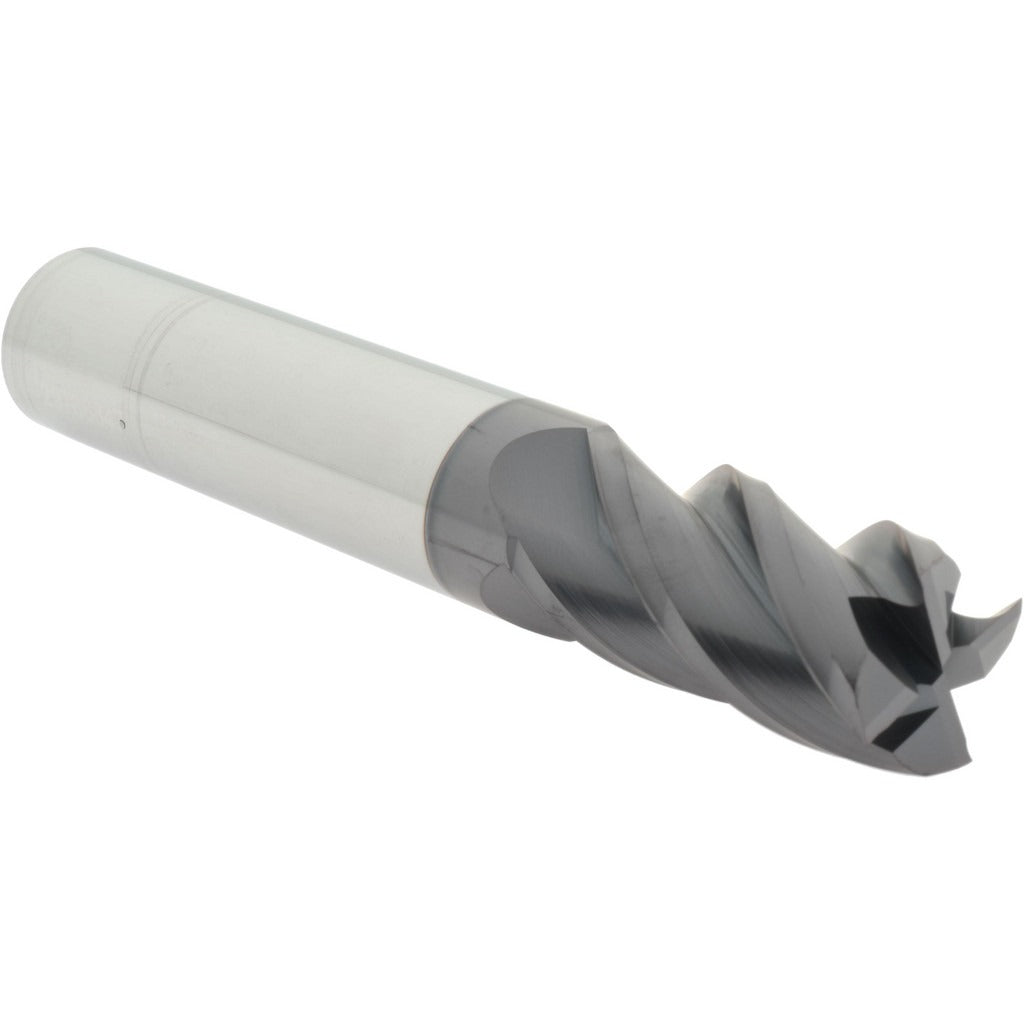

Accupro 14788568 Square End Mill 1 Inch 4 Flute Solid Carbide

Product Description

The ACCUPRO 14788568 is a 4-flute solid carbide square end mill designed for precision milling operations in metal, composites, and other hard materials. With a 1-inch mill diameter and a 2-inch length of cut, this end mill delivers aggressive material removal while maintaining tight dimensional tolerances. The centercutting geometry allows the tool to plunge directly into the workpiece, adding versatility to slotting, profiling, and pocketing operations. Solid carbide construction provides superior rigidity and heat resistance compared to high-speed steel, making it well-suited for demanding production environments.

This end mill is used in vertical and horizontal milling machines, CNC machining centers, and manual knee mills across job shops, tool rooms, and production facilities. The 1-inch shank diameter ensures a secure, concentric grip in standard end mill holders or collet chucks. The 6-inch overall length accommodates moderate reach requirements without sacrificing rigidity. Applications include face milling, shoulder milling, and full-slot cutting in ferrous and non-ferrous workpieces.

Key Features

• Centercutting design enables direct plunge entry into the workpiece
• 4-flute helical configuration for efficient chip evacuation and smooth surface finish
• Solid carbide construction for high rigidity and thermal resistance
• 1-inch mill diameter with a 2-inch length of cut for substantial material engagement
• Cylindrical shank compatible with standard end mill holders and collet systems
• No chipbreaker geometry for clean, continuous cuts on suitable materials

Compatibility

Designed as an OEM-style replacement end mill for use in standard 1-inch end mill holders and collet chucks on CNC and manual milling machines.

Installation Notes

Installation should be performed by a qualified machinist or toolroom technician. Before inserting the end mill, ensure the spindle is fully powered down and locked. Seat the cylindrical shank fully into the holder to the recommended gauge depth and torque the retention screw or collet nut per the toolholder manufacturer specifications. Inspect cutting edges for chips or damage before each use and replace if any defects are present.
