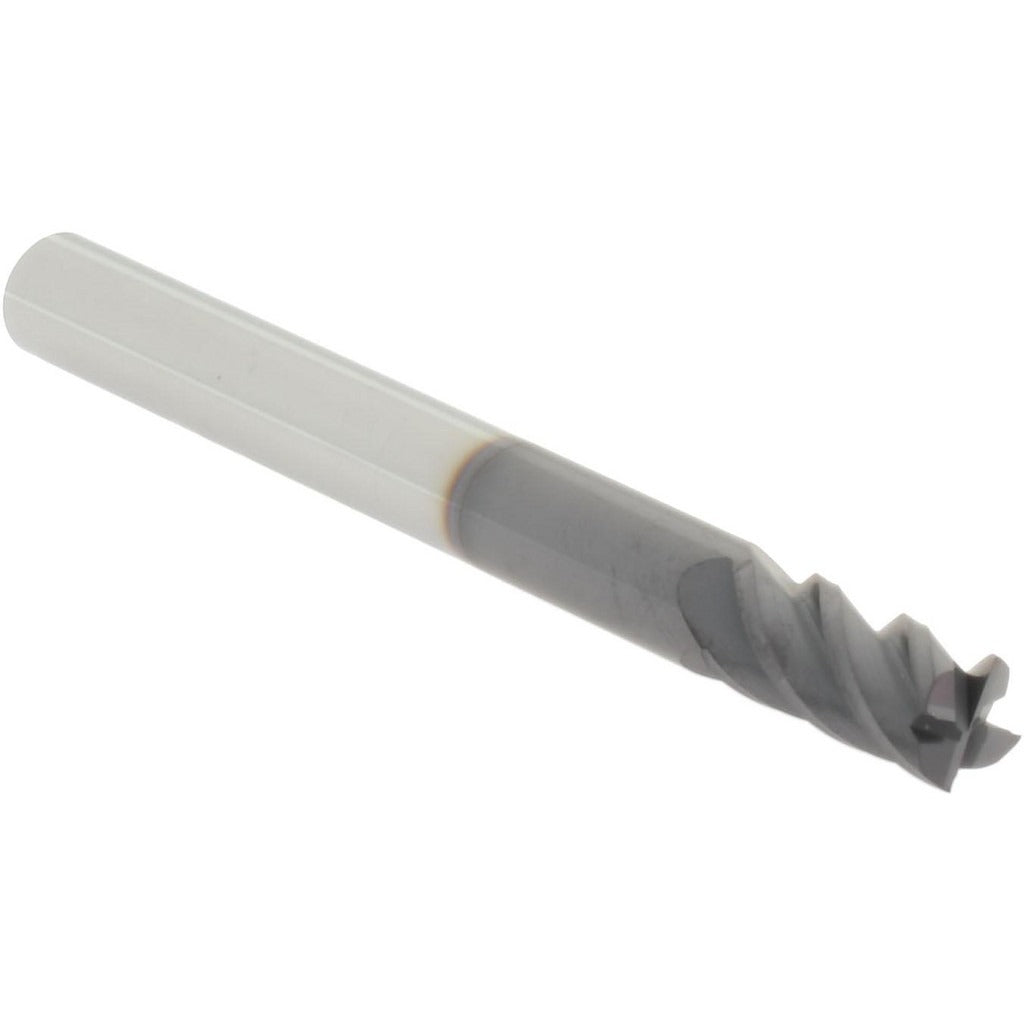

Accupro 14788518 Square End Mill 4 Flute Solid Carbide 6mm

Product Description

The ACCUPRO 14788518 is a 4-flute solid carbide square end mill designed for precision milling operations in metalworking and machining applications. With a 6 mm mill diameter and a 12 mm length of cut, this centercutting end mill can plunge directly into workpiece material, enabling slot milling, profiling, and pocketing in a single tool. The helical flute geometry promotes efficient chip evacuation and smooth cutting action. Solid carbide construction provides the rigidity and wear resistance required for high-speed cutting in ferrous and non-ferrous materials. This tool is installed by machinists and CNC operators working in production and job-shop environments.

This end mill suits light-duty to medium-duty milling on CNC machining centers, knee mills, and manual mills. The 6 mm cylindrical shank fits standard ER collet chucks and end mill holders with matching bore size. The 63 mm overall length and compact 12 mm cut length make it well suited for work in confined areas or shallow-pocket operations. No chipbreaker or extended-reach geometry is present, keeping the tool profile straightforward for general-purpose use.

Key Features

• Centercutting design allows direct plunge entry into material
• 4 helical flutes for balanced cutting forces and efficient chip removal
• Solid carbide construction for rigidity and extended tool life
• 6 mm cylindrical shank fits standard collet chucks and end mill holders
• 63 mm overall length with 12 mm length of cut for compact reach
• No chipbreaker geometry for straightforward general-purpose milling

Compatibility

Designed as an OEM-style replacement-grade solid carbide end mill suitable for use in any CNC or manual milling setup accepting a 6 mm cylindrical shank tool holder.

Installation Notes

Installation is performed by a qualified machinist or CNC operator. Ensure the spindle is fully stopped and the machine is powered down before changing tooling. Secure the shank fully within the collet or end mill holder to the recommended engagement depth per the tool holder manufacturer. Verify runout with a dial indicator before beginning a cutting operation to prevent premature tool wear or workpiece damage.
