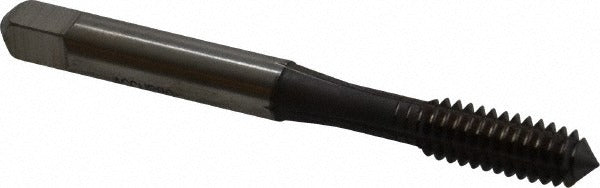

Accupro 12665-00C Thread Forming Tap 1/4-20 Unc Plug Ticn

Product Description

The ACCUPRO 12665-00C is a thread forming tap designed for producing 1/4-20 UNC internal threads in ductile and malleable materials without cutting chips. It uses a plug chamfer with 4 chamfered threads to gradually displace material and cold-form the thread profile. Manufactured from powdered metal high-speed steel for consistent grain structure and wear resistance, it carries a TiCN coating to reduce friction and extend tool life in production tapping operations. The overall length is 2.5 inches with a tapping depth capacity of 1.0 inch, making it well suited for through-hole applications in moderate-depth workpieces. Machinists and tool-and-die professionals are the primary users of this tap.

This tap is intended for through-hole threading in ferrous and non-ferrous metals, as well as plastics and other materials that respond well to thread forming rather than thread cutting. The plug chamfer makes it appropriate for through-holes where the tap can advance freely past the full thread depth. Class of fit is 3B with a thread limit of H5, providing the proper tolerance for standard UNC fastener engagement. It is used in CNC machining centers, drill presses, and manual tapping applications where a right-hand thread is required at the 1/4-20 UNC specification.

Key Features

• 1/4-20 UNC thread size with plug chamfer and 4 chamfered threads for progressive thread forming
• Powdered metal high-speed steel construction for uniform hardness and improved wear resistance
• TiCN coating reduces friction and extends service life in repetitive tapping cycles
• Class 3B fit with H5 thread limit for precise tolerance control
• Through-hole application with 1.0 inch tapping depth capacity
• Right-hand thread direction with a 0.255 inch shank diameter and 0.191 inch square drive size

Compatibility

Designed as a direct-fit thread forming tap for 1/4-20 UNC through-hole threading operations in standard machining and production tapping setups requiring a Class 3B, H5 thread limit specification.

Installation Notes

Thread forming taps should be installed by qualified machinists familiar with tapping speeds, feeds, and lubricant requirements for the workpiece material. Always use a thread forming-rated cutting fluid or tapping compound appropriate to the material being tapped. Secure the workpiece firmly and confirm the tap is properly aligned before engaging to avoid tap breakage. Power down or disengage the spindle before changing or inspecting taps.
