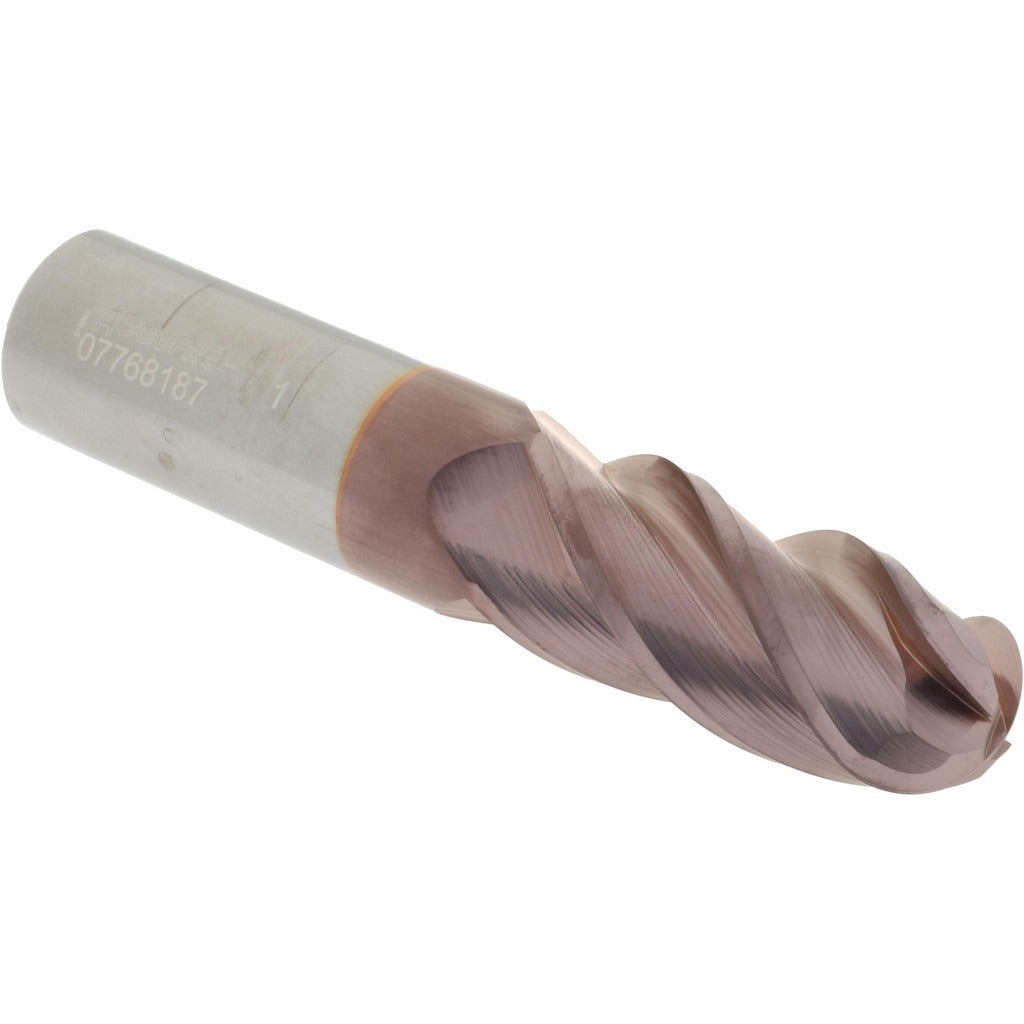

Accupro 12184860 Ball End Mill 1 in 4 Flute Carbide Ticn

Product Description

The ACCUPRO 12184860 is a solid carbide ball end mill designed for high-performance milling in ferrous and non-ferrous materials. This single-end tool features a 1 inch cutting diameter, a 2.25 inch length of cut, and a 4-flute spiral geometry with a 40-degree helix angle. The micrograin carbide substrate provides the hardness and toughness needed for demanding milling operations. A TiCN (Titanium Carbonitride) coating reduces friction and increases surface hardness, extending tool life in abrasive materials. The 1 inch shank diameter and 5 inch overall length make this a long-length configuration suited to deeper-reach applications.

This ball end mill is used in CNC machining centers and manual mills for 3D contouring, profiling, and finish milling operations. The ball-nose geometry produces smooth, curved surfaces in mold making, die work, and complex part profiles. The long-length configuration is well suited to deep-pocket and stepped-surface work where standard-length tools cannot reach. Right-hand cutting and right-hand flute direction are standard for conventional CNC spindle rotation.

Key Features

• 1 inch cutting diameter with ball-nose geometry for 3D contouring and profiling
• 4-flute spiral design with 40-degree helix angle for efficient chip evacuation and smooth finishes
• TiCN coating increases surface hardness and reduces friction for extended tool life in abrasive materials
• Micrograin solid carbide substrate delivers rigidity and wear resistance
• Long-length configuration with 2.25 inch length of cut and 5 inch overall length for deep-reach applications
• Single-end, right-hand cut with right-hand flute direction for standard CNC spindle compatibility

Compatibility

Designed as a direct-fit replacement or new-installation tool for CNC machining centers and manual mills accepting a 1 inch straight shank. Suitable for use in standard ER, hydraulic, shrink-fit, and Weldon-flat toolholders sized for a 1 inch shank diameter.

Installation Notes

Installation is performed by machinists and CNC tool-setup technicians. Ensure the spindle is fully stopped and the machine is in a safe state before changing tooling. Clean the toolholder bore and shank before seating to achieve proper runout and holding force. Follow the toolholder manufacturer torque guidelines for the specific holder type; verify runout with a dial indicator after seating before beginning a cut.
