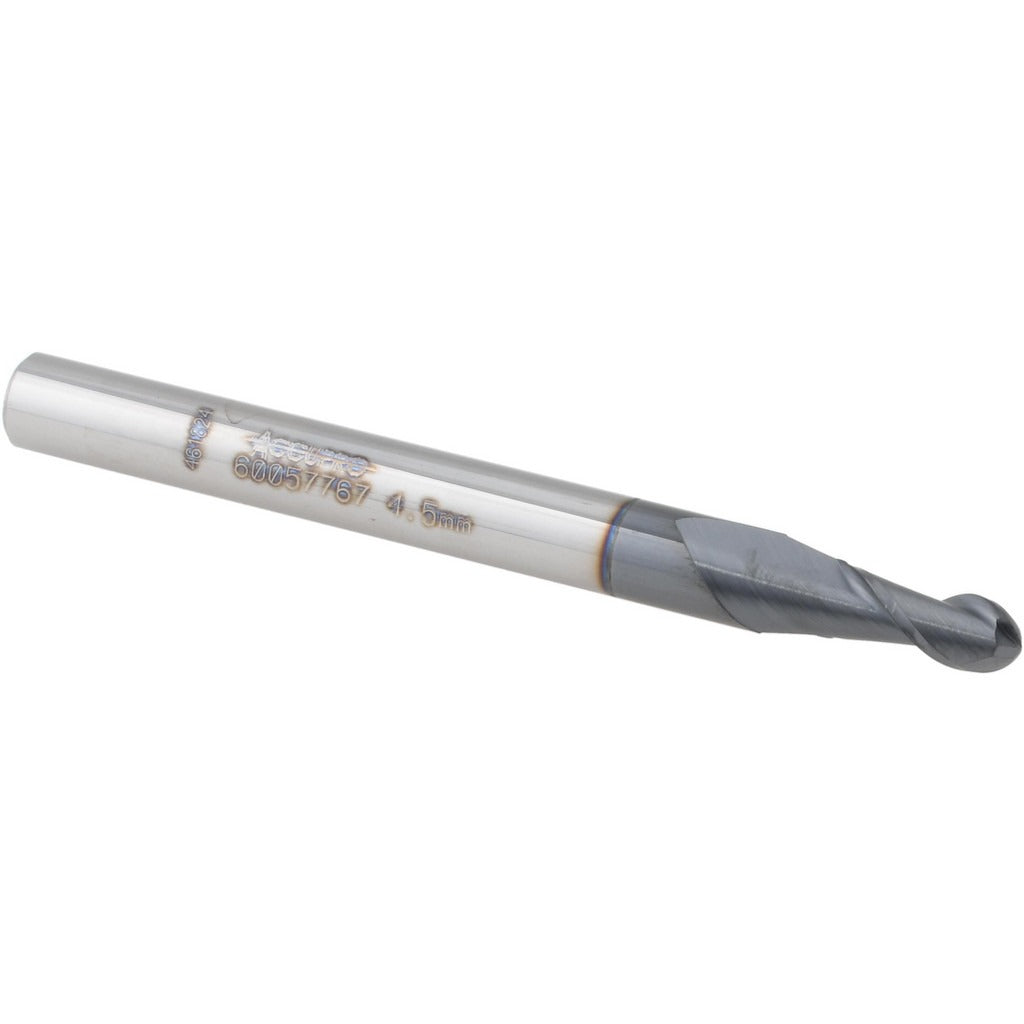

Accupro 12184105 Ball End Mill 4.50mm 2 Flute Carbide

Product Description

The ACCUPRO 12184105 is a single-end ball end mill designed for precision milling operations in metalworking and machining environments. Built from micrograin solid carbide, it delivers the rigidity and edge retention needed for demanding cuts in ferrous and non-ferrous materials. The tool features a 4.50 mm cutting diameter, a 9.50 mm length of cut, and a 40-degree helix angle that promotes efficient chip evacuation and smooth cutting action. An AlTiN coating adds thermal and oxidation resistance, extending tool life in high-speed and dry-cutting applications. This end mill is installed and operated by machinists and CNC tooling professionals in shop and production environments.

This end mill is suited for profiling, contouring, and slotting operations on machined components. The stub-length configuration provides added rigidity, making it a practical choice for applications where tool deflection must be minimized. The 6.00 mm shank diameter fits standard collets and end mill holders used in CNC machining centers and manual mills. Right-hand cutting and right-hand flute direction are standard for conventional and climb milling setups.

Key Features

• Micrograin solid carbide construction for superior hardness and edge retention
• AlTiN coating provides thermal resistance for high-speed and dry-cutting applications
• 40-degree helix angle promotes efficient chip evacuation
• Stub-length design increases rigidity and reduces deflection
• Single-end, right-hand cut configuration for standard milling setups
• 2-flute geometry suited for slotting and profiling in a range of materials

Compatibility

Designed for use with standard 6.00 mm collets and end mill holders on CNC machining centers and manual milling machines.

Installation Notes

Installation and operation should be performed by qualified machinists familiar with CNC or manual milling equipment. Ensure the spindle is fully stopped and the machine is in a safe, locked-out state before changing tooling. Seat the shank fully and evenly in the collet or tool holder and torque the retention mechanism per the holder manufacturer specifications. Verify runout with a dial indicator before beginning a production cut to avoid premature tool wear or workpiece damage.
