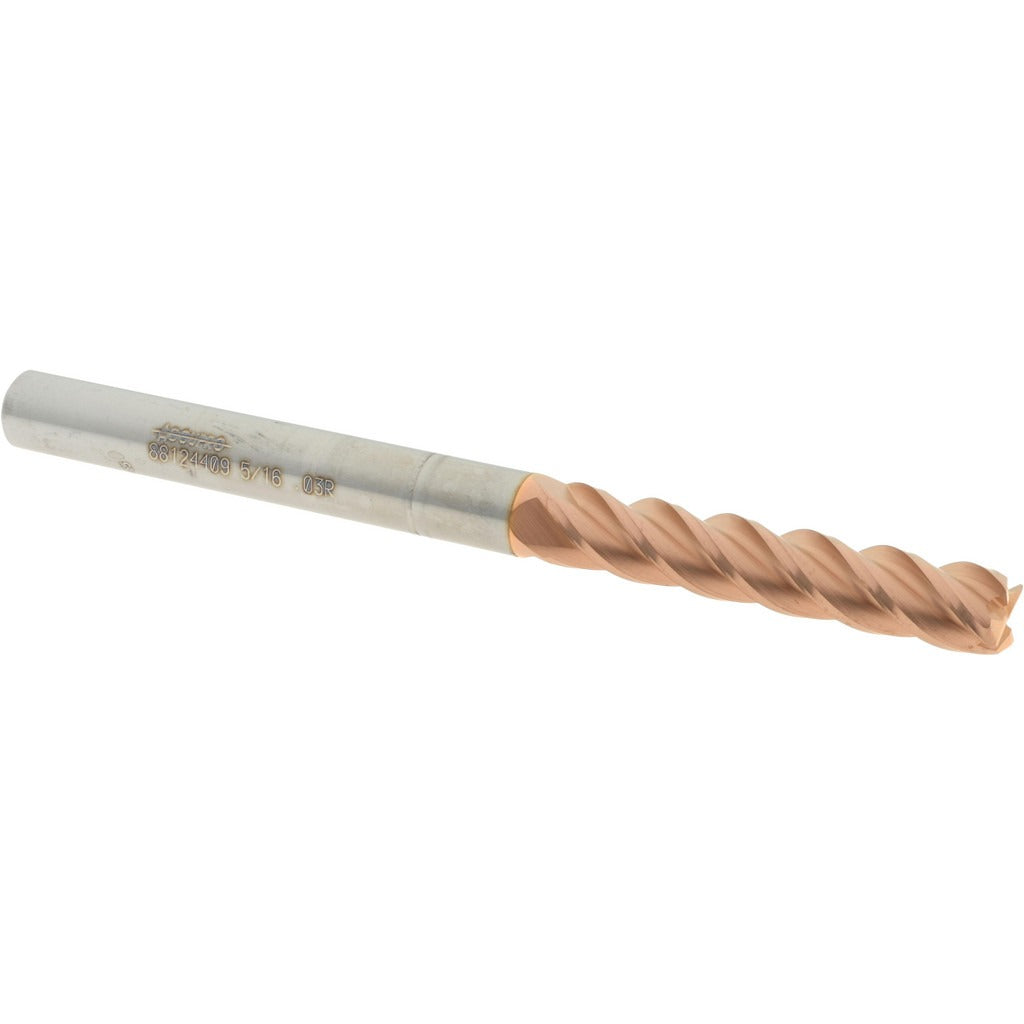

Accupro 12183263 Corner Radius End Mill 5/16in 4 Flute Ticn

Product Description

The ACCUPRO 12183263 is a solid carbide corner radius end mill designed for precision milling operations in ferrous and hard materials. It features a 5/16-inch diameter with a 0.03-inch corner radius, four right-hand spiral flutes, and a 40-degree helix angle that promotes aggressive chip evacuation and smooth cutting action. The micrograin carbide substrate is coated with TiCN (Titanium Carbonitride), which extends tool life in abrasive and high-temperature applications. The centercutting design allows plunge entry. This end mill is typically installed by machinist tradespeople and CNC operators working in job shops, tool rooms, and production machining environments.

This end mill is suited for profiling, slotting, and finishing passes in ferrous metals, stainless steels, and cast iron where a corner radius is required to reduce stress concentration and improve surface finish at part edges. The extra-long 4-inch overall length allows access to deep pockets and tall workpiece features that standard-length tools cannot reach. Single-end configuration means the cutting geometry is on one end only, with a 5/16-inch straight shank for collet or end mill holder retention. Right-hand cutting direction is standard for conventional CNC and manual milling machine setups.

Key Features

• Solid micrograin carbide substrate for rigidity and wear resistance in hard materials
• TiCN coating extends tool life in abrasive and elevated-temperature cutting conditions
• 0.03-inch corner radius reduces edge chipping and stress concentration on finished parts
• 40-degree helix angle promotes efficient chip evacuation in deep slots and pockets
• Extra-long 4-inch OAL with 1.75-inch length of cut for deep-reach applications
• Centercutting design permits direct plunge entry without pre-drilling

Compatibility

Designed as an OEM-style solid carbide corner radius end mill suitable for use in standard collet chucks, end mill holders, and shrink-fit holders accepting a 5/16-inch shank diameter.

Installation Notes

Installation is performed by a qualified machinist or CNC operator. Ensure the machine spindle is fully stopped and locked before tool changes. Secure the shank to the full recommended engagement depth in the holder to minimize runout and prevent pullout during cutting. Verify that holder runout is within acceptable limits before beginning a cut, as excess runout will reduce tool life and surface finish quality.
