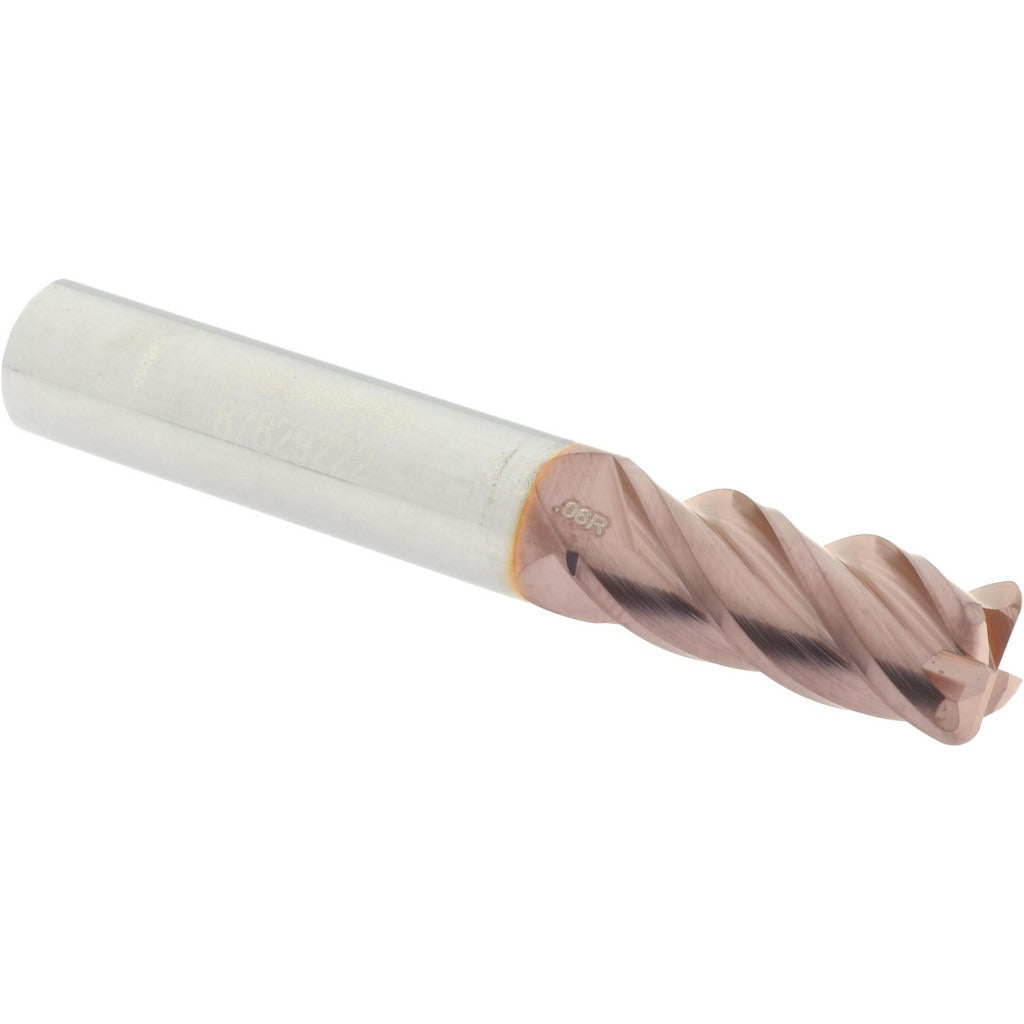

Accupro 12182545 Corner Radius End Mill 3/8 in 4 Flute

Product Description

The ACCUPRO 12182545 is a solid carbide corner radius end mill designed for precision milling operations in metalworking and machining applications. It features a 3/8 inch mill diameter, a 0.06 inch corner radius, and four right-hand spiral flutes with a 40-degree helix angle. The cutting edges are coated with TiCN (Titanium Carbonitride), which increases surface hardness and heat resistance compared to uncoated carbide. The micrograin carbide substrate supports high cutting speeds and maintains edge integrity on ferrous and non-ferrous materials. This tool is installed by machinists and CNC operators in production and job-shop environments.

This end mill is suited for peripheral and slot milling operations where a controlled corner radius is required to reduce stress concentrations in workpiece corners. The centercutting geometry allows for plunge entry as well as conventional end milling passes. With a 7/8 inch length of cut and 2-1/2 inch overall length, it fits standard tool holders used on CNC machining centers and manual knee mills. The single-end configuration and right-hand cutting direction make it compatible with standard right-hand spindle setups.

Key Features

• 0.06 inch corner radius reduces stress risers in milled pockets and slots
• TiCN coating improves wear resistance and tool life on hard and abrasive materials
• 40-degree helix angle promotes smooth chip evacuation and reduces cutting forces
• Centercutting design permits direct plunge entry without a pre-drilled hole
• Micrograin solid carbide substrate maintains dimensional accuracy at elevated cutting speeds
• Right-hand flute direction and cutting direction for use in standard spindle configurations

Compatibility

Designed as a standard 3/8 inch shank end mill for use in collet chucks, end mill holders, and shrink-fit tooling systems on CNC machining centers and manual milling machines accepting 3/8 inch shank tooling.

Installation Notes

Installation is performed by qualified machinists following shop safety procedures. Ensure the spindle is fully stopped and the machine is in a safe state before loading or changing tooling. Verify collet or holder bore size matches the 3/8 inch shank diameter and torque the retention mechanism to the tool holder manufacturer's specification. Confirm runout with a dial indicator after tool installation before beginning a cutting program.
