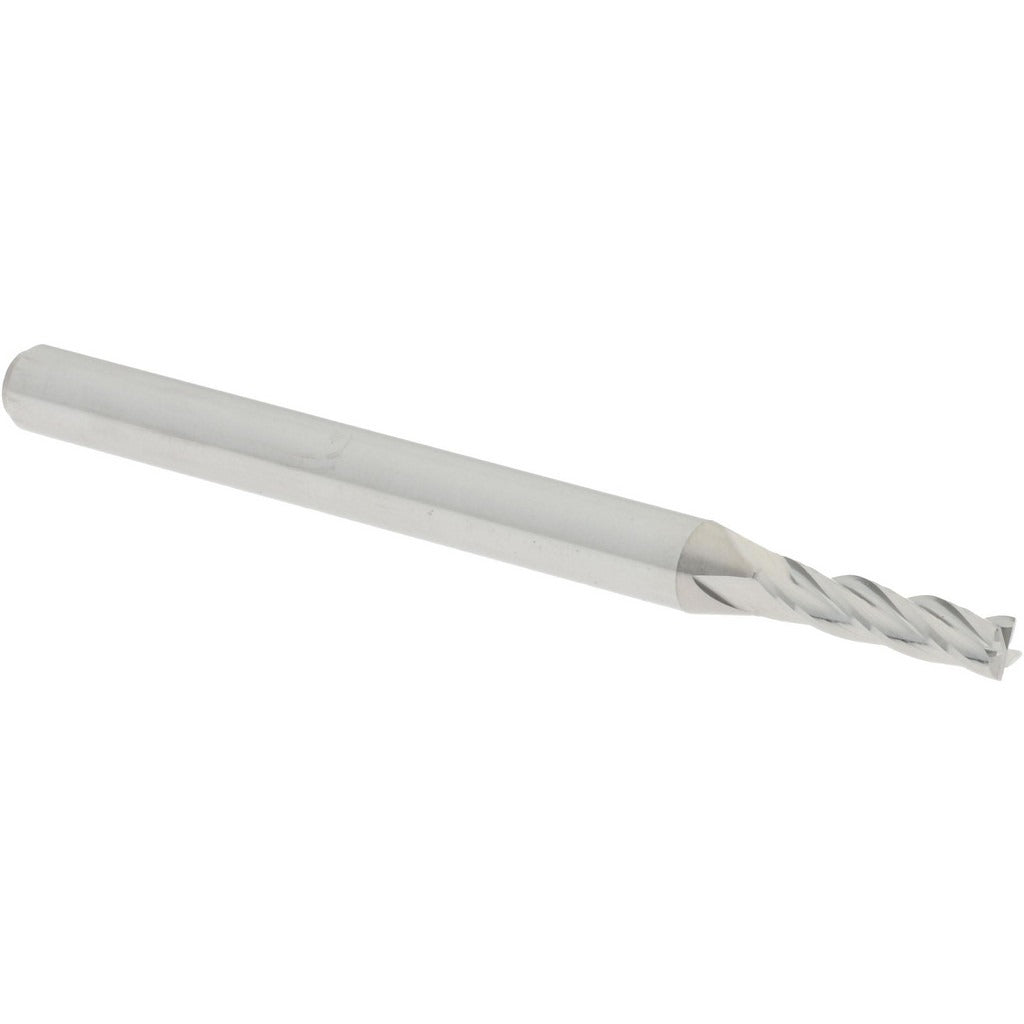

Accupro 12182337 Square End Mill 0.0787 in 4 Flute Carbide

Product Description

The ACCUPRO 12182337 is a solid carbide square end mill designed for precision milling in metalworking and machining applications. With a 0.0787-inch (2.00 mm) cutting diameter and a length of cut of 0.315 inches (8.00 mm), this tool is built for tight-tolerance work where dimensional accuracy matters. The 4-flute, 30-degree helix spiral configuration promotes efficient chip evacuation and smooth surface finishes. Micrograin carbide construction delivers the hardness and wear resistance required for consistent performance across production runs. This is a right-hand cut, right-hand flute, centercutting tool in a regular-length configuration, suitable for full-slot and plunge operations.

This end mill is suited for use in CNC machining centers and manual milling machines handling ferrous and non-ferrous materials. The 0.0787-inch diameter makes it appropriate for fine-feature work such as small pockets, slots, and contours in mold-making, die work, and precision part production. The 3.00 mm shank diameter and 38.00 mm overall length fit standard collet and tool-holder setups used in light-duty production and prototype machining environments. The uncoated finish is compatible with a broad range of base materials and cutting fluid systems.

Key Features

• Solid micrograin carbide construction for hardness and edge retention
• 4-flute, 30-degree helix spiral flute for efficient chip flow and surface finish
• Centercutting design enables direct plunge entry into workpiece material
• Right-hand cut and right-hand flute orientation for standard spindle use
• Uncoated finish suitable for use with a wide range of cutting fluids and workpiece materials
• Mill diameter tolerance of +0.000 / -0.002 inches for close-tolerance fitment

Compatibility

Designed as an OEM-style replacement or standard tooling option for CNC and manual milling setups accepting a 3.00 mm shank diameter in standard collet or tool-holder systems.

Installation Notes

Installation should be performed by a qualified machinist or tooling technician. Ensure the spindle is fully stopped and the machine is locked out before changing tooling. Verify collet size matches the 3.00 mm shank diameter and torque the collet nut to the tool-holder specification. Confirm runout is within acceptable limits before beginning a cut to avoid premature edge wear or tool breakage on this small-diameter end mill.
