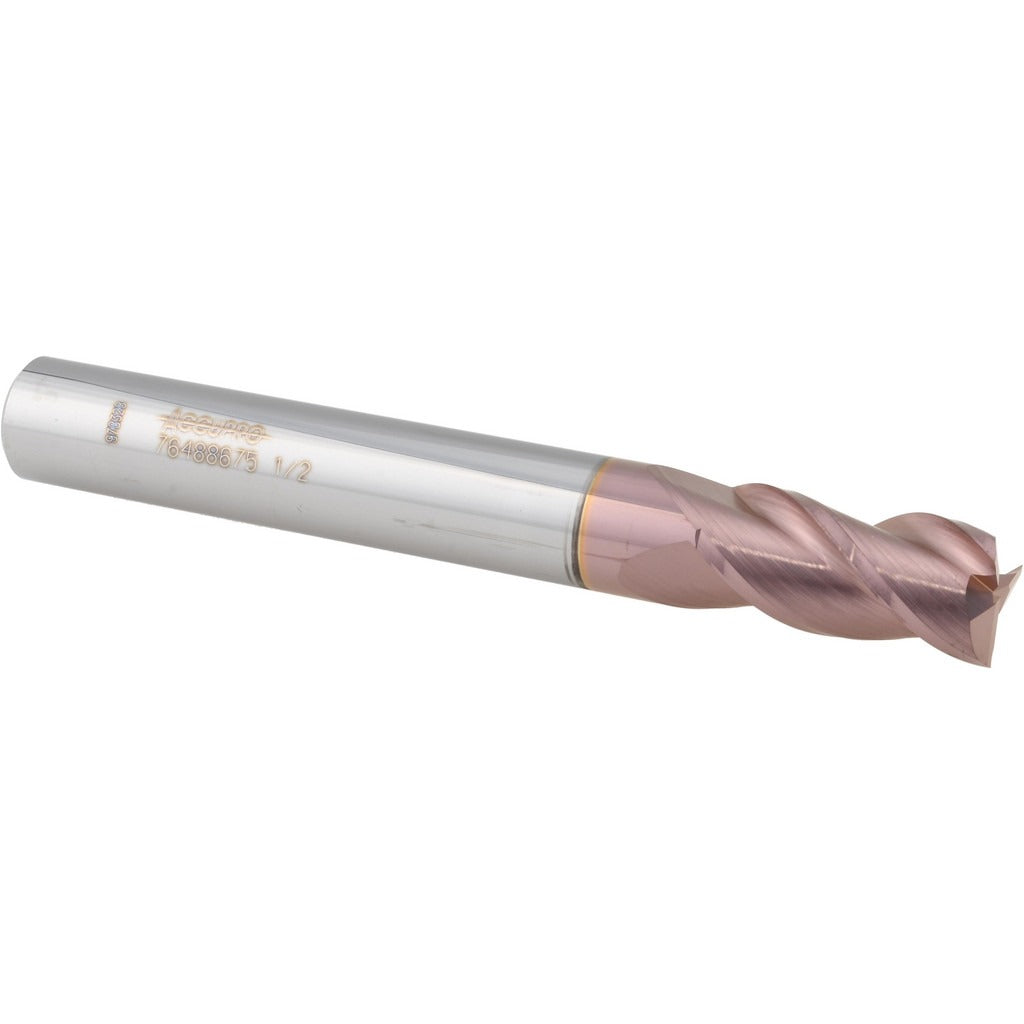

Accupro 12182290 Square End Mill 0.5 in 3 Flute Solid Carbide

Product Description

The ACCUPRO 12182290 is a solid carbide square end mill designed for precision material removal in demanding machining applications. With a 0.5 inch cutting diameter, 1 inch length of cut, and a 4 inch overall length, this is a long-length configuration suited to deeper reach operations. The micrograin solid carbide substrate delivers hardness and wear resistance at elevated cutting speeds. A titanium carbonitride (TiCN) coating reduces friction and extends tool life in ferrous and non-ferrous materials. Three spiral flutes with a 40-degree helix angle promote efficient chip evacuation and a smooth cutting action.

This end mill fits standard milling operations on vertical machining centers, CNC mills, and manual knee mills. Its centercutting geometry allows plunge entry, making it suitable for slot milling, profiling, and pocket operations where a direct plunge start is required. The long-length designation provides added reach for deeper cavities while maintaining the rigidity of a solid carbide construction. The 0.5 inch shank fits standard ER and end mill holders designed for that bore size.

Key Features

• Solid carbide micrograin substrate for high hardness and wear resistance
• TiCN coating reduces friction and extends tool life in a range of materials
• 40-degree helix angle promotes aggressive chip evacuation
• Centercutting design allows direct plunge entry
• Right-hand cut and right-hand flute, standard configuration for most CNC and manual mills
• Long-length at 4 inches OAL for added reach in deeper cavity work

Compatibility

Designed as a direct-fit replacement for 0.5 inch bore end mill holders accepting a 0.5 inch shank, including ER32 collet chucks, side-lock holders, and shrink-fit holders machined to that diameter.

Installation Notes

Installation should be performed by a qualified machinist or tooling technician. Ensure the machine spindle is fully stopped and locked out before changing tooling. Seat the shank to the recommended minimum engagement depth for the holder type in use. Verify runout with a dial indicator after installation before beginning the cut, as excessive runout accelerates wear and degrades surface finish.
