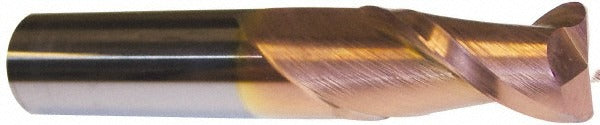

Accupro 12181508 Corner Radius End Mill 5/8 in Carbide

Product Description

The ACCUPRO 12181508 is a solid carbide corner radius end mill designed for precision milling operations where a controlled edge radius and sharp cutting performance are required. It features a 5/8 inch cutting diameter, a 1-1/4 inch length of cut, and a 0.03 inch corner radius that reduces edge chipping and extends tool life on hardened or abrasive workpieces. The 40-degree helix angle promotes efficient chip evacuation and smooth cutting action. A TiCN coating adds surface hardness and thermal resistance, making this tool well suited for ferrous and non-ferrous materials. It is sold as a single-end, centercutting tool for use in CNC machining centers and manual mills.

This end mill is used in precision machining environments including job shops, tool and die, mold making, and production manufacturing. The centercutting geometry allows plunge milling as well as conventional peripheral and slot milling. The right-hand flute direction and right-hand cutting orientation are standard for the majority of CNC vertical machining center setups. The 5/8 inch shank diameter fits directly into standard ER or end mill holders without adapters in most setups.

Key Features

• 0.03 inch corner radius reduces edge stress and chipping on profiled cuts
• TiCN coating increases surface hardness and wear resistance for longer tool life
• 40-degree helix angle promotes aggressive chip evacuation and reduced cutting forces
• Centercutting design enables direct plunge entry into workpiece material
• Micrograin solid carbide substrate delivers rigidity and dimensional stability
• Right-hand cut, right-hand spiral flute configuration compatible with standard CNC spindle rotation

Compatibility

Designed as an OEM-style solid carbide corner radius end mill for use in standard 5/8 inch end mill holders and collet chucks on CNC and manual milling machines.

Installation Notes

Installation should be performed by a qualified machinist or CNC setup technician. Ensure the machine spindle is fully stopped and the tool holder is clean and free of debris before seating the shank. Torque the retention screw or collet nut to the tool holder manufacturer specification. Verify runout with a dial indicator before beginning a production cut.
