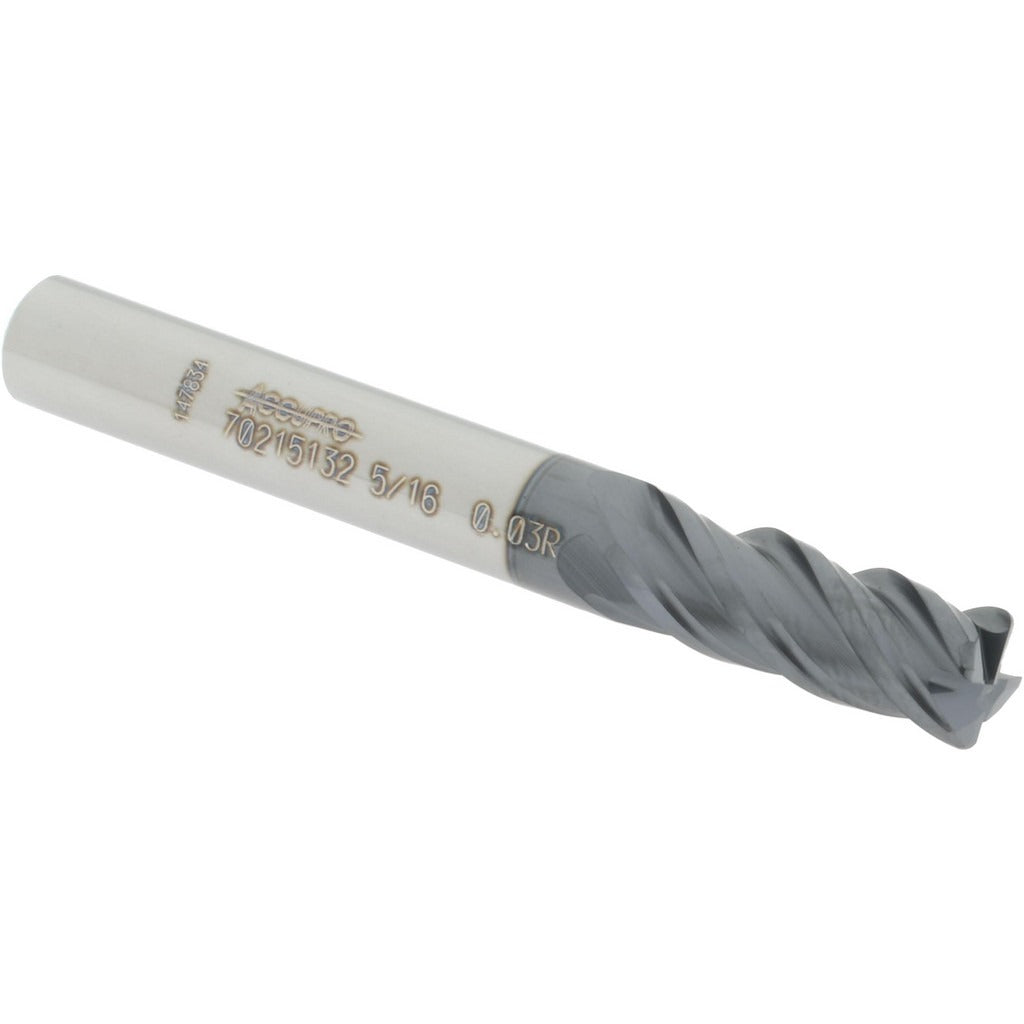

Accupro 12180592 Corner Radius End Mill 5/16 in 4 Flute Altin

Product Description

The ACCUPRO 12180592 is a solid carbide corner radius end mill designed for precision milling in ferrous and non-ferrous materials. The 5/16-inch diameter cutter features a 0.03-inch corner radius that reduces stress concentrations at workpiece corners and extends tool life in demanding applications. With a 4-flute spiral configuration, a 40-degree helix angle, and an AlTiN coating, it handles high-temperature cutting environments effectively. The micrograin carbide substrate supports sharp edges and dimensional stability. Machinists and CNC operators install this tool in vertical and horizontal machining centers for finishing and semi-finishing passes requiring tight corner geometry.

This end mill is suited for milling operations in job shops, tool-and-die, and production machining environments. It performs well in hardened steels, stainless steel, cast iron, and high-temperature alloys where AlTiN coating provides thermal resistance. The centercutting geometry allows plunge entry as well as conventional peripheral and slot milling. With a 3/4-inch length of cut and a 2-1/2-inch overall length, it fits standard toolholding setups with a 5/16-inch bore. Right-hand flute direction and right-hand cutting direction are standard for conventional CNC spindle rotation.

Key Features

• 0.03-inch corner radius reduces chipping and stress at workpiece edges
• AlTiN coating provides oxidation and heat resistance for extended tool life in high-temp alloys
• Micrograin solid carbide substrate supports precise edge geometry and rigidity
• 4-flute spiral design with 40-degree helix angle for efficient chip evacuation
• Centercutting geometry enables direct plunge entry without pre-drilling
• Variable index flute spacing reduces harmonic chatter during cutting

Compatibility

Designed for use in CNC machining centers and manual mills equipped with 5/16-inch toolholders, collets, or end mill holders accepting a 5/16-inch shank diameter.

Installation Notes

Installation is performed by a machinist or CNC operator. Ensure the spindle is fully stopped and the machine is in a safe, locked-out state before loading or changing tooling. Seat the shank fully in the collet or holder to the recommended grip depth and torque the retention mechanism to the toolholder manufacturer specification. Inspect the cutting edges and coating for chips or wear before each use; do not run damaged carbide tooling at speed.
