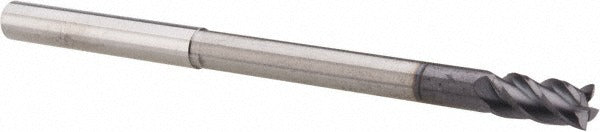

Accupro 12177141 Square End Mill 1/4 in 4 Flute Altin Carbide

Product Description

The ACCUPRO 12177141 is a solid carbide square end mill designed for precision milling operations in ferrous and non-ferrous materials. It features a 0.25 inch mill diameter, a 0.5 inch length of cut, and a 4 inch overall length. The AlTiN coating provides elevated heat and wear resistance, making this end mill well suited for high-speed and dry cutting applications. The 40-degree helix angle promotes efficient chip evacuation and reduces cutting forces. Micrograin carbide construction delivers rigidity and edge retention in demanding machining environments. Installed by machinists and toolroom technicians in CNC and manual milling setups.

This end mill is used in vertical and horizontal milling applications where a square shoulder profile is required. The centercutting geometry allows plunge cuts as well as conventional side milling. The extended reach design, with a 2.5 inch reach length, accommodates deeper pocket and slot work where standard-reach tooling cannot reach the workpiece floor. Suitable for production and job-shop environments machining steel, stainless steel, cast iron, and similar materials at elevated cutting speeds.

Key Features

• Solid micrograin carbide construction for rigidity and long tool life
• AlTiN finish for high-temperature and wear resistance in ferrous machining
• 40-degree helix angle promotes aggressive chip evacuation
• Centercutting geometry allows plunge entry without a pilot hole
• Extended reach with 2.5 inch reach length for deep pocket access
• Right-hand cut and right-hand spiral flute configuration

Compatibility

Designed as a standard 0.25 inch shank square end mill compatible with 1/4 inch collets and ER-style toolholders used in CNC machining centers and manual milling machines.

Installation Notes

Installation is performed by a qualified machinist or toolroom technician. Secure the shank fully within the collet or toolholder to the recommended grip depth and torque the retention nut per the toolholder manufacturer specification. Verify runout with a dial indicator before beginning a cut. Do not exceed the tool manufacturer recommended depth of cut or feed rate for the workpiece material and coating type.
