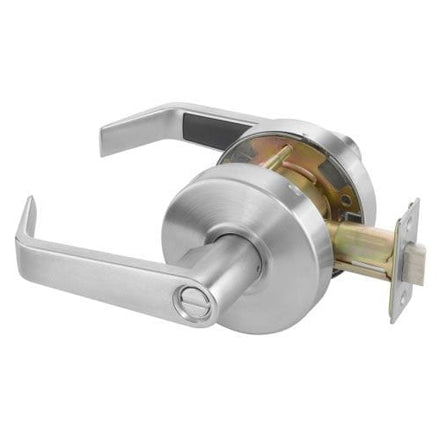

Accentra AU4602LN AU Privacy Lever Lock 497

Product Description

The Accentra AU4602LN, formerly Yale, is an ANSI/BHMA Grade 2 certified cylindrical lock with a privacy function and Augusta lever design. Certified to ANSI/BHMA Grade 2 standards and UL fire-listed, it ensures reliability. Features ANSI Function F76 for keyless push-button locking and easy egress.

• Field reversible handing for flexibility in commercial applications
• Priced affordably for projects of all budgets
• ANSI/BHMA Grade 2 certified for long life and reliability

Product Highlights

This Accentra privacy lever lock offers quality security and is suitable for medium-duty usage.

Product Information

Standard Information

• Brand: ACCENTRA
• Manufacturer Part Number: AU4602LN-626-497
• Country of Origin: United States

Technical Specifications

• Brand: Accentra (Formerly Yale)
• Lock Function: Privacy

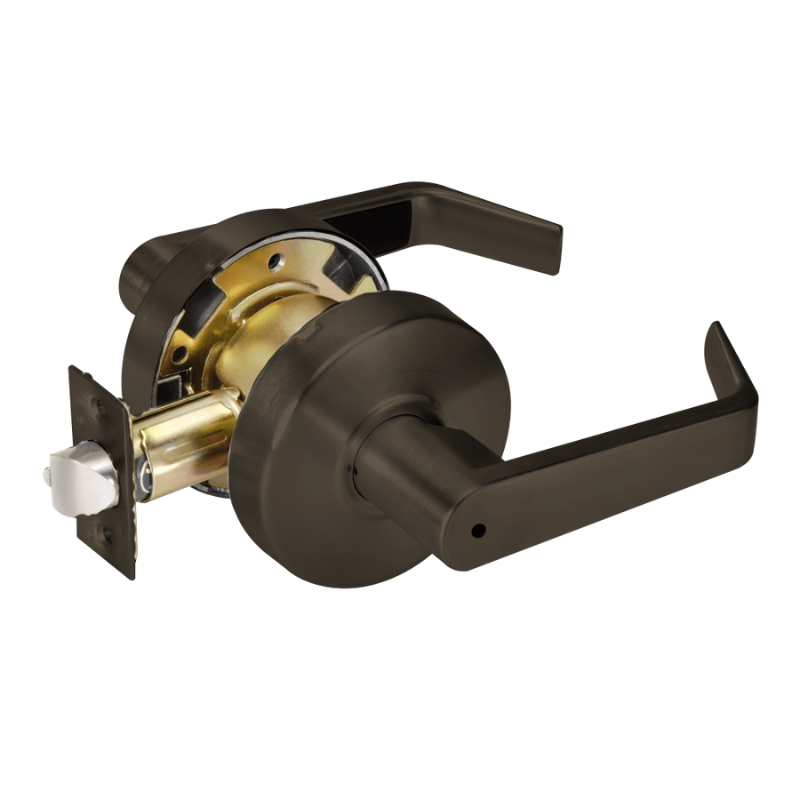

• Finishes: 626 Satin Chrome, 605 Bright Brass, 606 Satin Brass, 613 Oil Rubbed Bronze, 625 Bright Chrome, BSP - Black Suede Powder Coat
• ANSI/BHMA Standard: Meets or exceeds requirements of BHMA/ANSI A156.2 Series 4000, Grade 2
• Backset: 2-3/4"
• Strike: 4-7/8” x 1-1/4” ASA/ANSI strike with curved lip to meet ANSI A115.2 door frame preparation
• Handing: Non-Handed
• Lever Design: AU (Augusta)
• Door Thickness: 1-3/8" to 1-3/4"
• Fire-Rating: UL-cUL fire rated up to 3 hours
• ADA Compliance: Meets ADA requirements - A117.1 Accessibility Code
• Usage: Medium Duty
• Latch: 1/2" throw - 1-1/8" x 2-1/4" face
• Manufacturer: Accentra
• SKU: AU4602LN
• Grade: Grade 2
• Installation: Commercial
• Origin: United States
• Base Material: Brass, Bronze
• UL Listing Type: ANSI A156.2, Series 4000, Grade 2, UL Listed
• ANSI Number: F76A
• Fire Rated: 3 Hours {A}
• Burglar Rated: No
• Function Family: Privacy
• ANSI Function: F76A - Privacy
• Lever/Knob Design Family: Straight Return Lever
• Rose/Escutcheon Design: 3-3/8" Rose Diameter
• Rose/Escutcheon Dimensions: 3-3/8"
• Cylinder Type: Non-Keyed
• Std. Latch Number: MCP234
• Std. Latch Type: Spring latch
• Std. Latch Backset Dim: 2-3/4"
• Latch Bore Diameter: 7/8"
• Lock Face Size: 1-1/8" x 2-1/4"
• Bolt Projection: 1/2"
• Bore Hole Diameter: 2-1/8"
• Std. Strike Number: 497
• Std. Strike Type: ANSI Strike
• Std. Strike Height: 4-7/8"
• Std. Strike Width: 1-1/4"
• Screws: Wood/Machine Screws
• Product Type: Cylindrical Lock
