Accentra AU4601LN Passage Lever Set 497

Product Description

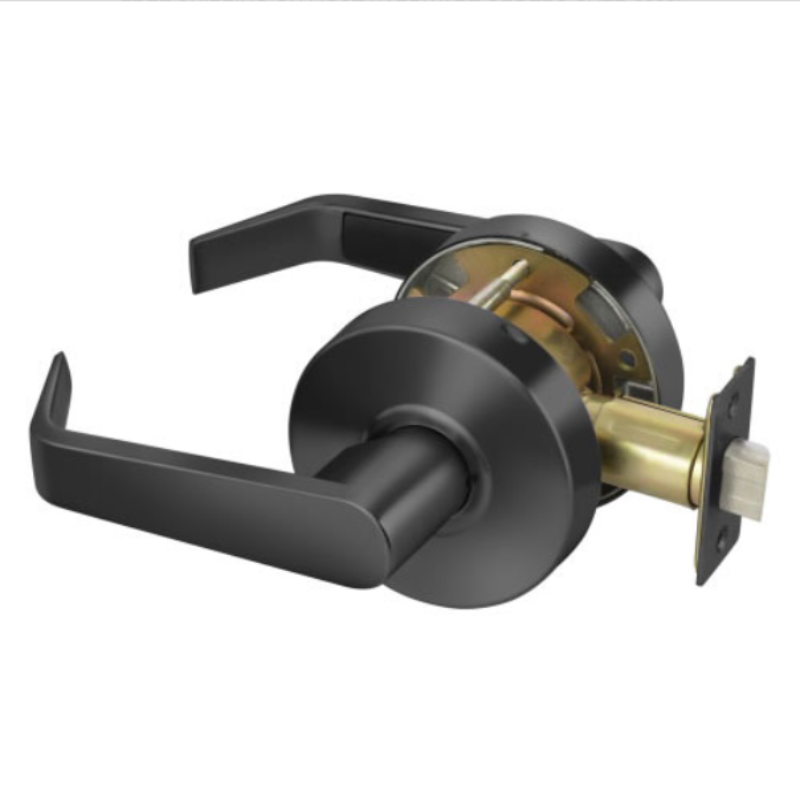

The Accentra AU4601LN is an ANSI/BHMA Grade 2 certified cylindrical lock with a passage function and Augusta lever. Certified to ANSI/BHMA Grade 2 standards and UL fire-listed for all functions, this lock ensures reliability. It features an ANSI Function F75, meaning it is keyless and the latch bolt is operated by levers at all times.

• Field reversible handing
• Priced affordably to suit projects of all budgets
• ANSI/BHMA Grade 2 certified for long life and reliability

Product Highlights

This passage lever set is ideal for commercial applications requiring consistent quality, ease of use, and installation at an economic price.

Product Information

Standard Information

• Brand: ACCENTRA
• Manufacturer Part Number: AU4601LN-626-497
• Country of Origin: United States

Technical Specifications

• Brand: Accentra (Formerly Yale)
• Lock Function: Passage
• ANSI/BHMA Standard: Meets or exceeds requirements of BHMA/ANSI A156.2 Series 4000, Grade 2
• Backset: 2-3/4"
• Strike: 4-7/8” x 1-1/4” ASA/ANSI strike with curved lip to meet ANSI A115.2 door frame preparation
• Handing: Non-Handed
• Lever Design: AU (Augusta)
• Door Thickness: 1-3/8" to 1-3/4"
• Fire-Rating: UL-cUL fire rated up to 3 hours
• ADA Compliance: Meets ADA requirements - A117.1 Accessibility Code
• Usage: Medium Duty
• Latch: 1/2" throw - 1-1/8" x 2-1/4" face
• Lever Material: Cast Zinc
• Rose Material: Wrought Brass
• Mechanism Material: Heavy-gauge steel, zinc plated, dichromated
• Collection / Series: Accentra 4600 Series
• Lock Type: Lever
• Lever / Knob Style: Augusta Lever (AU)
• Latch Throw: 1/2" Latch
• Faceplate: Square Corners
• Mount Type: Cylindrical
• Grade: Grade 2
• Cross Bore: 2-1/8" Cross Bore
• Compliance Details: ADA Compliant, BHMA Certified, Windstorm Resistant, UL/cUL - listed for 3 hour fire doors
• ANSI Designation: A156.115 Door Prep
• Manufacturer: Accentra
• SKU: AU4601LN
• Installation: Commercial
• Origin: United States
• Base Material: Brass, Bronze
• UL Listing Type: ANSI A156.2, Series 4000, Grade 2, UL Listed
• ANSI Number: F75
• Fire Rated: 3 Hours {A}
• Burglar Rated: No
• Function: 01 Passage
• Function Family: Passage
• ANSI Function: F75 - Passage
• Lever/Knob Design: AU Augusta Lever
• Lever/Knob Design Family: Straight Return Lever
• Rose/Escutcheon Design: 3-3/8" Rose Diameter
• Rose/Escutcheon Dimensions: 3-3/8"
• Cylinder Type: Non-Keyed
• Std. Latch Number: MCP234
• Std. Latch Type: Spring latch
• Std. Latch Backset Dim: 2-3/4"
• Latch Bore Diameter: 7/8"
• Lock Face Size: 1-1/8" x 2-1/4"
• Bolt Projection: 1/2"
• Bore Hole Diameter: 2-1/8"
• Std. Strike Number: 497
• Std. Strike Type: ANSI Strike
• Std. Strike Height: 4-7/8"
• Std. Strike Width: 1-1/4"
• Screws: Wood/Machine Screws
• Product Type: Cylindrical Lock
