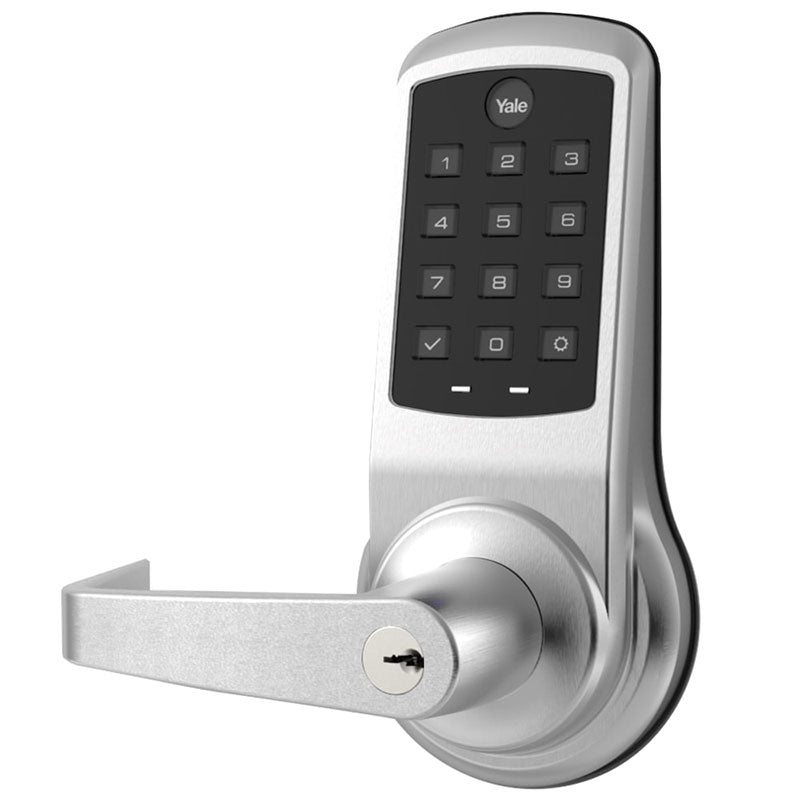

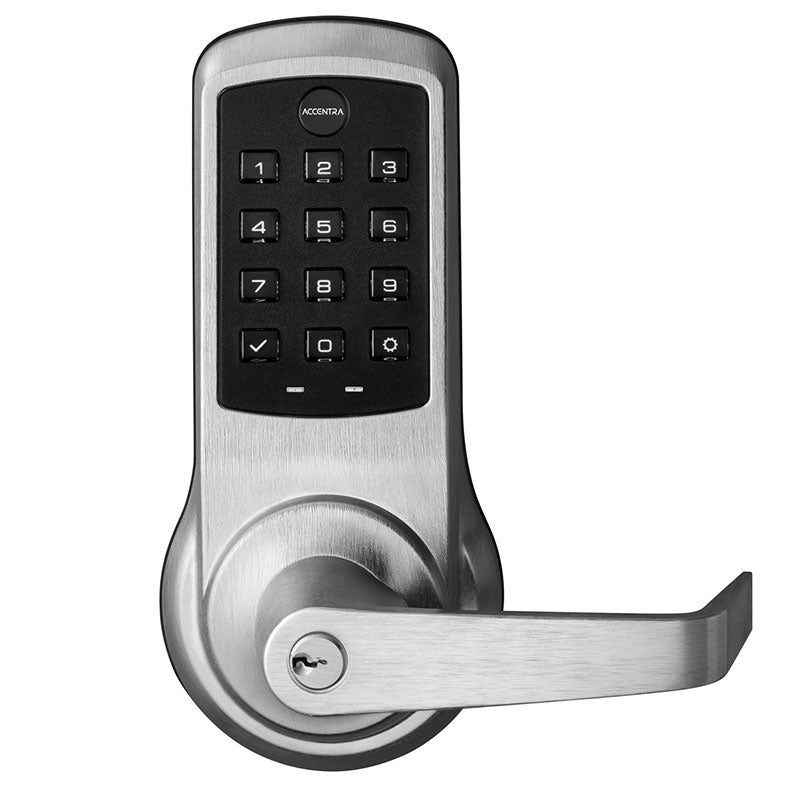

Accentra AU-NTB613-NR nexTouch Push Button Keypad Cylindrical Lock Augusta Lever

Product Description

The Accentra AU-NTB613-NR nexTouch keypad cylindrical lock provides a secure access solution with a modern design. Featuring a pushbutton keypad and Augusta lever, this lock is certified ANSI/BHMA Grade 1 for durability and reliability. It is suitable for high-traffic areas and simplifies access control.

• Engineered for heavy-duty usage
• Battery-operated or hard-wired options available
• Completely reversible for easy installation

Product Highlights

The Accentra AU-NTB613-NR is designed for secure and easy access management in commercial settings.

Product Information

Standard Information

• Brand: Accentra (Formerly Yale)
• Lock Function: Pushbutton Keypad

Technical Specifications

• ANSI/BHMA Standard: Certified ANSI/BHMA Grade 1
• Handing: Completely Reversible
• Fire Rating: UL Listed up to 3 Hours
• ADA Compliance: Meets ADA requirements – A117.1 Accessibility Code
• Power: Battery-operated with a low power indicator or hard-wired (9 Volt external power supply)
• Reader Technology: Keypad Only
• Strike Type: 4-7/8 inches x 1-1/4 inches
• Latch: 1/2 inch throw, deadlocking – 1-1/8 inches x 2-1/4 inches face
• Backset: 2-3/4 inches
• Cylinder & Keys: 6-pin conventional, keyed different, with 2 keys
• Lever Design: AU (Augusta)
• Usage: Heavy Duty
• Door Thickness: 1-3/4 inches
• Warranty: 3 Year Limited
• SKU: AU-NTB613-NR
• Grade: Grade 1
• Installation: Commercial
• Application: Pushbutton Keypad
• UL Listing Type: UL/cUL, 3 Hours
• DNS Number: ANSI/BHMA A156.2, Series 4000 Grade 1
• Fire Rated: Yes
• Finish: 626/US26D
• Finish Description: Satin Chrome
• Series Name: NexTouch
• Access Function: Software Programmable
• Keypad Type: Pushbutton Keypad
• Cylinder Type: Conventional Cylinder
• Hand: Not Handed
• Latch Backset Dimension: 2 3/4 inches
• Operating Voltage: 4 AA Batteries
• Product Type: Cylindrical Locks with Keypad Trim
