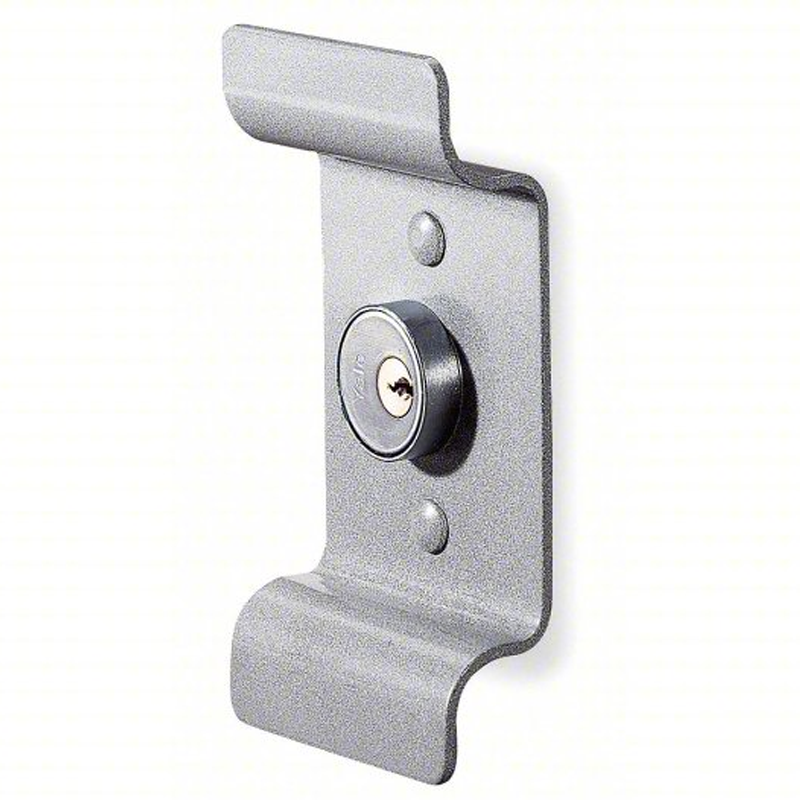

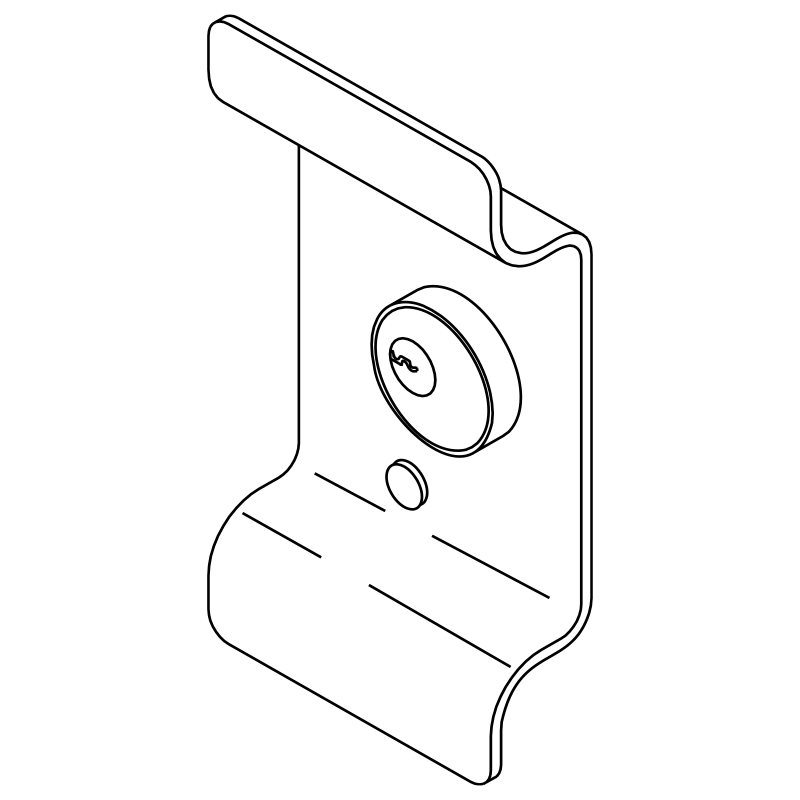

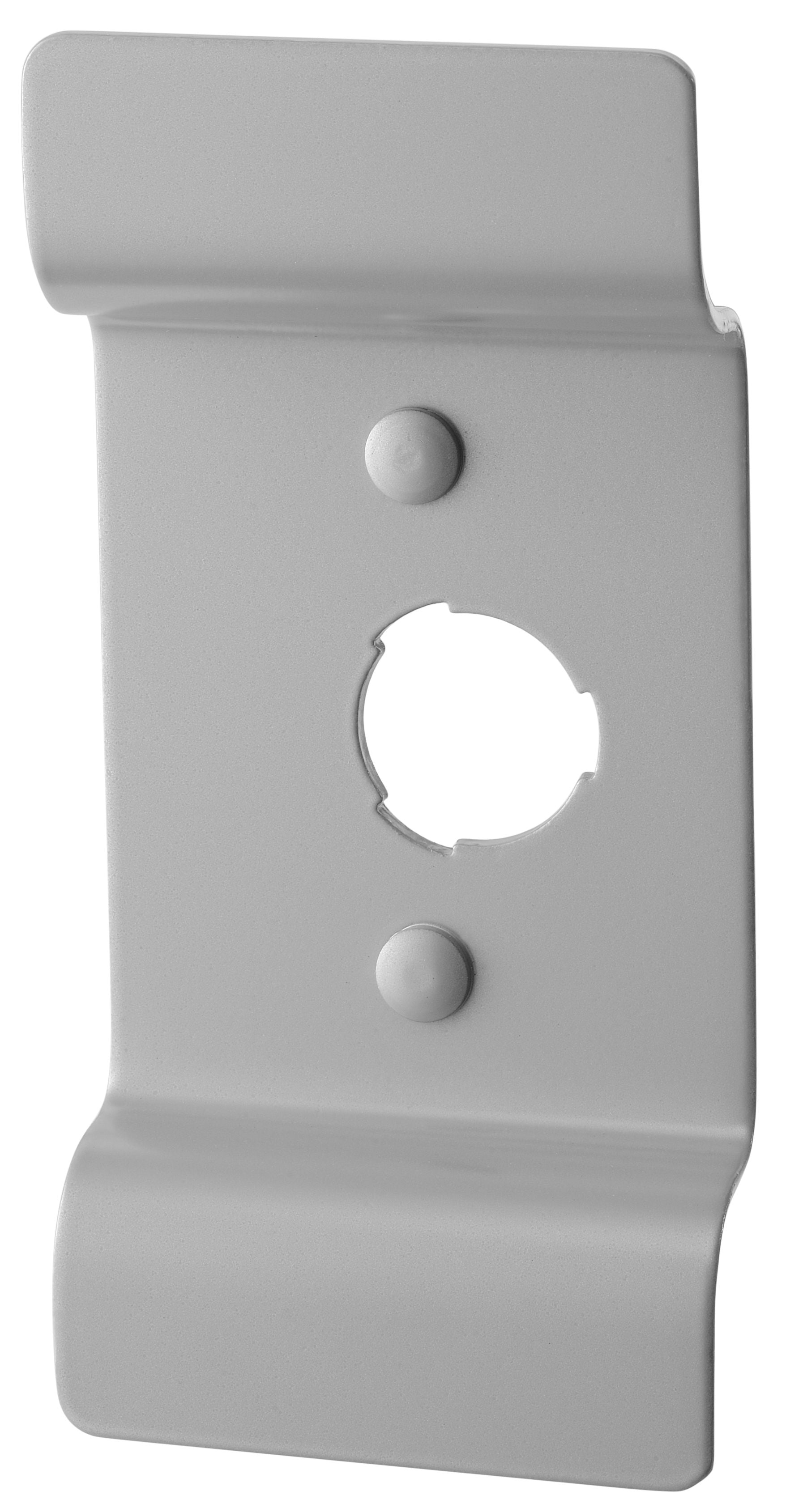

Accentra 217F689 Trim for 2100 Series Exit Devices - Nighthlatch Function

Product Description

The Accentra 217F689 trim is made for 2100 Series Exit Devices. It features a Nighthlatch function. The trim has an aluminum painted finish. This trim is designed for high-frequency applications and includes vandal-resistant Free-Wheeling for durability. The trim bolts through to the exit device for added strength.

• Trim through-bolts to exit device for strength
• Beveled sides improve attack resistance
• Cylinder - Accentra Para Keyway

Product Highlights

This product is ideal for doors that experience frequent use and abuse, ensuring security and reliability.

Product Information

Standard Information

• Finish: 689 - Aluminum Painted Finish
• Function: Nightlatch Cylinder by Pull

Technical Specifications

• Cylinder: Accentra Para Keyway
• Plate Dimensions: 3.5 inches x 3.75 inches x 0.032 inches (89mm x 95mm x 2mm)
• Finger Pull Dimensions: 3.5 inches x 6.75 inches x 0.125 inches (89mm x 171mm x 3mm)
• Door Thickness: 1.75 inches (44mm) for standard doors. For thicker doors, specify on order.
• Category: Exit Devices
• SubCategory: Exit Device Trims
• Series: 2100 Series
• Material: Aluminum
• Handing: Field Reversible
• Certification: Underwriters Laboratory ANSI/BHMA Standard 156.3 Grade 1
• Design Type: Touch Bar Outside Trim
• Device Type: Fits Rim and Vertical Rod Devices
• Door Type: Wood/Metal Doors
• Grade: Grade 1 - Heavy Duty Commercial
• Industry Finish: US28/628 Aluminum
• Manufacturer: Accentra
• Options: Rim Cylinder (Not Included)
