Abz Manufacturing 600397815LBFV 397-815 Butterfly Valve 6 IN

Product Description

The ABZ MANUFACTURING 600397815LBFV is a 397-815 series general purpose resilient-seated butterfly valve, well-suited for dead-end service. It features a one-piece body in a full-lug style and is available in multiple configurations with corrosion-resistant materials. Simplifies field maintenance and increases working life. The valve has a 6 IN nominal size and a 200 PSI pressure rating.

• General purpose resilient-seated butterfly valves
• Suitable for dead-end service

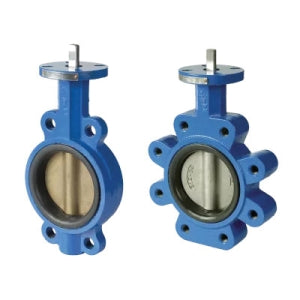

• One-piece bodies in wafer or full-lug styles

Product Highlights

The ABZ butterfly valve features corrosion-resistant materials, increasing working life and simplifying maintenance.

Product Information

Standard Information

• Brand: ABZ MANUFACTURING
• Manufacturer Part Number: 600397815LBFV

Technical Specifications

• Nominal Size: 6 IN
• Pressure Rating: 200 PSI
• Body Material: Ductile Iron
• Operator Type: Locking Lever Handle
• Stem Material: 416 Stainless Steel
• Trim Material: 316 Stainless Steel Disc
• Packing Material: Buna-N Stem
• Seat Material: EPDM
• Industry Standards: API 609 Category A Design, API 598 Tested, ASME B16.1/B16.2 And MSS SP67
• Height: 14.42 IN
• Lead Free: No
• Other Physical Dimension: 3/4-10 UNC Thread, 9-1/2 IN Bolt Circle Diameter
• Additional Specifications: Number Of Holes: 8
