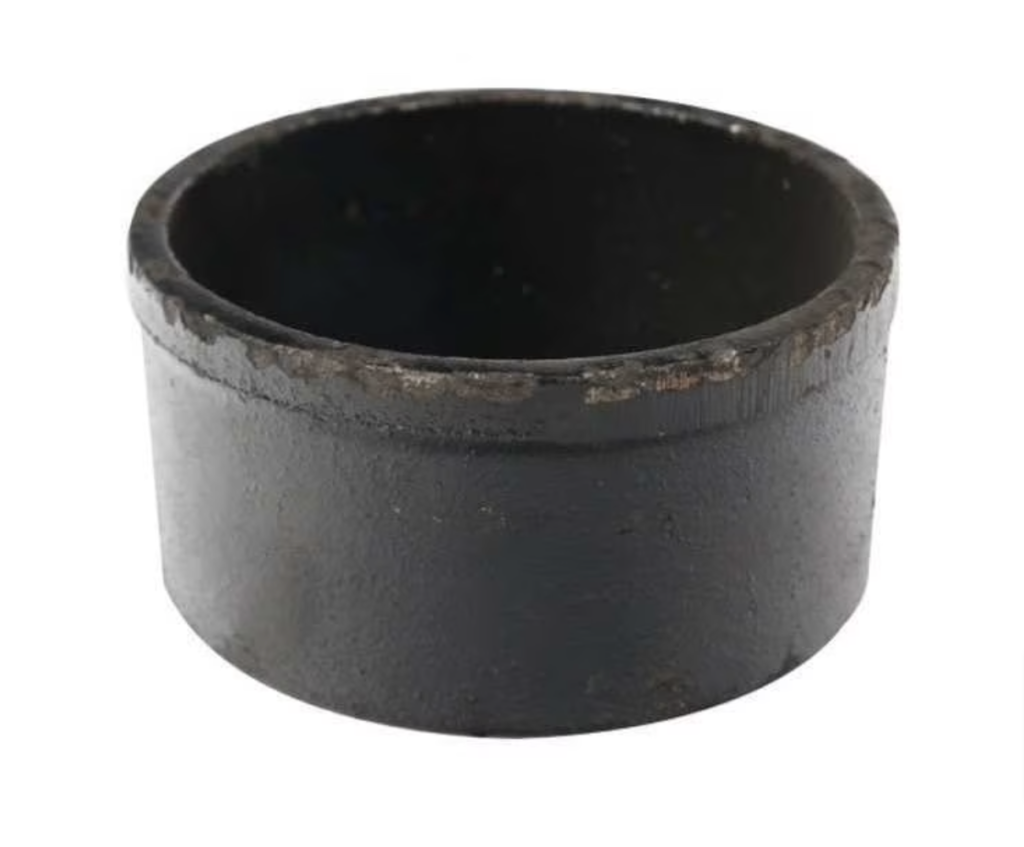

Abi Foundry 2482 Cast Iron Blind Plug 2 Inch No-hub

Product Description

The ABI FOUNDRY 2482 is a cast iron blind plug designed to cap and seal 2-inch no-hub drain, waste, and vent pipe connections. The plug fitting terminates open pipe ends during pressure testing, temporary service interruptions, or permanent system closures. At 1.75 inches in height, it is a compact, heavy-duty fitting rated to 212 degrees F. The cast iron construction provides the durability and corrosion resistance required in below-grade and in-wall DWV installations. Licensed plumbers and pipefitters specify this type of plug wherever a no-hub connection point must be cleanly terminated.

This blind plug is suited for residential and light commercial plumbing systems using no-hub cast iron pipe. Typical applications include capping stub-outs during rough-in inspections, sealing decommissioned branch lines, and terminating cleanout access points. The no-hub connection style accepts a standard no-hub band coupling for a secure, gasketed fit that meets common drain, waste, and vent installation requirements. Domestic manufacture is noted in supplier specifications.

Key Features

• 2-inch no-hub connection size fits standard no-hub cast iron DWV pipe
• Cast iron construction handles temperatures up to 212 degrees F
• Compact 1.75-inch height fits in tight rough-in spaces
• Plug fitting type provides a clean, sealed pipe termination
• Domestic manufacture

Compatibility

Designed as an OEM-style replacement and new-installation fitting for 2-inch no-hub cast iron drain, waste, and vent pipe systems.

Installation Notes

Installation is performed by a licensed plumber following local plumbing codes and applicable IPC or IFGC requirements. Secure the blind plug using a standard no-hub band coupling torqued to the coupling manufacturer's specification. Ensure the pipe end is clean and free of burrs before seating the plug. Always verify system pressure ratings before conducting pipe pressure tests with the fitting in place.

Technical Specifications

• Connection Size: 2 inches
• Connection Type: No-Hub
• Fitting Type: Plug
• Height: 1.75 inches
• Temperature Rating: 212 degrees F
• Material Construction: Cast Iron
• Material: Iron
• Origin: Domestic

Standard Information

• Brand: ABI FOUNDRY
• Manufacturer Part Number: 2482
