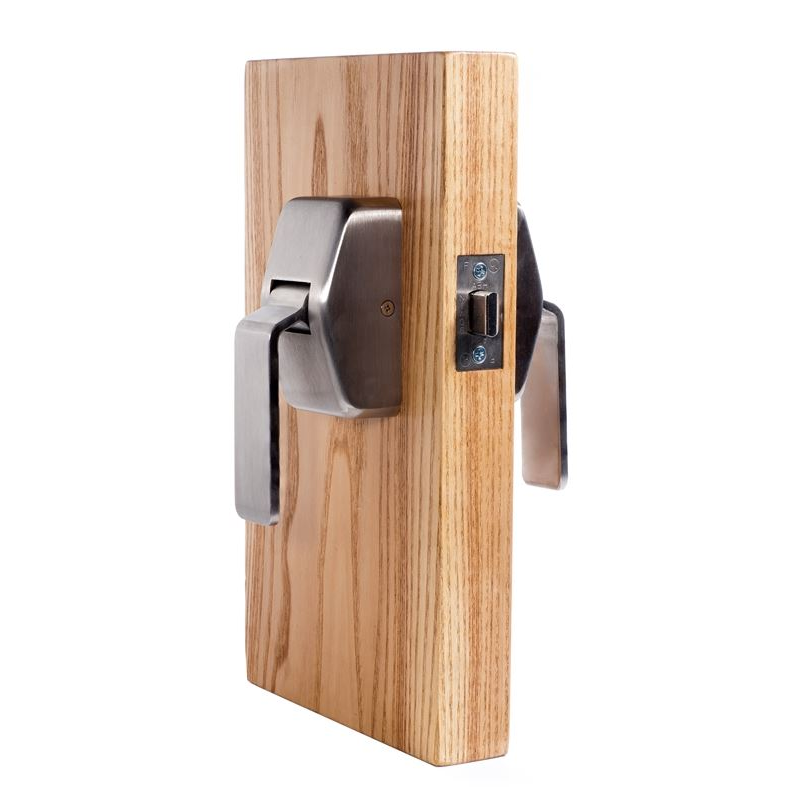

Abh Manufacturing 605A-US32D Hospital Push/Pull Latch 5 inches Backset

Product Description

The ABH MANUFACTURING 605A-US32D Push/Pull Hospital Latch offers versatility and durability for commercial and institutional settings. Designed for doors up to 1-3/4" - 2-1/4", including fire doors. Its sleek design features a short throw angle, allowing easy push or pull action, even when hands are not free. Non-handed, it can be mounted with handles up, down, or horizontally.

• Versatility and durability for commercial and institutional settings
• Designed for commercial and institutional doors up to 1-3/4" - 2-1/4", including fire doors
• Sleek design with a short throw angle

Product Highlights

This push/pull latch is ideal for hospitals and commercial spaces, offering easy operation and robust construction.

Product Information

Standard Information

• Brand: ABH MANUFACTURING
• Manufacturer Part Number: 605A-US32D

Technical Specifications

• Alternate Part Number-1: 148450
• Grade: Grade 1
• Backset: 5 Inch
• Handing: Non-Handed
• Function: Hospital
• Cylinder Included: No
• Strike Size: 4-7/8" x 1-1/4"
• Knob/Lever Design: Push/Pull
• Door Bore Size: 2-1/8"
• Lock Category: Cylindrical Lock
• Door Thickness Min: 1-3/4"
• Door Thickness Max: 2-1/4"
• Knob/Lever Style: Lever
• Manufacturer Parent: ABH Manufacturing
• Finish Description: Satin Stainless Steel
• Color Code: 630/US32D
• Finish Family: Satin Stainless Steel
• Application: Cylindrical latch
• Strike: 4-7/8 Inch ASA
• Door Thickness: 1-3/4"
