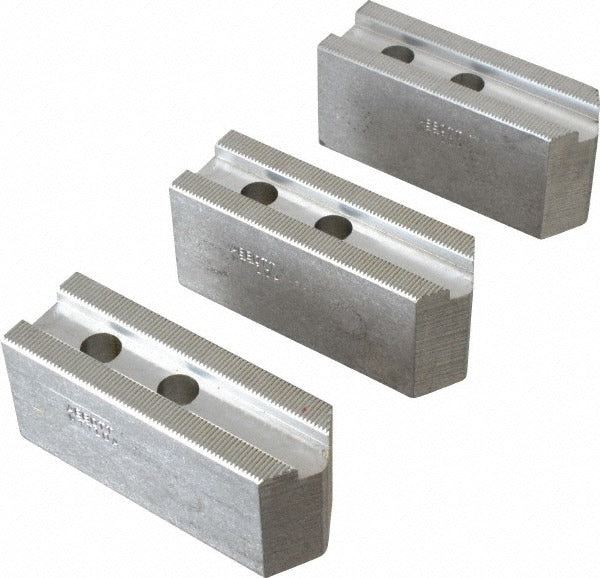

Abbott Workholding Products MTT10A Soft Lathe Chuck Jaw

Product Description

The ABBOTT WORKHOLDING PRODUCTS MTT10A is a soft lathe chuck jaw with a serrated jaw interface, designed for use in metal-turning and machining operations on engine lathes and CNC turning centers. Machined from 6061-T6 aluminum, this square-profile jaw offers a lightweight, machinable blank that technicians and machinists can bore or contour to fit specific workholding requirements. Key dimensions include an overall length of 4.5 inches, an overall height of 2 inches, and an overall width of 1.5 inches. The distance between mount hole centers is 1.2598 inches, and the fastener size is 0.4724 inches. The serrated interface provides positive engagement with the chuck master jaw for repeatable positioning.

This jaw is suited for use on lathes equipped with 3-jaw scroll chucks up to 10 inches in maximum compatible chuck diameter. It is a common choice in job shops, production turning cells, and maintenance machine shops where operators need a soft jaw that can be custom-bored to grip irregular, delicate, or previously finished workpieces without marking. Sold individually, it is compatible with serrated master jaw systems using a 0.63-inch slot width and a 0.4724-inch fastener size. Installation requires a matching set of three jaws for a complete chuck setup.

Key Features

• Serrated jaw interface for secure, repeatable engagement with matching master jaws
• 6061-T6 aluminum construction for lightweight, easy machinability during custom boring
• Square jaw profile with 4.5-inch overall length for substantial gripping range
• Mount hole center distance of 1.2598 inches and 0.4724-inch fastener size for precise fitment
• 0.63-inch slot width matches standard serrated master jaw groove dimensions
• Part of a 3-jaw set configuration for standard scroll chuck applications

Compatibility

Designed for use with serrated master jaw lathe chucks with a maximum compatible chuck diameter of 10 inches, a slot width of 0.63 inches, and a fastener size of 0.4724 inches. Verify master jaw groove width and mount hole spacing before installation.

Installation Notes

Installation is performed by qualified machinists or toolroom personnel. Power down and lock out the lathe spindle drive before removing or installing chuck jaws. Ensure the serrated mating surfaces are clean and free of chips before seating the jaw onto the master jaw. Three jaws of matching specification are required to complete a chuck assembly; do not mix jaw sets from different manufacturers or chuck sizes.
