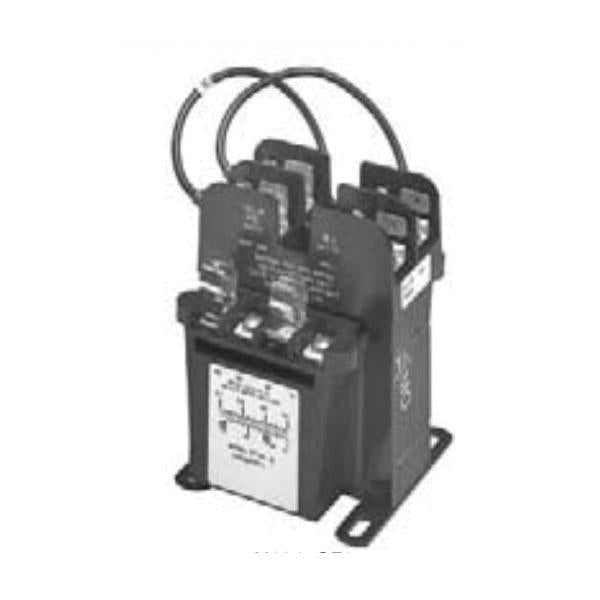

Abb X4250PSF1 machine tool transformer 250 VA 4 terminal

Product Description

The ABB X4250PSF1 is a machine tool transformer designed to step down voltages for machine tool control devices and industrial control panels. This 250 VA, single-phase transformer provides a dual secondary voltage of 115/24V, eliminating the need for separate transformers. It is built to handle high current levels at inrush, making it suitable for industrial loads, HVAC, signal and alarm systems, and circuit isolation. Operating at 50/60 Hz, it ensures stable power delivery.

• Provides stepped down voltages for machine tool control devices and industrial control panels.
• Designed to accommodate high current levels at inrush for stable voltage delivery.
• Features a dual secondary voltage of 115/24V, eliminating the need for separate transformers.

Product Highlights

RoHS and REACH compliant with high-quality silicon steel laminations for optimized performance.

Product Information

Standard Information

• Brand: ABB
• Manufacturer Part Number: X4250PSF1

Technical Specifications

• UNSPSC Code: 39121521
• Category: Machine Tool
• Phase: 1
• Primary Voltage: 460/200/220/230/208/240/440/480 V
• Secondary Voltage: 115/24 V
• VA Rating: 250 VA
• Coil Material: CU
• Temperature Rise: 80 °C
• Sub Type: Machine Tool
• Frequency: 50/60 Hz
• Temperature Class: 130
• Ambient Temperature: 40 °C
• K-Factor: K1
• Sound Level: Std
• Transformer Type: IP
• UL Listed: Yes
• cUL Listed: Yes
• CE Certified: No
• Primary Type: Industrial Transformer
• Type: Control Transformer
• Product Series: X
• Family Series: ABB Transformers, X Series
• Enclosed: No
• Primary Fuseholder: Included
• Secondary Fuseholder: Included

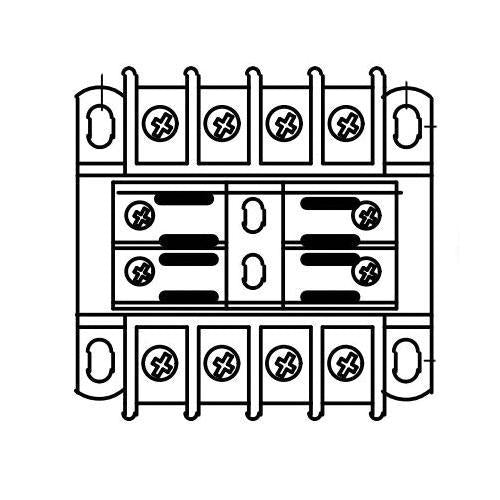

• Termination: Integrally Molded Terminal Blocks
• Cover Included: No
• Insulation Class: Class B
• Output Current: 10.42 A
