Abb X28-4X-G Cond Body X Form8 Ul4x 3/4in

Product Description

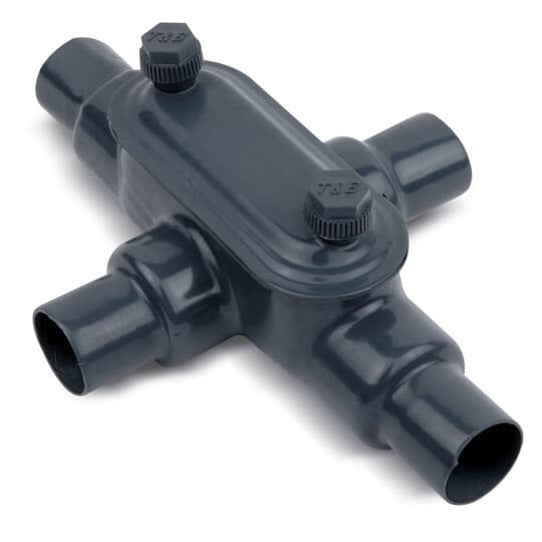

The ABB X28-4X-G is a PVC coated conduit body, X Type, Form 8 UL-4X, with a size of 3/4 Inch/21 Metric, made of Iron. It acts as pull outlets for conductors being installed. It has UL Listed Type 4X and NEMA 4X Rating for Excellent Protection In Wash Down Areas, As Well As Harsh Outdoor Environments Exposed to Moisture, Rain, Ice or Snow.

• Double coated superior corrosion protection, bodies and covers coated inside and out with .002 inch blue urethane, then exterior coated with a minimum of .040 inch PVC.
• PVC coated cast iron conduit body comes with mated cast iron cover, injection molded with an integral O-ring seal and stainless steel encapsulated screws.
• Provide openings for making splices and taps in conductors

Product Highlights

The ABB X28-4X-G conduit body connects conduit sections, provide taps for branch conduit runs, make 90 degree bends, and provide access for maintenance.

Product Information

Standard Information

• Brand: ABB
• Manufacturer Part Number: X28-4X-G
• Country of Origin: United States

Technical Specifications

• Category: Electrical conduit fitting body
• Special Features: UL Listed Type 4X and NEMA 4X Rating for Excellent Protection In Wash Down Areas, As Well As Harsh Outdoor Environments Exposed to Moisture, Rain, Ice or Snow.
• Application: Act As Pull Outlets for Conductors Being Installed
• Form: Form 8 UL-4X
• Material: Iron
• Finish: PVC Coated
• Enclosure: NEMA 4X
• Brand Name: Ocal
• Standard: cULus E2969, CSA
• Hub Size: 3/4 in , 21 mm
• RoHS: RoHS3 Compliant
• REACH: REACH 247 Compliant
• TSCA: TSCA Section 6(h) Compliant
• ETIM: EC003618 Form part for installation tubes
• Model: Other
• Material quality: Other
• Surface protection: Other
• Catalog Number: X28-4X-G
• Manufacturer: ABB - Installation Products - Conduit
• Country of Origin: United States
• Made in USA: Yes
• UPC: 704508026240
• GTIN: 00704508026240
• Item Type: Form 8 UL-4X Conduit Body
• Capacity: 9 cu-in
• Connection Type: Thread
• Number of Hubs: 4
• Type: Type X
• BABA Compliant: No
• Volume: 0
• Sold as: EACH
