Abb TY527M Nylon Cable Tie 13.5 Inch 0.27 Width (50-Pack)

Product Description

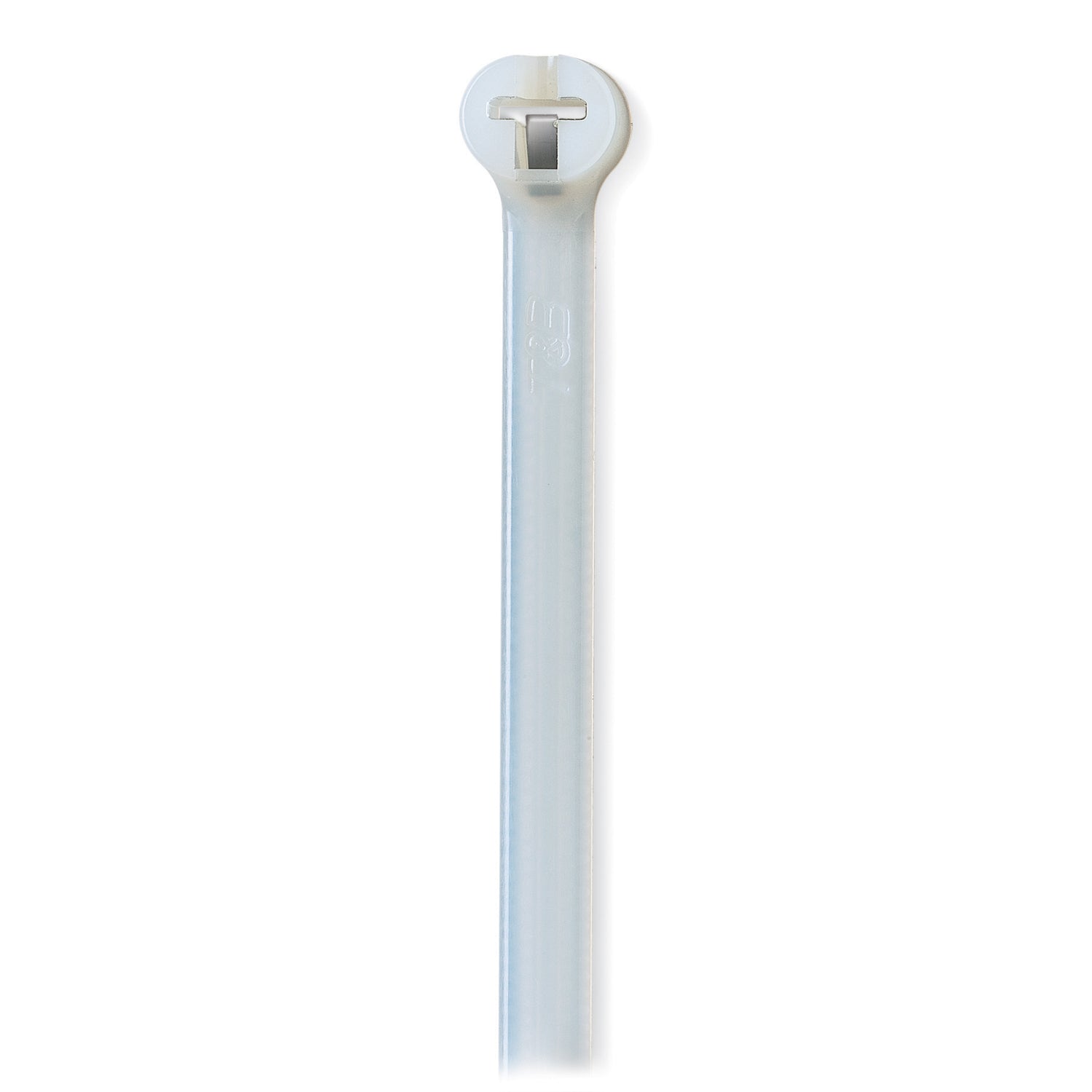

The Abb TY527M is a Nylon 6.6 self-locking cable tie (Ty-Rap) designed for cable bundling and wire harnessing. It measures approximately 343 mm (13.5 in) long with a 6.9 mm (0.27 in) width and a minimum loop tensile strength of 534 N (120 lb). The tie features a low-profile head with a stainless steel locking device, a notchless body for adjustable locking positions, and an operating range down to -60°C and up to 85°C.

• Material: Nylon 6.6; length 343 mm (13.5 in); width 6.9 mm (0.27 in); tensile strength 534 N (120 lb).

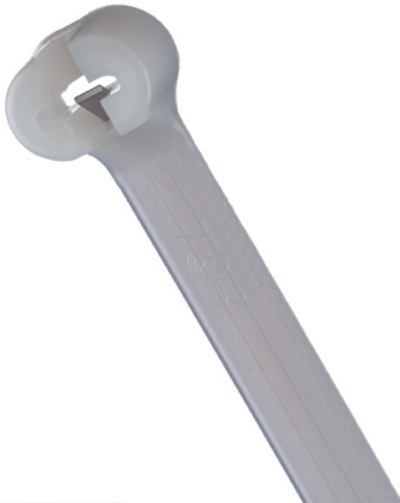

• Design: low-profile head, non-magnetic stainless steel locking device, notchless body and no-slip tail for controlled tensioning.
• Environmental: operating temperature range -60°C to 85°C; rounded edges to protect insulation; supplied in 50-pack.

Product Highlights

Nylon 6.6 self-locking Ty-Rap; 343 mm length, 6.9 mm width; 534 N tensile strength; -60°C to 85°C; 50 per pack.

Product Information

Standard Information

• Brand: ABB
• Manufacturer Part Number: TY527M

Technical Specifications

• Brand: Abb
• Manufacturer: Thomas & Betts Co
• Manufacturer Part Number: TY527M
• Sub Brand: Ty-Rap
• Material: Nylon 6.6 (Polyamide 6.6)
• Length: 343 mm (13.5 inches)
• Width: 6.9 mm (0.27 inch)
• Thickness: 0.06 in
• Maximum Bundle Diameter: 102 mm (4.02 inches)
• Tensile Strength: 534 N (120 lb)
• Operating Temperature: -60°C to 85°C (-76°F to 185°F)
• UL Flammability Rating: UL94V-2
• RoHS Compliance: Yes
• SVHC Status: No SVHC (15-Jan-2018)
• Pack Quantity: 50
• UPC: 78621080511
