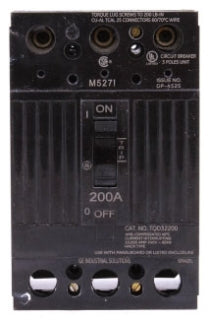

Abb TQD32200X2 Circuit Breaker 200A 240V 3 Pole

Product Description

The ABB TQD32200X2 is a molded case circuit breaker rated for 200 amps at 240 volts across three poles. It carries a 10,000 amp interrupting capacity (10KIC), making it suitable for branch circuit and feeder protection in commercial and light industrial panelboard applications. The line lug configuration accepts incoming conductors without a separate terminal block. Licensed electricians and electrical contractors install this breaker as part of service entrance, distribution, or branch circuit assemblies where overcurrent protection and fault interruption are required.

This breaker is designed for use in 240-volt three-phase or multi-wire branch circuit systems. The 200-amp rating suits feeder-level protection in commercial panels, light industrial distribution boards, and large residential service applications. The line lug termination style accommodates direct conductor landing, reducing hardware count in tight panel layouts.

Key Features

• 200-amp continuous current rating for feeder and branch circuit protection
• 240-volt rated for single-phase and three-phase distribution systems
• 3-pole configuration protects all ungrounded conductors simultaneously
• 10,000 amp interrupting capacity (10KIC) for fault current protection
• Line lug termination for direct conductor landing without additional terminal hardware

Compatibility

Designed as an OEM-style replacement or new-installation molded case circuit breaker for 240-volt panelboards and distribution equipment accepting the TQD frame size and line lug termination style.

Installation Notes

Installation must be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and applicable local codes. De-energize the panel and verify absence of voltage with a calibrated meter before handling any breaker or conductor. Ensure conductor sizing, termination torque, and panel compatibility meet the breaker frame and lug specifications per the manufacturer documentation. Do not install in systems where fault current exceeds the 10KIC interrupting rating.

Technical Specifications

• Amperage: 200 amps
• Voltage: 240 volts
• Poles: 3
• Interrupting Capacity: 10,000 amps (10KIC)
• Termination Type: Line lug
• UPC: 783164131451

Standard Information

• Brand: ABB
• Manufacturer Part Number: TQD32200X2
