Abb TMPR8412RF Meter Stack 4-socket Ringless 800A

Product Description

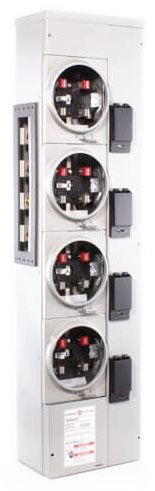

The ABB TMPR8412RF is a 4-socket ringless meter stack rated for 800 amps at 1-phase, 5-terminal configuration. Each of the four socket positions accepts up to 125-amp metering, making this unit suited for multi-tenant residential or light commercial applications where individual unit metering is required on a single service. The ringless socket design eliminates the need for a pull-out ring, streamlining meter installation and removal for utility personnel. This assembly carries Duke Energy approval, meaning it meets that utility's specific construction and safety requirements for approved metering equipment.

This meter stack is used in multifamily residential buildings, apartment complexes, condominiums, and small commercial properties where up to four tenants or units must be metered individually on a shared 1-phase service. The 800-amp main rating accommodates the combined load of four 125-amp circuits. Duke-approved labeling indicates this unit has been reviewed and accepted for installations within Duke Energy service territories, which may be a required condition for final utility connection and inspection.

Key Features

• 4 ringless meter sockets rated at 125 amps each
• 800-amp total service rating for 1-phase systems
• 5-terminal wiring configuration per socket position
• Ringless socket design for utility meter pull and set without a separate ring
• Duke Energy approved for use in applicable service territories

Compatibility

Designed as an OEM-style meter stack for 1-phase, multi-socket residential and light commercial metering installations. Duke Energy approval indicates specific utility fitment; verify with the serving utility before installation in other territories.

Installation Notes

Meter stack equipment of this type is installed by licensed electricians in accordance with the National Electrical Code (NEC) and applicable local electrical codes. The utility service must be de-energized by the serving utility before any work is performed on the meter socket section. Coordinate with Duke Energy or the serving utility for meter installation, inspection, and final energization. All wiring, grounding, and bonding must conform to NEC Article 230 requirements for service entrance equipment.

Technical Specifications

• Number of Sockets: 4
• Socket Type: Ringless
• Per-Socket Amperage: 125 amps
• Total Service Rating: 800 amps
• Phase Configuration: 1-phase
• Terminal Configuration: 5-terminal
• Utility Approval: Duke Energy approved
• UPC: 783164487022

Standard Information

• Brand: ABB
• Manufacturer Part Number: TMPR8412RF
