Abb TM3210CCU Load Center 100A 32 Circuit 1P3W

Product Description

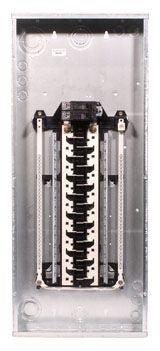

The ABB TM3210CCU is a 100-amp, 32-circuit, single-phase, 3-wire load center designed for residential and light commercial electrical distribution. This enclosure receives incoming service power and distributes it to individual branch circuits through plug-in breaker positions. Rated at 100 amps, it supports up to 32 circuit breaker slots, making it suitable for panel installations where a moderate number of branch circuits are required. Licensed electricians install this unit as a main or sub-panel depending on service configuration and local code requirements.

The TM3210CCU is suited for residential new construction, renovation projects, and light commercial applications where single-phase 120/240-volt distribution is needed. Its 32-circuit capacity accommodates typical household or small commercial loads including lighting, receptacles, HVAC equipment, and dedicated appliance circuits. This load center is installed by licensed electricians in accordance with NEC requirements for service entrance or feeder-fed sub-panel configurations.

Key Features

• 100-amp main rating supports standard residential service capacity
• 32 circuit breaker positions for branch circuit distribution
• Single-phase, 3-wire configuration for 120/240-volt applications
• Plug-in breaker design for straightforward circuit breaker installation

Compatibility

Designed as an OEM-style load center for single-phase residential and light commercial electrical distribution applications requiring 100-amp service capacity and up to 32 circuits.

Installation Notes

Installation must be performed by a licensed electrician in compliance with the National Electrical Code (NEC) and all applicable local codes. De-energize the service entrance and verify absence of voltage with a properly rated meter before beginning work. The enclosure must be mounted plumb and secured to a structural surface capable of supporting its weight. All wiring must be sized and terminated per NEC guidelines for the intended load.

Technical Specifications

• Amperage Rating: 100 amps
• Number of Circuits: 32
• Phase Configuration: Single phase
• Wire Configuration: 3-wire
• UPC: 78316411462

Standard Information

• Brand: ABB
• Manufacturer Part Number: TM3210CCU
