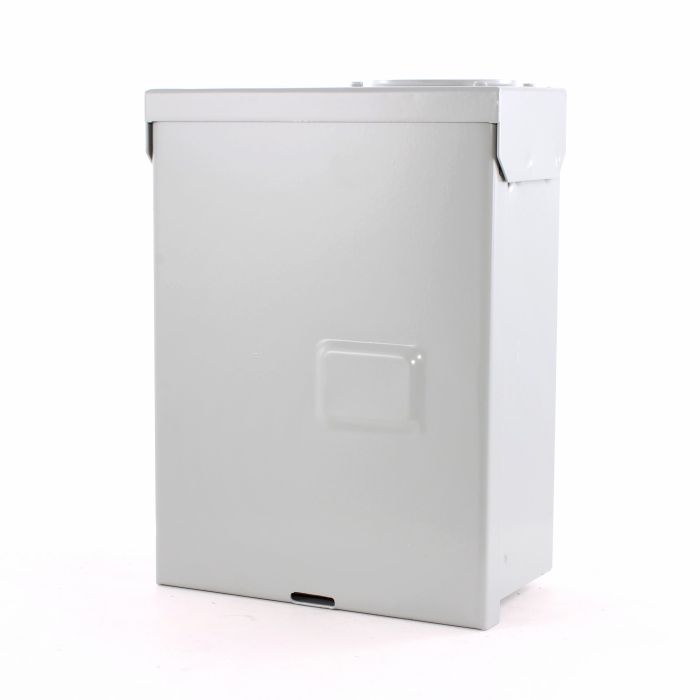

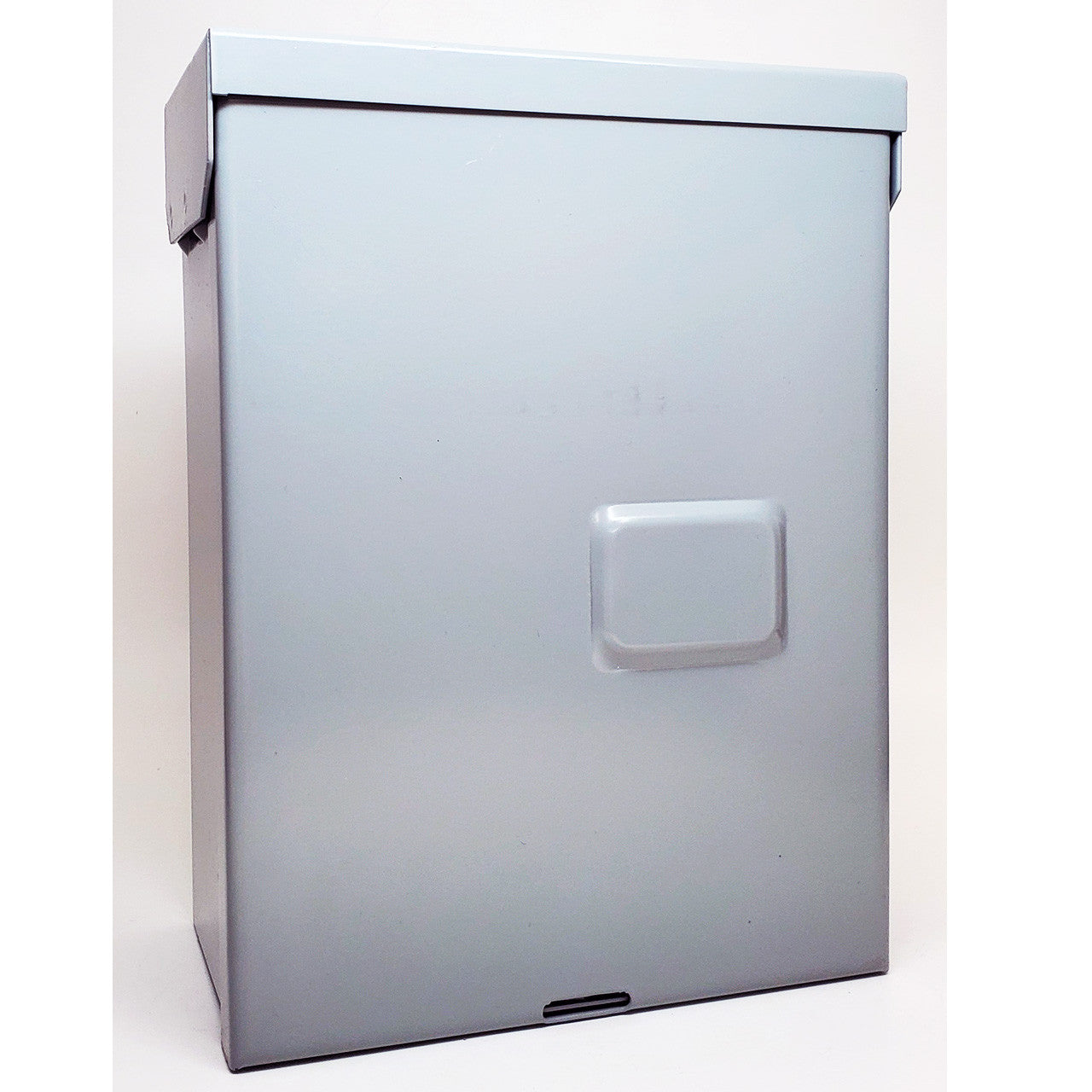

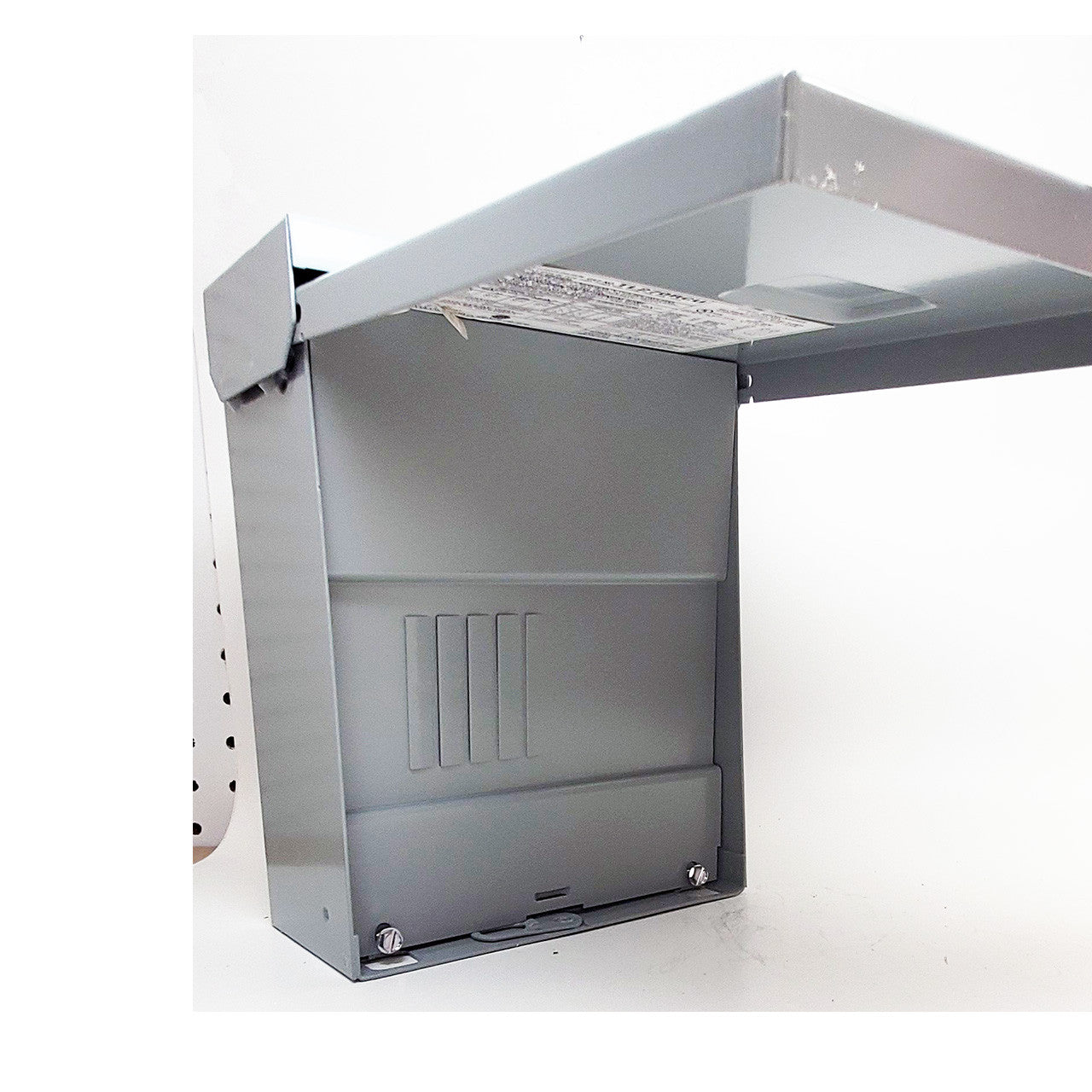

Abb TL270RCU Loadcenter Lug Main 120/240VAC 70A

Product Description

The ABB TL270RCU is a PowerMark Gold™ 1-Phase standard main lug loadcenter operating at 120/240 VAC with a 70 A current rating and a 65 kA interrupt rating. It is designed with 1 pole. This loadcenter increases application flexibility and reduces inventory requirements.

• PowerMark Gold™ series
• Main lug loadcenter
• Suitable for use as service entrance equipment when installed in accordance with the NEC standard

Product Highlights

This ABB loadcenter is designed for faster and easier installation, delivering advances in design, function, and quality.

Product Information

Standard Information

• Brand: ABB
• Manufacturer Part Number: TL270RCU

Technical Specifications

• Voltage: 120/240 VAC
• Amperage: 70 A
• Phase: 1-Phase
• Interrupt Rating: 65 kA
• Poles: 1
• Manufacturer: ABB Electrification
• Amperage Rating: 70 A
• Number of Poles: 1
• Voltage Rating: 120/240 VAC
• Length: 10.5
• Width: 8.5
• Height: 4.75
• Type: 1-Phase Standard
• Number of Circuits: 2
• Breaker Type: THQL/THQP
• Wiring Configuration: 3-Wire
• Number of Spaces: 2
• Wire Size: 6 to 3 AWG
• Mounting Type: Surface
• Enclosure Type: NEMA 3R
• Enclosure Box Size: NEMA R1A
• Service Type: Single-Phase, Three-Wire
• Load Center Type: Standard
• IC Rating (Max): 65 kAIC
• Main Ampere Rating: 70 Amps
• Total Spaces: 4
• Main Device Type: Main Lugs
• Feed Type: Top or Bottom
• Copper Bus: Yes
• Door Included: Yes
• PowerMark: Gold
• Agency Certification: UL
