Abb thqp225 thqp series 2-pole 25a

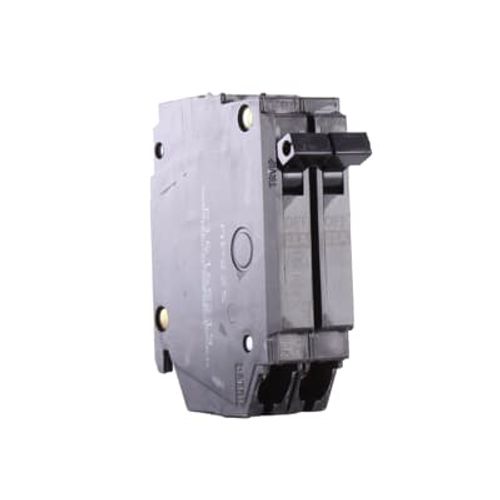

Product Description

The ABB THQP225 is a Q-Line THQP Series 2-pole plug-in circuit breaker. Designed for residential and commercial electrical systems, it provides overcurrent safety. This 25A component requires only one inch of panel space and mounts into GE PowerMark Gold or Plus load centers. It also serves as a replacement for older TQP225 models.

• Compact Q-Line design
• Essential overcurrent safety for residential and commercial electrical systems

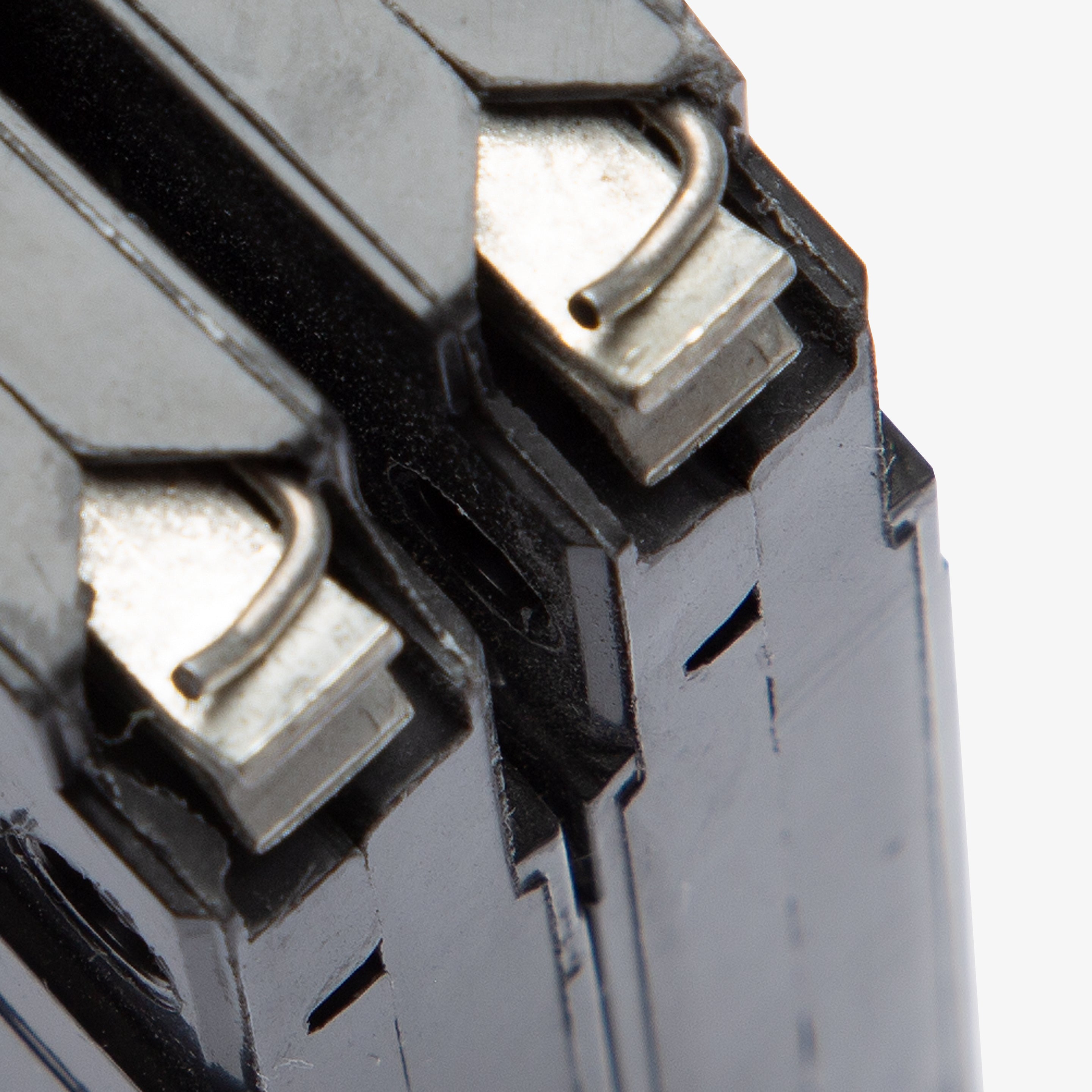

• Internal common trip mechanism

Product Highlights

The THQP225 is HACR rated and handles demanding HVAC or appliance loads with a 10kAIC rating.

Product Information

Standard Information

• Brand: ABB
• Manufacturer Part Number: THQP225
• Country of Origin: United States

Technical Specifications

• Frame: Q-Line
• Trip Type: LI
• Connection: 14-8 kcmil / 12-8 kcmil
• Trip Range: Non-Interchangeable
• Load Rating: HACR
• Voltage Rating: 120/240 V
• Amperage Rating: 25 A
• Number of Poles: 2
• Interrupt Rating: 10kA@120 Vac / 10kA@120/240 Vac
• Harmonized Tariff Code: 8536200020
• application: Thermal Magnetic
• Product Type: Circuit Breaker
• Amperage: 25A
• Voltage: 120/240VAC
• Series: THQP
• Part Number: THQP225
• Phase: 1
• AIC Rating: 10kA @ 120/240VAC
• Mounting Style: Plug-On

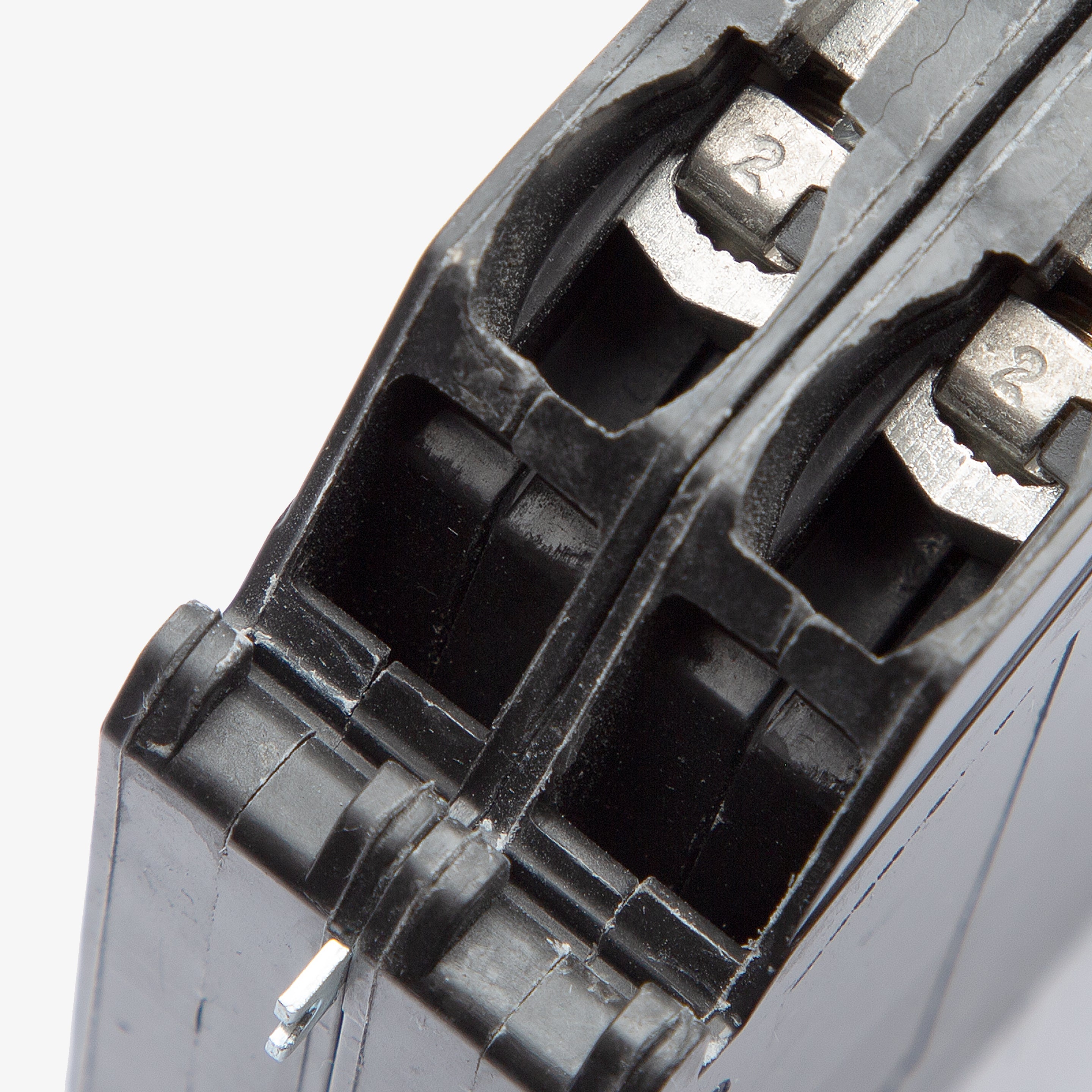

• Terminal Type: Box Lugs
• For Use With: GE PowerMark Gold Load Centers, GE PowerMark Plus Load Centers
• Trip Technology: Thermal Magnetic
• Trip Function Code: LI
• Trip Function: Long-Time, Instantaneous
• Trip Adjustability: Fixed
• Wire Gauge: 14-8 AWG (Cu), 12-8 AWG (Al)
• Max Wire: 8 AWG
• Min Wire: 14 AWG (Cu), 12 AWG (Al)
• Available Options: Padlock Attachment
• Standards: CSA C22.2 No. 5, HACR, UL 489
• Approval: CSA, UL
• Temp Rating: -25C to 70C
• Construction Features: HACR Rated, Common Trip, Reverse Feed, Quick-Make/Quick-Break, Trip-Free Mechanism
• Volts AC: 120, 240
• Amps: 25
• Interrupt Rating AC: 10 kA
