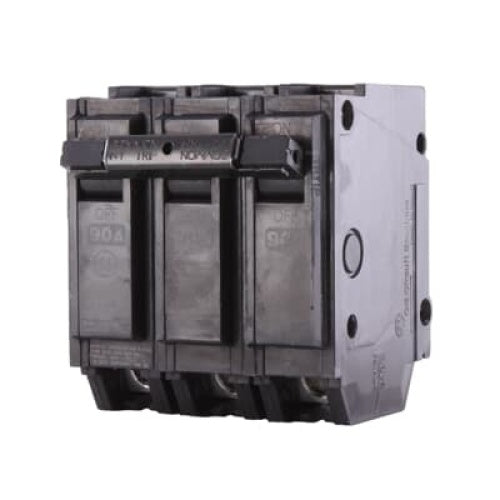

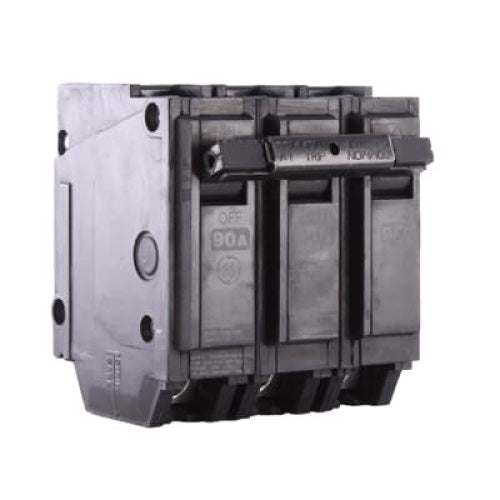

Abb THQL32090 Circuit Breaker 3P 90A 240 10KA

Product Description

The ABB THQL32090 circuit breaker is a one-inch wide per pole, compact, thermal-magnetic device designed for residential and commercial applications in load centers or lighting panels. It features Quick-make / Quick-break mechanisms, common trip bars, and easy to spot trip indication to ensure safety and reliability. The THQL32090 breaker features 3 poles, an ampere rating of 90 A, an interrupting rating of 10kAIC, and a voltage rating of 240V.

• Quick-make / Quick-break mechanisms
• Common trip bars
• Easy to spot trip indication
• Can be ordered with auxiliary contact and shunt trip accessories

Product Highlights

Designed for residential and commercial applications, the ABB THQL32090 offers reliable circuit protection with a 90A current rating and a 10kAIC interrupting capacity.

Product Information

Standard Information

• Brand: ABB
• Manufacturer Part Number: THQL32090
• Country of Origin: US

Technical Specifications

• Category: Q Line
• Product Line: Q-Line (Plug-In)
• GO Schedule: R8
• Interrupting Capacity Rating: 10 kAIC
• Voltage: 240 V
• Trip Style: Non-Interchangeable
• Frame Type: Q-Line
• Amperage: 90 A
• Poles: 3
• Trip Function: LI
• Continuous Current Rated: Standard
• 120 Vac Interrupting Rating: 10 KAIC
• 120/240 Vac Interrupting Rating: 10 KAIC
• 240 Vac Interrupting Rating: 10 KAIC
• Suitable for Reverse Feed: Yes
• Long Time: Fixed
• Instantaneous: Fixed
• Special Markings: HACR
• UL File #: E11592
• Brand: ABB
• MPN: THQL32090
• Breaker Mechanism Type: Toggle
• Breaker Number of Poles: Three Pole
• Breaker Voltage Rating: 240 VAC
• Breaker Amperage Rating: 90 Amp
• Component: Miniature Circuit Breaker
• Manufacturer: ABB
• Line: Q-Line (Plug-In)
