Abb thql32070st1 thql 3p 70 amp

Product Description

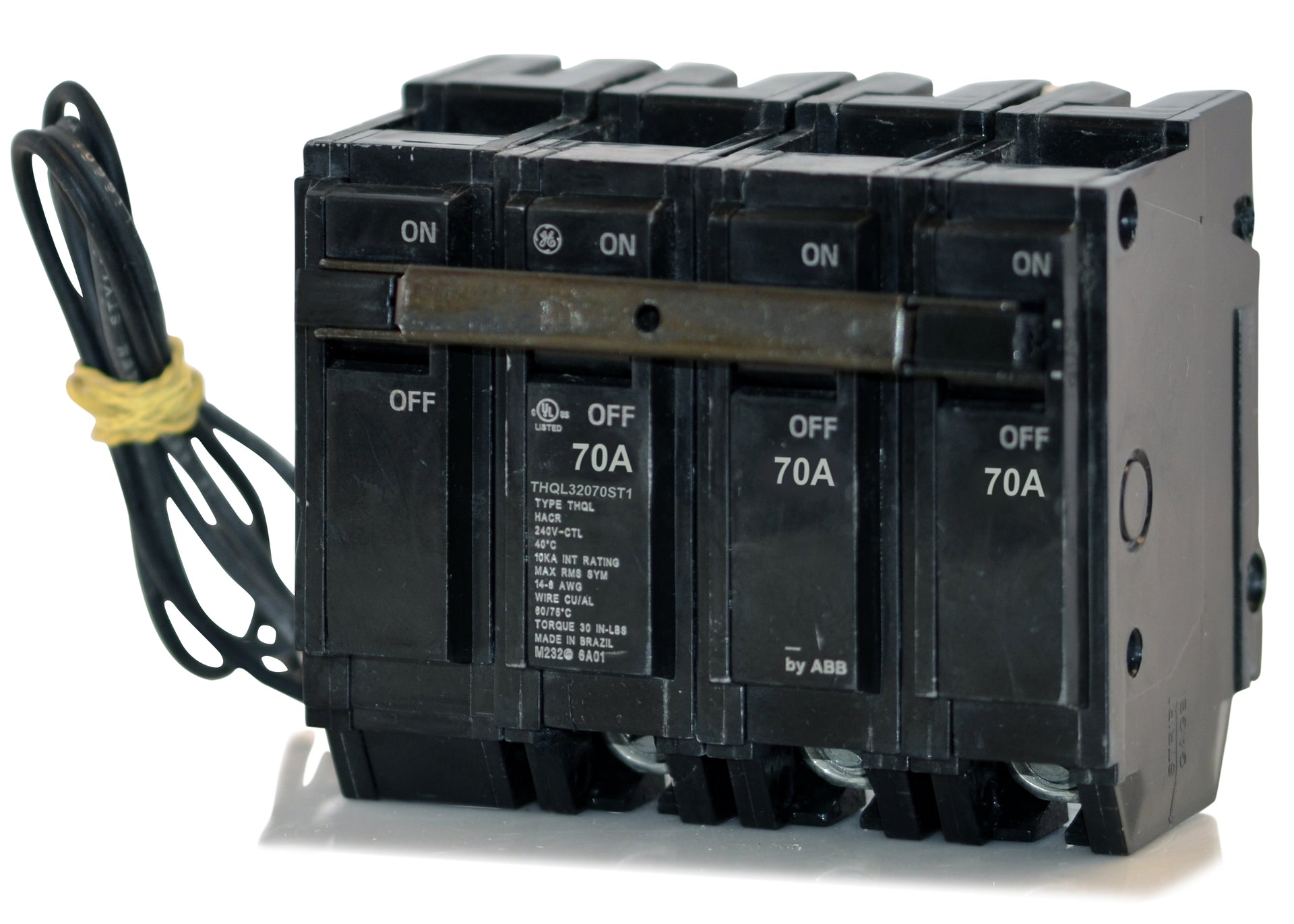

The ABB THQL32070ST1 is a 70A, 3-pole molded case circuit breaker engineered for remote shutdown applications. It features an integrated 120VAC shunt trip mechanism and connects into GE A-Series panelboards and PowerMark Gold load centers via a standard plug-on mount. Provides reliable thermal-magnetic protection and quick-make/quick-break switching.

• Engineered for remote shutdown applications
• Integrated 120VAC shunt trip mechanism
• Connects into GE A-Series panelboards and PowerMark Gold load centers via a standard plug-on mount

Product Highlights

This 70A, 3-pole molded case circuit breaker is designed for electrical distribution and control with reliable thermal-magnetic protection.

Product Information

Standard Information

• Brand: ABB
• Manufacturer Part Number: THQL32070ST1
• Country of Origin: UKN

Technical Specifications

• application: Electrical distribution and Control
• Brand: ABB / General Electric
• Series: THQL
• Part Number: THQL32070ST1
• Amperage: 70A
• Voltage: 240VAC
• Poles: 3
• Phase: 3
• AIC Rating: 10kA @ 240VAC
• Mounting Style: Plug-On
• Terminal Type: Box Lugs
• For Use With: GE PowerMark Gold Load Centers, GE A-Series Panelboards
• Trip Technology: Thermal Magnetic
• Trip Function Code: LI
• Trip Function: Long-Time, Instantaneous
• Trip Adjustability: Fixed
• Wire Gauge: 6-1/0 AWG (Cu), 4-1/0 AWG (Al)
• Max Wire: 1/0 AWG
• Min Wire: 6 AWG (Cu), 4 AWG (Al)
• Available Options: Padlock Attachment
• Accessories: Shunt Trip
• Standards: HACR, UL 489
• Approval: UL
• Temp Rating: 60C to 75C
• Construction Features: HACR Rated, Common Trip, Quick-Make/Quick-Break
