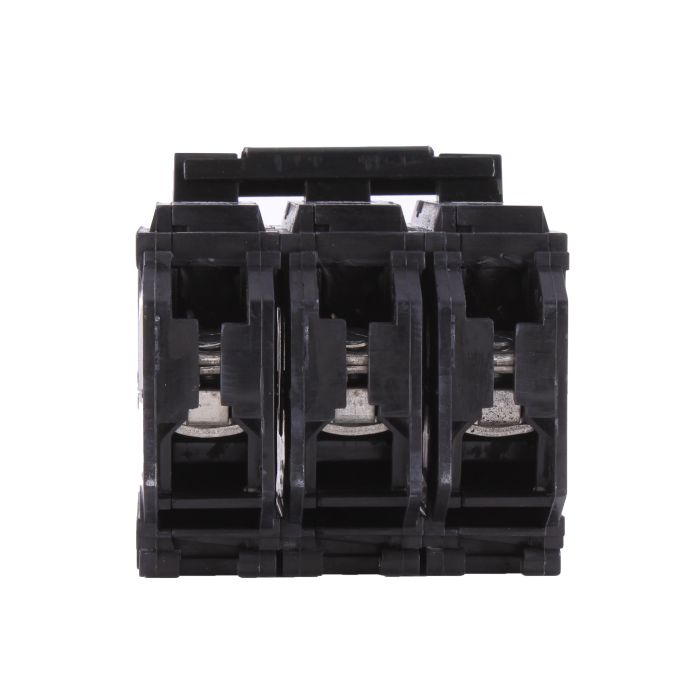

Abb THQL32060 Circuit Breaker 3P 60A 240 10KA

Product Description

The ABB THQL32060 is a Q Line circuit breaker, one-inch wide per pole, compact, thermal-magnetic device designed for residential and commercial applications in load centers or lighting panels. It features 3 poles, an ampere rating of 60 A, an interrupting rating of 10kAIC, and a voltage rating of 240V. All Q Line circuit breakers feature Quick-make / Quick-break mechanisms and common trip bars.

• One-inch wide per pole, compact, thermal-magnetic devices
• Designed for residential and commercial applications
• Quick-make / Quick-break mechanisms

Product Highlights

The ABB THQL32060 circuit breaker is suitable for reverse feed and features easy to spot trip indication to ensure safety and reliability.

Product Information

Standard Information

• Brand: ABB
• Manufacturer Part Number: THQL32060

Technical Specifications

• Category: Q Line
• Product Line: Q-Line (Plug-In)
• Interrupting Capacity Rating: 10 kAIC
• Voltage: 240 V
• Trip Style: Non-Interchangeable
• Frame Type: Q-Line
• Amperage: 60 A
• Poles: 3
• Trip Function: LI
• Continuous Current Rated: Standard
• 120 Vac Interrupting Rating: 10 KAIC
• 120/240 Vac Interrupting Rating: 10 KAIC
• 240 Vac Interrupting Rating: 10 KAIC
• Suitable for Reverse Feed: Yes
• Long Time: Fixed
• Instantaneous: Fixed
• Special Markings: HACR
• UL File #: E11592
• Manufacturer: ABB Electrification
• Frequency Rating: 50/60 Hz
• Phase: 3
• Actuator Type: Pivot/Toggle Handle
• Connection Type: Load Lug
• Wire Size: 8 to 3 AWG
• Mounting Type: Plug-In
• Temperature Rating: 10 to 50 deg C
• Material: Plastic
• Trip Type: Non-Interchangeable Thermal Magnetic/LI
