Product Description

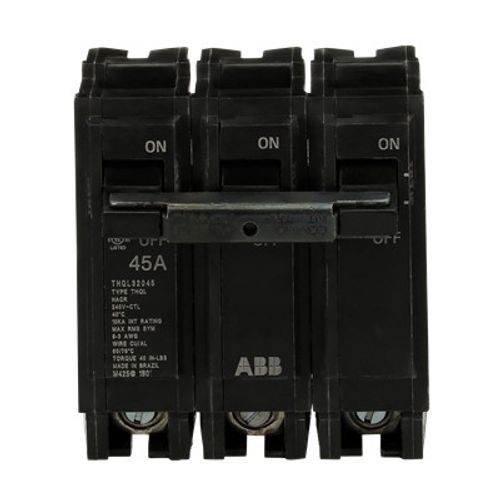

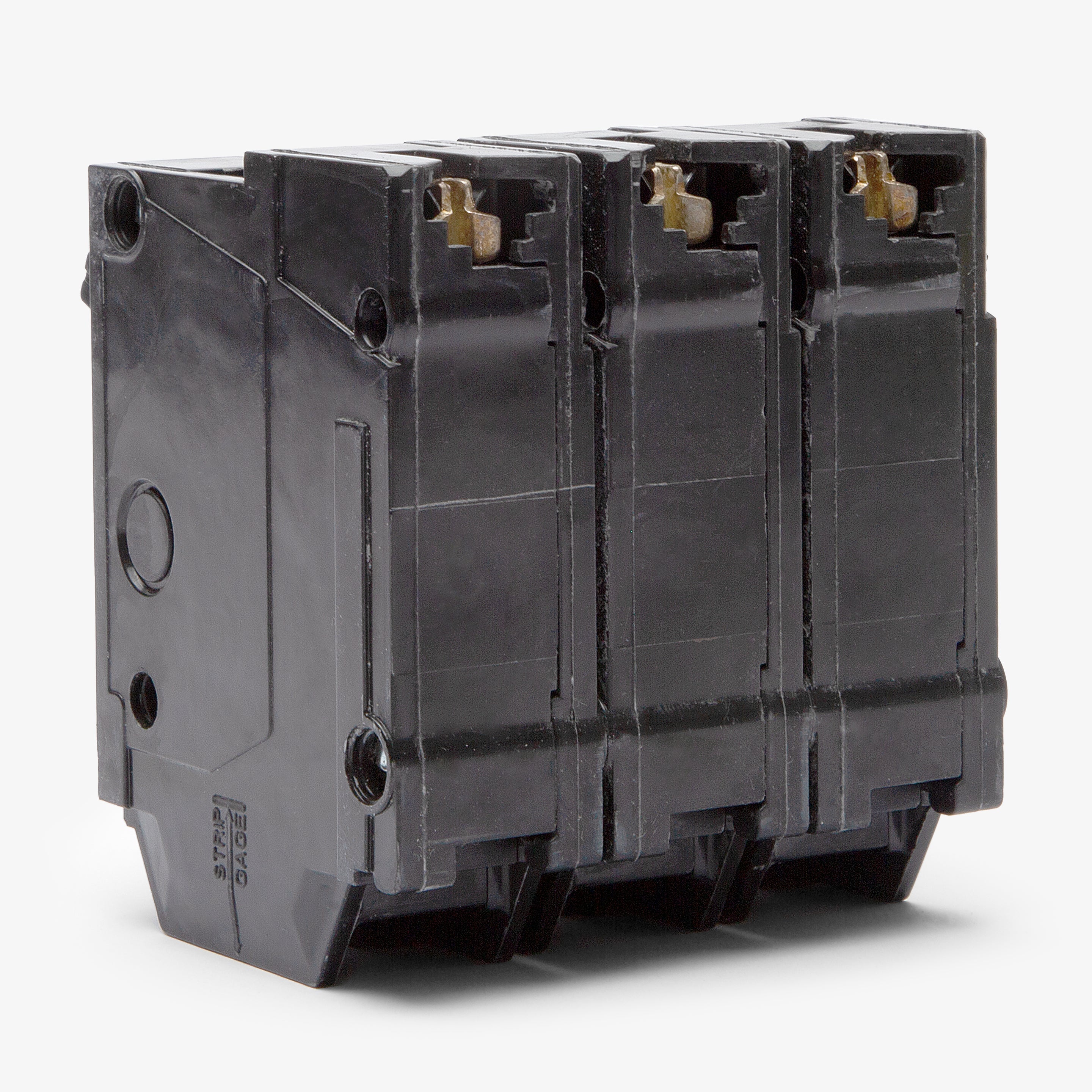

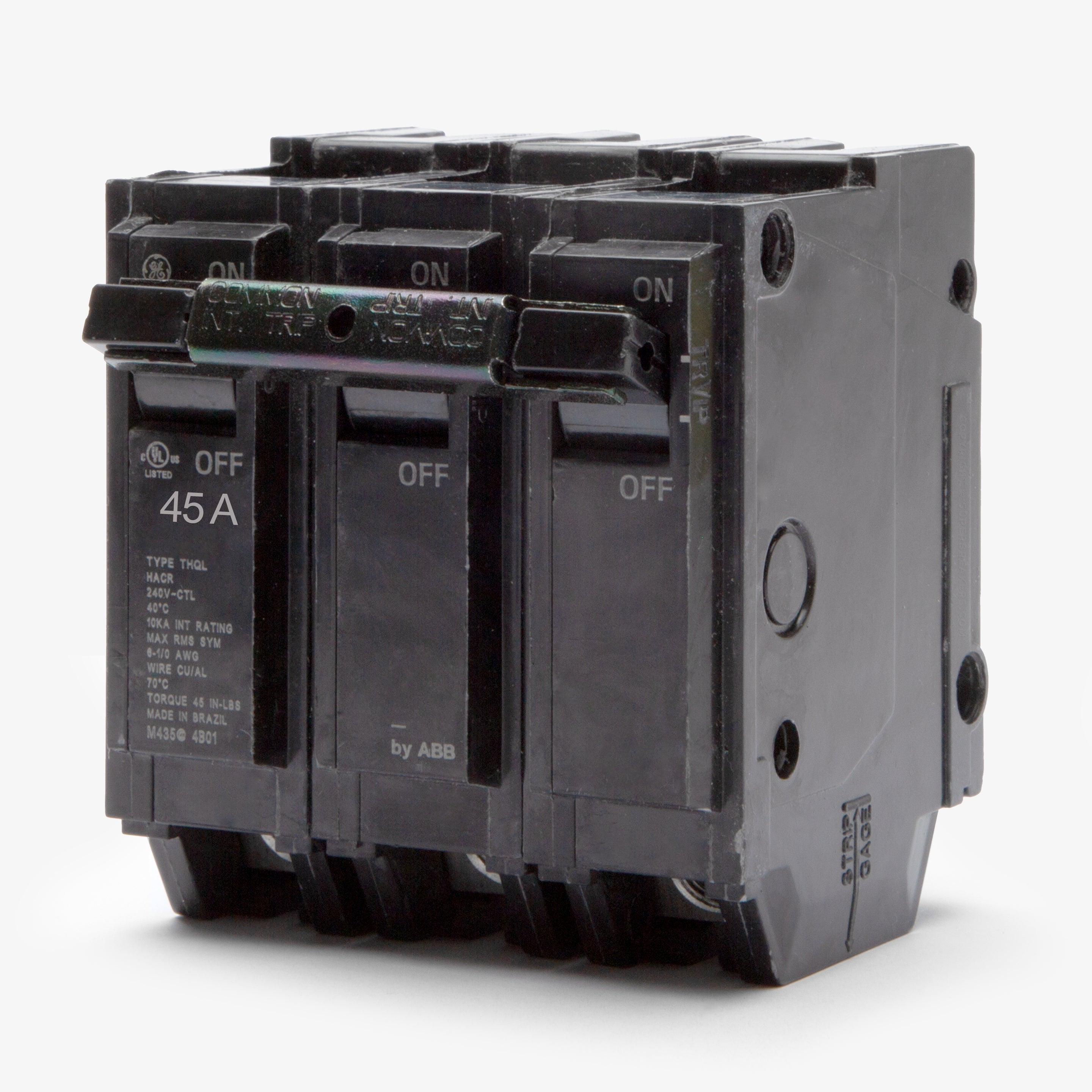

The ABB THQL32045 is a Q Line circuit breaker, one-inch wide per pole, designed for residential and commercial applications. It features Quick-make / Quick-break mechanisms and common trip bars. The THQL32045 breaker features 3 poles, an ampere rating of 45 A, an interrupting rating of 10kAIC, and a voltage rating of 240V.
- Compact, thermal-magnetic devices designed for residential and commercial applications.
- Features Quick-make / Quick-break mechanisms and common trip bars.
- Easy to spot trip indication to ensure safety and reliability.
Product Highlights
The ABB THQL32045 is ideal for installation in load centers or lighting panels. It provides reliable circuit protection with a 10kAIC interrupting rating.
Product Information
Standard Information
-
Brand: ABB
-
Manufacturer Part Number: THQL32045
Technical Specifications
-
Frame: Q-Line
-
Trip Type: LI
-
Trip Range: Non-Interchangeable
-
Load Rating: HACR
-
Voltage Rating: 240 V
-
Amperage Rating: 45 A
-
Number of Poles: 3
-
Interrupt Rating: 10kA@120 Vac / 10kA@120/240 Vac / 10kA@240 Vac
-
Product Type: Circuit Breaker
-
Category: Q Line
-
Product Line: Q-Line (Plug-In)
-
Interrupting Capacity Rating: 10 kAIC
-
Trip Style: Non-Interchangeable
-
Frame Type: Q-Line
-
System Voltage: 120 Vac
-
Trip Function: LI
-
Continuous Current Rated: Standard
-
120 Vac Interrupting Rating: 10 KAIC
-
120/240 Vac Interrupting Rating: 10 KAIC
-
240 Vac Interrupting Rating: 10 KAIC
-
Suitable for Reverse Feed: Yes
-
Long Time: Fixed
-
Instantaneous: Fixed
-
Special Markings: HACR
-
Series: THQL
-
Part Number: THQL32045
-
AIC Rating: 10kA @ 240VAC
-

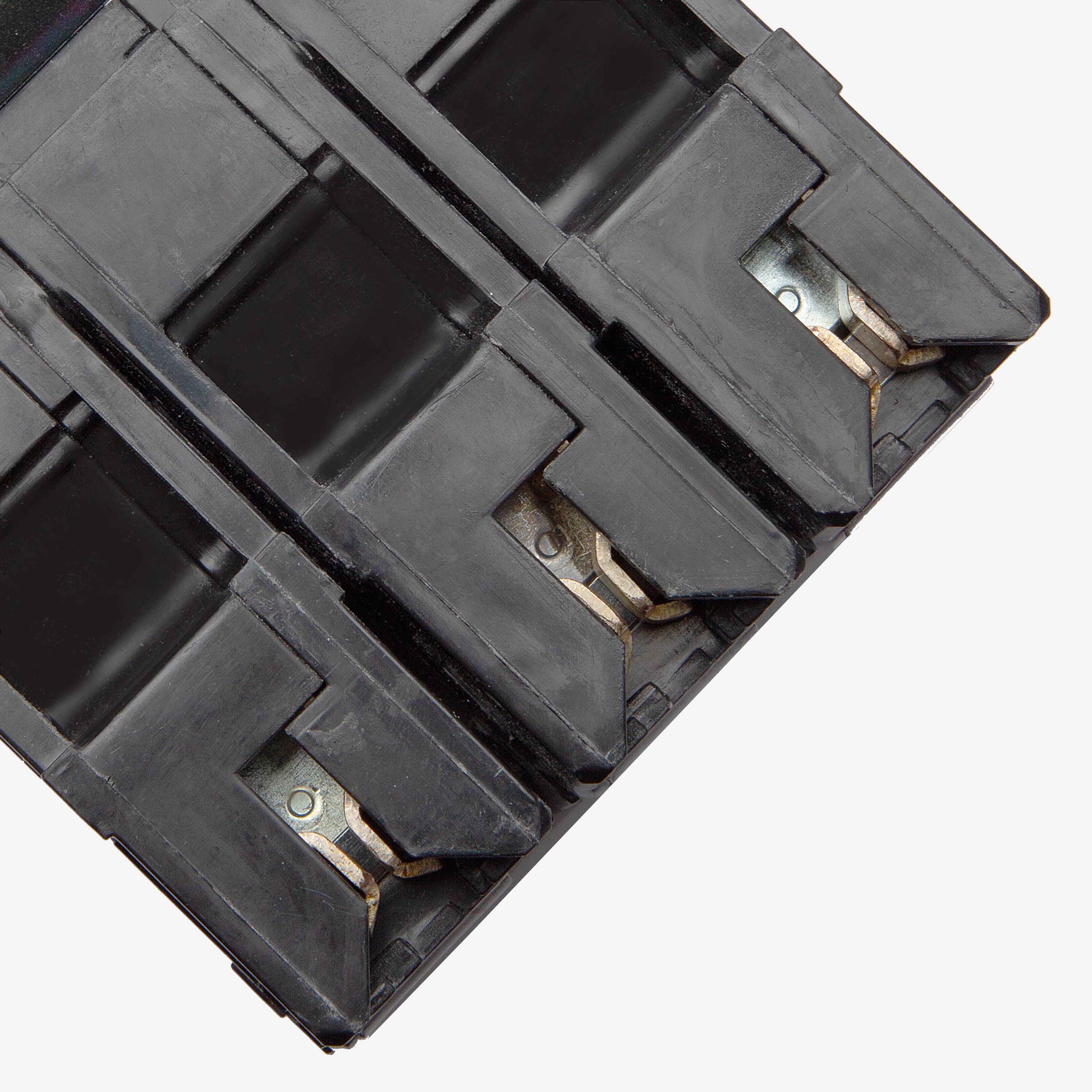

Mounting Style: Plug-On
-

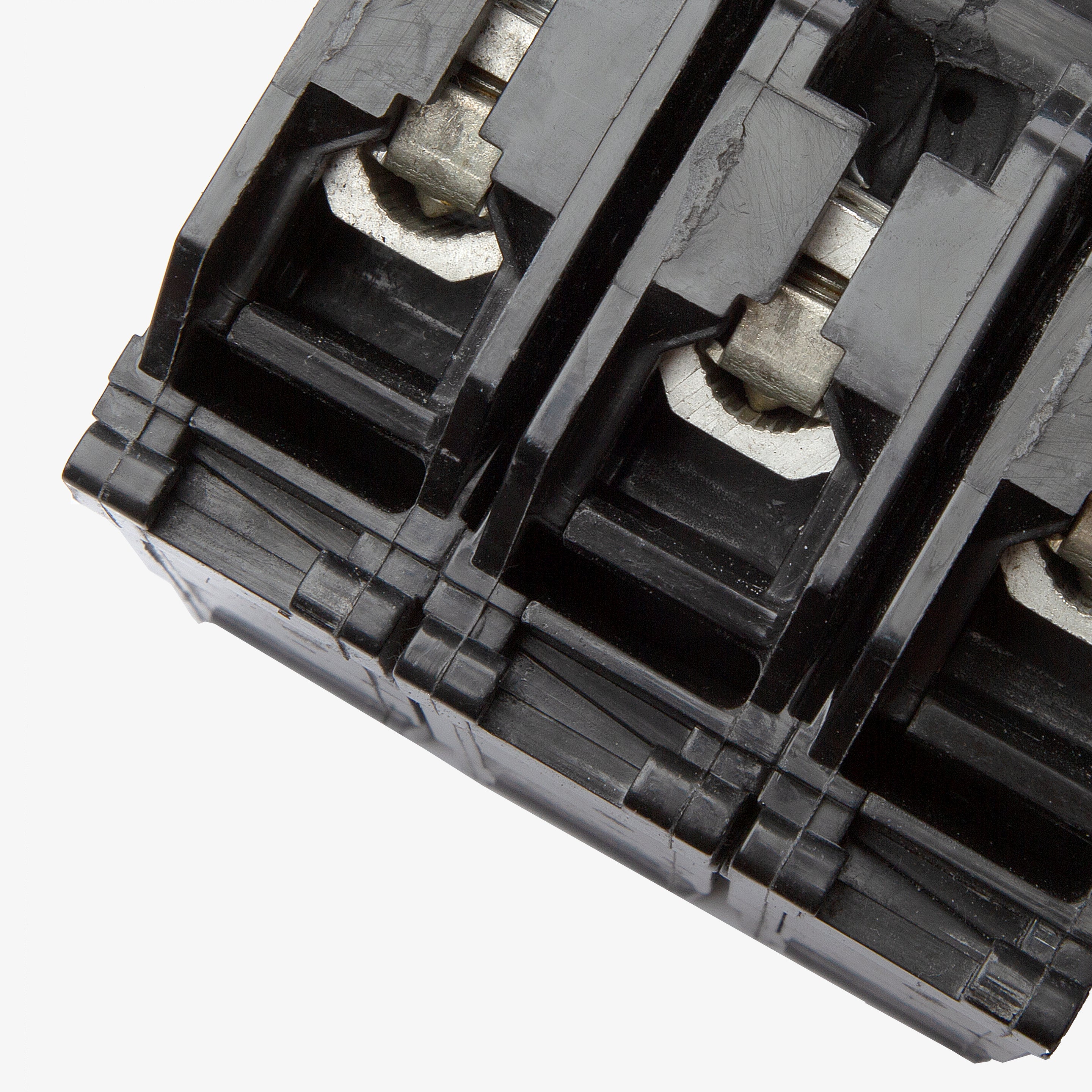

Terminal Type: Box Lugs
-
For Use With: GE A-Series Panelboards, GE PowerMark Gold Load Centers
-
Trip Technology: Thermal Magnetic
-
Trip Function Code: LI
-
Trip Adjustability: Fixed Thermal, Fixed Magnetic
-
Wire Gauge: 8-3 AWG (Cu), 8-3 AWG (Al)
-
Max Wire: 3 AWG
-
Min Wire: 8 AWG
-
Available Options: Padlock Attachment
-
Standards: UL 489, CSA C22.2 No. 5, HACR
-
Approval: CSA, UL
-
Temp Rating: 60C to 75C
-
Construction Features: HACR Rated, Common Trip, Quick-Make/Quick-Break
-
Volts AC: 120, 240
-
Amps: 45
-
Family / Style: Q Line
-
Interrupt Rating AC: 10 kA
-
Breaker Mechanism Type: Toggle
-
Breaker Number of Poles: Three Pole
-
Breaker Amperage Rating: 45 Amp
-
Breaker Voltage Rating: 240 VAC
-
Component: Miniature Circuit Breaker
-
Breaker Function: LI
-
Manufacturer: ABB
