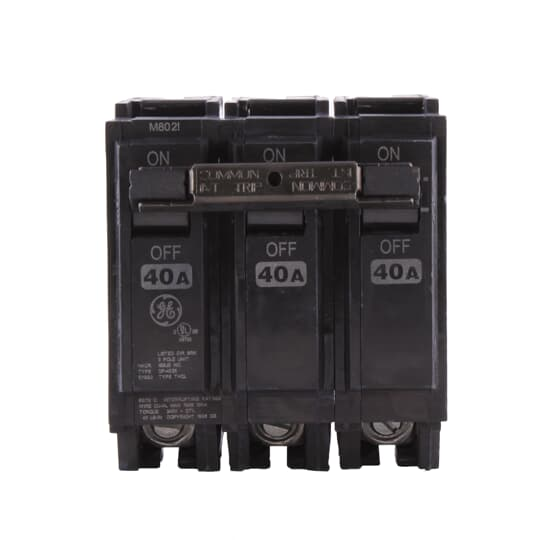

Abb THQL32040 Circuit Breaker 3P 40A 240V 10kaic

Product Description

The ABB THQL32040 is a 3-pole, thermal-magnetic circuit breaker from the Q Line series, rated for 40 amps at 240 volts with a 10kAIC interrupting rating. One inch wide per pole, it is built for load centers and lighting panels in residential and commercial applications. The Quick-make / Quick-break mechanism and common trip bar design deliver reliable overcurrent protection and a clear trip indication that makes faults easy to spot. Licensed electricians typically specify this breaker for branch-circuit protection where a compact, multi-pole device is required.

The THQL32040 fits standard Q Line compatible load centers used in residential and light commercial electrical distribution systems. Its compact one-inch-per-pole footprint makes it well suited for panels where space is limited. The breaker can be ordered with auxiliary contact and shunt trip accessories for added control functionality, and it is available for use in HID lighting applications where additional inrush capacity is needed.

Key Features

• 3-pole configuration for 240-volt branch-circuit protection
• 40-amp continuous ampere rating
• 10kAIC interrupting rating for residential and commercial panels
• Thermal-magnetic trip mechanism with Quick-make / Quick-break operation
• Common trip bar ensures all poles open simultaneously on a fault
• Easy-to-spot trip indication for fast fault identification
• Compatible with auxiliary contact and shunt trip accessories

Compatibility

Designed for use in Q Line compatible load centers and lighting panels in residential and commercial electrical distribution applications.

Installation Notes

Installation must be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and all applicable local codes. De-energize the panel and verify the absence of voltage before handling or installing the breaker. Confirm that the load center is rated and listed for use with Q Line breakers before installation. Do not exceed the breaker ampere rating or voltage rating of the circuit.

Technical Specifications

• Number of Poles: 3
• Ampere Rating: 40 amps
• Voltage Rating: 240 volts
• Interrupting Rating: 10kAIC
• Trip Type: Thermal-magnetic
• Width per Pole: 1 inch
• Application: Load centers and lighting panels, residential and commercial
• UPC: 783164013030

Standard Information

• Brand: ABB
• Manufacturer Part Number: THQL32040
