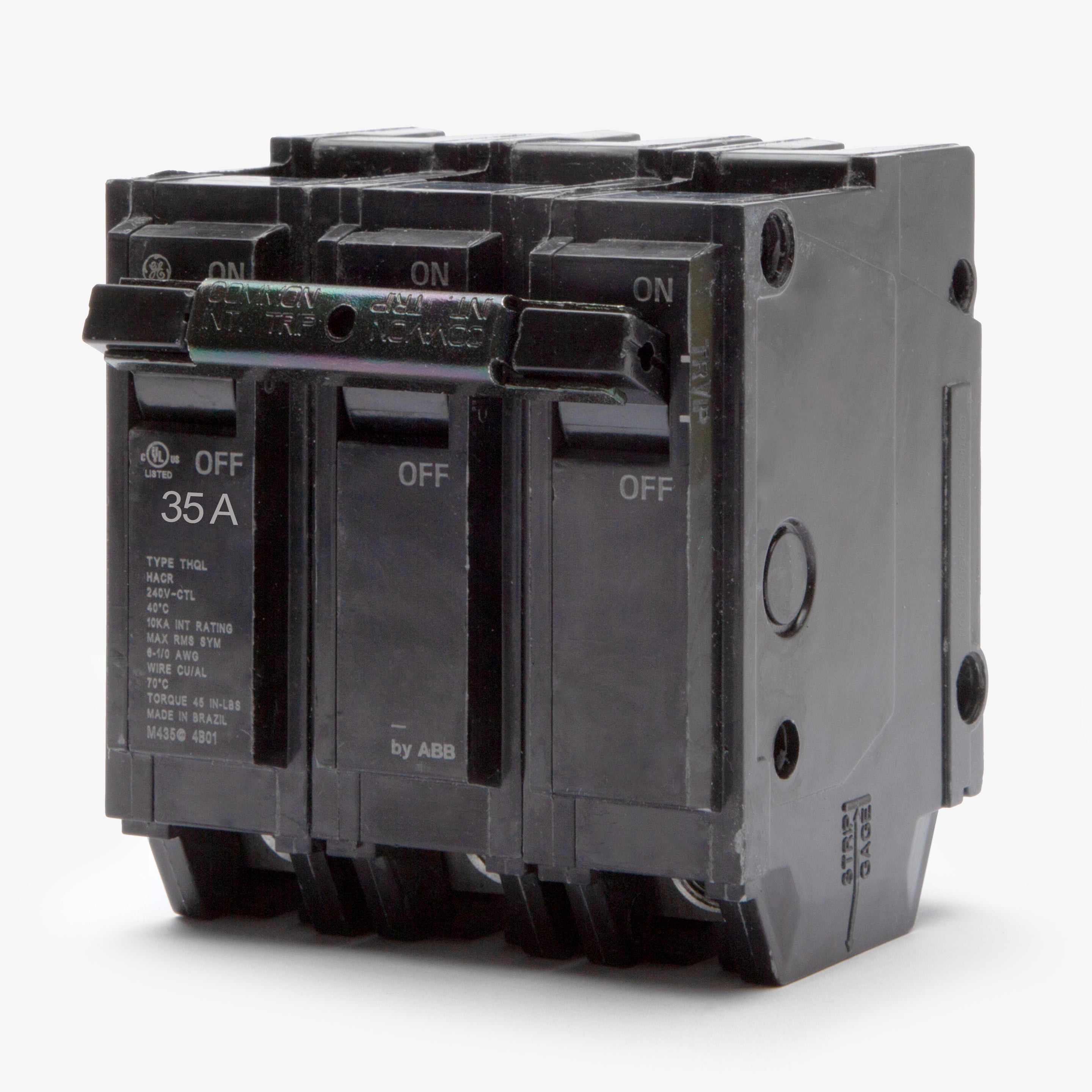

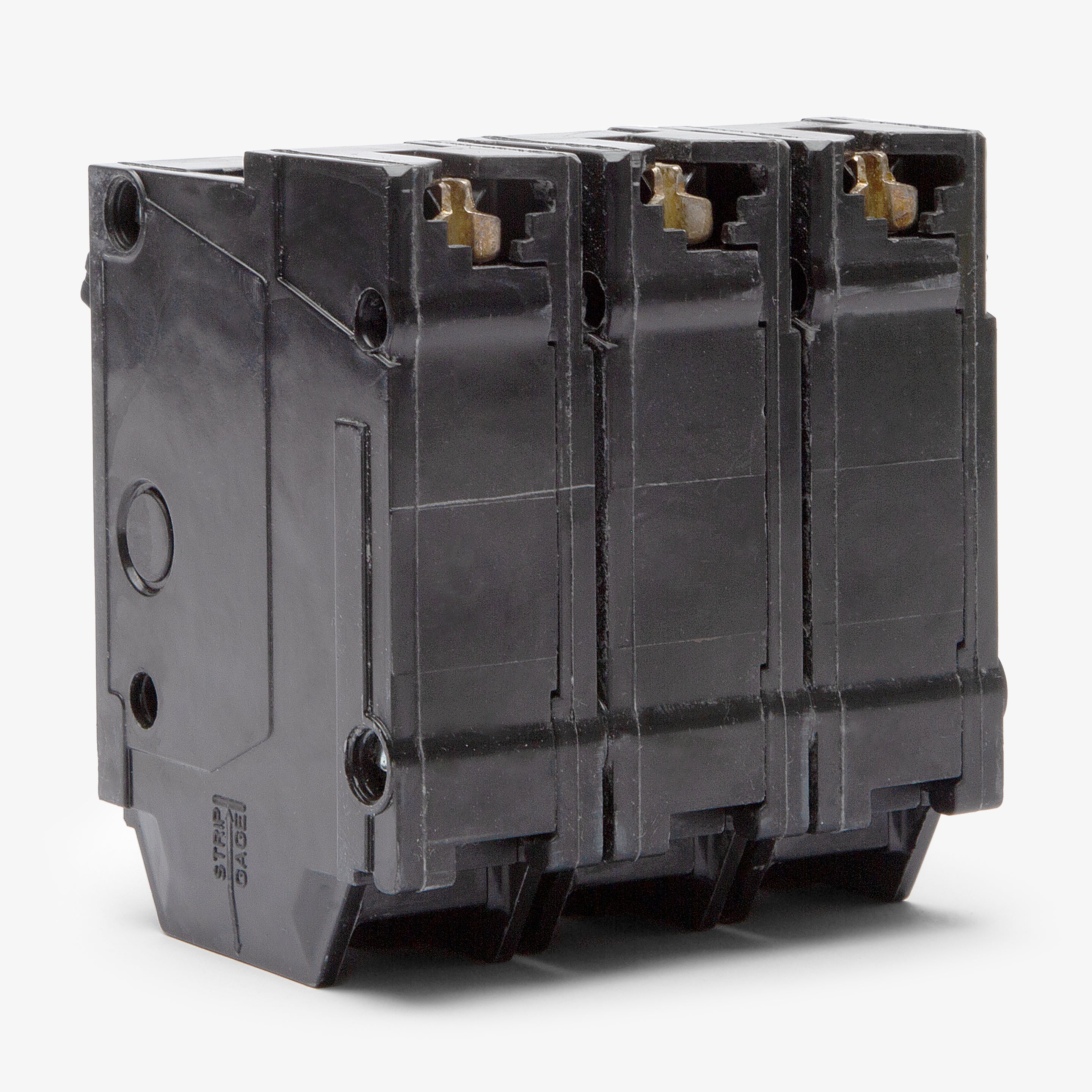

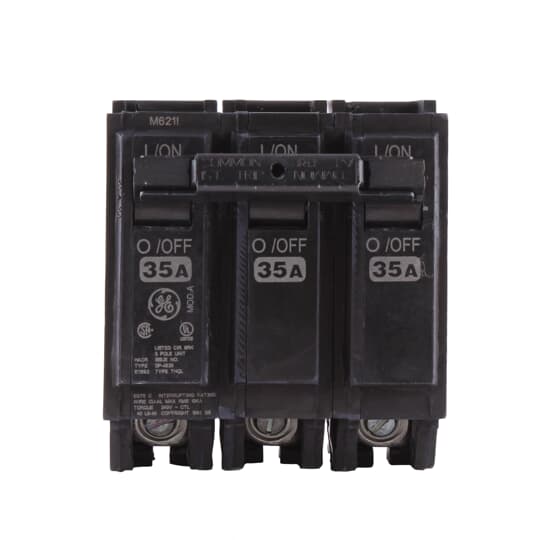

Abb THQL32035 Circuit Breaker 3P 35A 240V 10KA

Product Description

The ABB THQL32035 is a Q Line circuit breaker, one-inch wide per pole, compact, thermal-magnetic device designed for residential and commercial applications. It features 3 poles, an ampere rating of 35 A, an interrupting rating of 10kAIC, and a voltage rating of 240V. It ensures safety and reliability.

• Quick-make / Quick-break mechanisms
• Common trip bars
• Easy to spot trip indication
• Suitable for residential and commercial applications

Product Highlights

The THQL32035 breaker is suitable for a wide range of applications, including residential and commercial environments. It is available with auxiliary contact and shunt trip accessories for expanded functionality.

Product Information

Standard Information

• Brand: ABB
• Manufacturer Part Number: THQL32035

Technical Specifications

• Category: Q Line
• Product Line: Q-Line (Plug-In)
• Interrupting Capacity Rating: 10 kAIC
• Voltage: 240 V
• Trip Style: Non-Interchangeable
• Frame Type: Q-Line
• Amperage: 35 A
• Poles: 3
• Trip Function: LI
• Continuous Current Rated: Standard
• 120 Vac Interrupting Rating: 10 KAIC
• 120/240 Vac Interrupting Rating: 10 KAIC
• 240 Vac Interrupting Rating: 10 KAIC
• Suitable for Reverse Feed: Yes
• Long Time: Fixed
• Instantaneous: Fixed
• Special Markings: HACR
• UL File #: E11592
• Amps: 35
• Volts AC: 120, 240
• Family / Style: Q Line
• Interrupt Rating AC: 10 kA
• Brand: ABB / General Electric
• Series: THQL
• Part Number: THQL32035
• Phase: 3
• AIC Rating: 10kA @ 240VAC

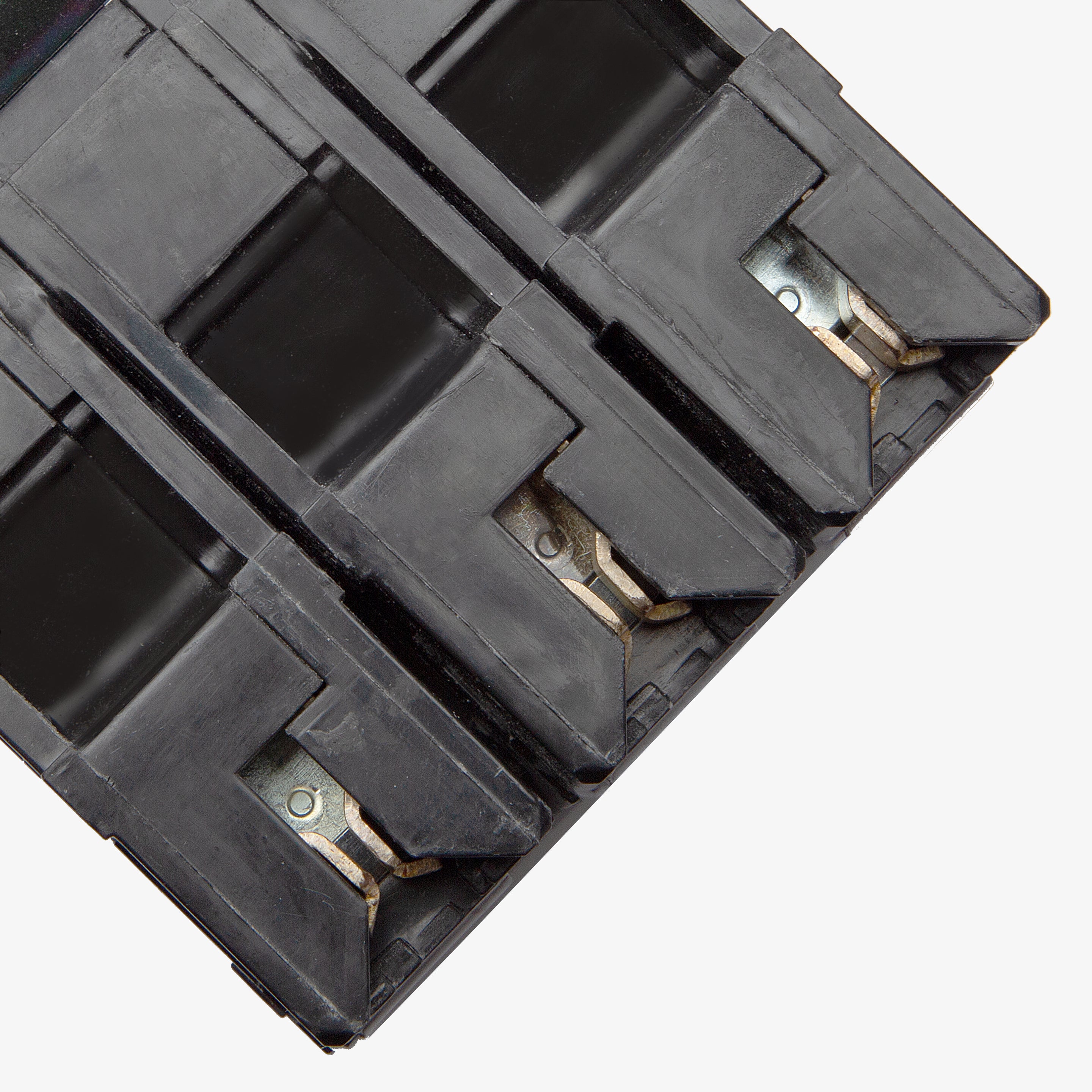

• Mounting Style: Plug-On

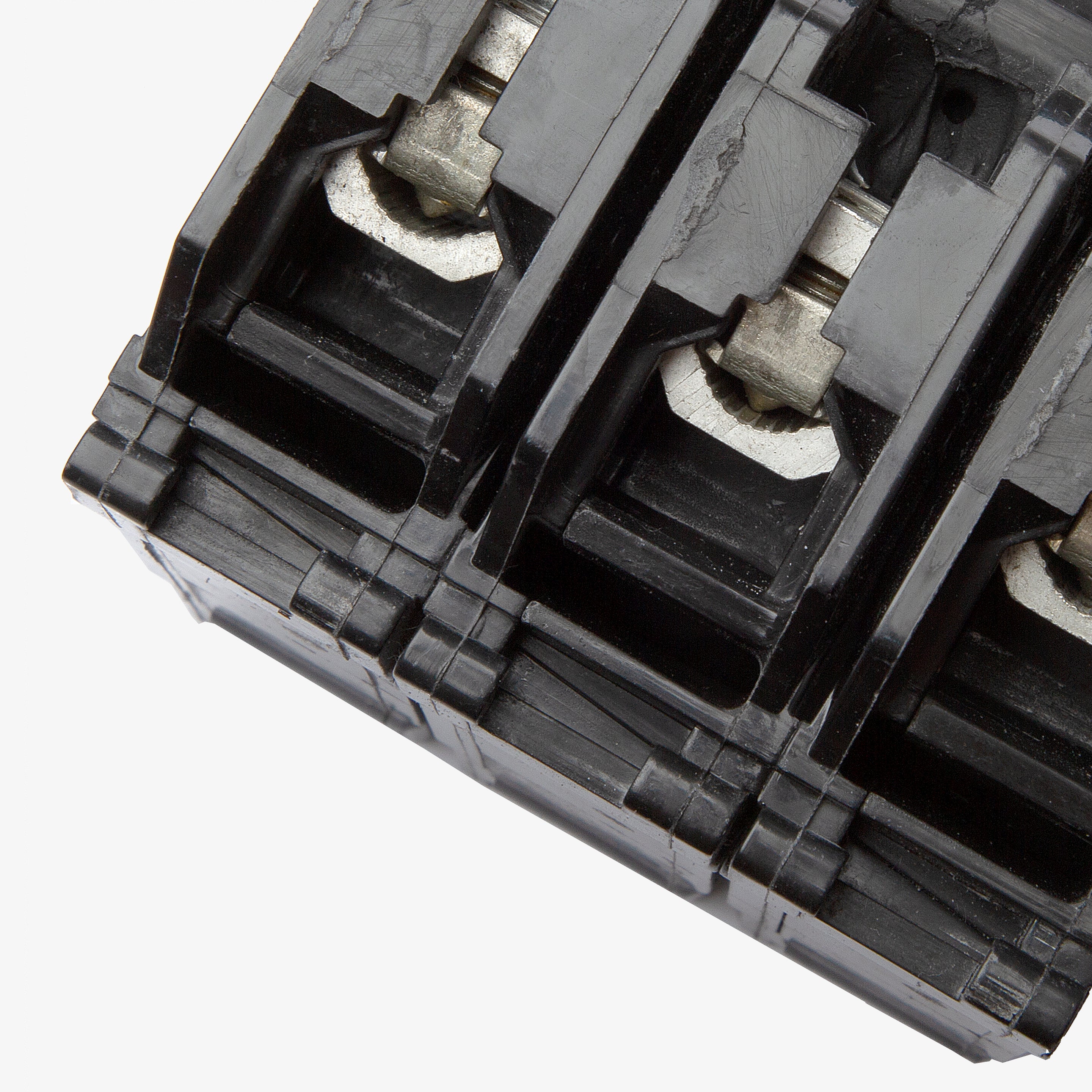

• Terminal Type: Box Lugs
• For Use With: GE A-Series Panelboards, GE PowerMark Gold Load Centers
• Trip Technology: Thermal Magnetic
• Trip Function Code: LI
• Trip Adjustability: Fixed
• Wire Gauge: 8-3 AWG (Cu), 8-3 AWG (Al)
• Max Wire: 3 AWG
• Min Wire: 8 AWG
• Available Options: Shunt Trip, Auxiliary Switch, Padlock Attachment
• Standards: HACR, NEMA AB 1, UL 489
• Approval: CSA, UL
• Temp Rating: 60C to 75C
• Construction Features: HACR Rated, Common Trip, Quick-Make/Quick-Break
• Voltage Rating: 240 V
• Interrupting Capacity: 10 kAIC
• Width: 3.0
• Height: 3.31
• Depth: 2.81
• A.I.C. Rating & Volts: 10k @ 240VAC
• Type: THQL
• Additional Notes: HACR Rated, Q-Line, Plug-On, Molded Case Circuit Breaker
