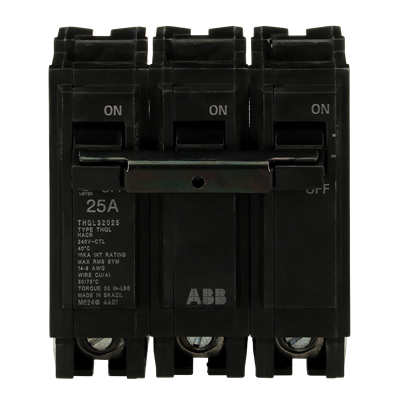

Abb THQL32025 Thql32025 breaker 25 A

Product Description

The ABB THQL32025 Q Line circuit breakers are compact, thermal-magnetic devices designed for residential and commercial applications. These one-inch wide per pole breakers feature Quick-make / Quick-break mechanisms and easy to spot trip indication. The THQL32025 breaker features 3 poles, an ampere rating of 25 A, an interrupting rating of 10kAIC, and a voltage rating of 240V.

• Designed for residential and commercial applications.
• Features Quick-make / Quick-break mechanisms and common trip bars.
• Can be ordered with auxiliary contact and shunt trip accessories.

Product Highlights

The ABB THQL32025 is suitable for use in HID applications and features easy to spot trip indication.

Product Information

Standard Information

• Brand: ABB
• Manufacturer Part Number: THQL32025
• Country of Origin: UKN

Technical Specifications

• Frame: Q-Line
• Trip Type: LI
• Trip Range: Non-Interchangeable
• Load Rating: HACR
• Voltage Rating: 240 V
• Amperage Rating: 25 A
• Number of Poles: 3
• Interrupt Rating: 10kA@120 Vac / 10kA@120/240 Vac / 10kA@240 Vac
• Product Type: Circuit Breaker
• Poles: 3
• Category: Q Line
• Product Line: Q-Line (Plug-In)
• Interrupting Capacity Rating: 10 kAIC
• Trip Style: Non-Interchangeable
• Frame Type: Q-Line
• System Voltage: 120 Vac 120/240 Vac 240 Vac
• Trip Function: LI
• Continuous Current Rated: Standard
• 120 Vac Interrupting Rating: 10 KAIC
• 120/240 Vac Interrupting Rating: 10 KAIC
• 240 Vac Interrupting Rating: 10 KAIC
• Suitable for Reverse Feed: Yes
• Long Time: Fixed
• Instantaneous: Fixed
• Protective Relays: No
• Current Metering: No
• Special Markings: HACR
