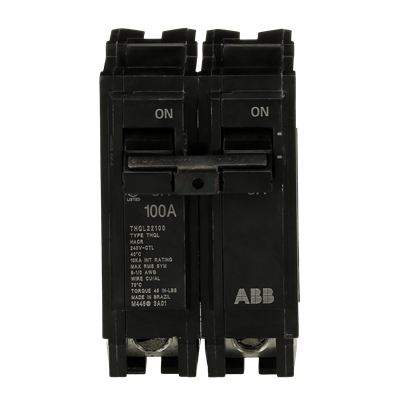

Abb thql22100 breaker 100A

Product Description

The ABB THQL22100 is a Q Line circuit breaker, one-inch wide per pole, compact, thermal-magnetic device designed for residential and commercial applications in load centers or lighting panels. It features Quick-make / Quick-break mechanisms, common trip bars, and easy to spot trip indication to ensure safety and reliability. The breaker features 2 poles, an ampere rating of 100 A, an interrupting rating of 10kAIC, and a voltage rating of 240V.

• Q Line circuit breakers are one-inch wide per pole, compact, thermal-magnetic devices designed for residential and commercial applications in load centers or lighting panels.
• All Q Line circuit breakers feature Quick-make / Quick-break mechanisms, common trip bars, and easy to spot trip indication to ensure safety and reliability.
• Q Line breakers can be ordered with auxiliary contact and shunt trip accessories, and can be ordered for use in HID applications.

Product Highlights

The ABB THQL22100 breaker is suitable for use in HID applications. It has an ampere rating of 100 A, an interrupting rating of 10kAIC, and a voltage rating of 240V.

Product Information

Standard Information

• Brand: ABB
• Manufacturer Part Number: THQL22100

Technical Specifications

• Frame: Q-Line
• Trip Type: LI
• Trip Range: Non-Interchangeable
• Load Rating: HACR
• Voltage Rating: 240 V
• Amperage Rating: 100 A
• Number of Poles: 2
• Interrupt Rating: 10kA@120 Vac / 10kA@120/240 Vac / 10kA@240 Vac
• application: Thermal Magnetic
• Category: Q Line
• Product Line: Q-Line (Plug-In)
• Interrupting Capacity Rating: 10 kAIC
• Trip Function: LI
• Continuous Current Rated: Standard
• Suitable for Reverse Feed: Yes
• Long Time: Fixed
• Instantaneous: Fixed
• Special Markings: HACR
• UL File #: E11592
• Volts AC: 120, 240
• Amps: 100
• Family / Style: Q Line
• Interrupt Rating AC: 10kA
