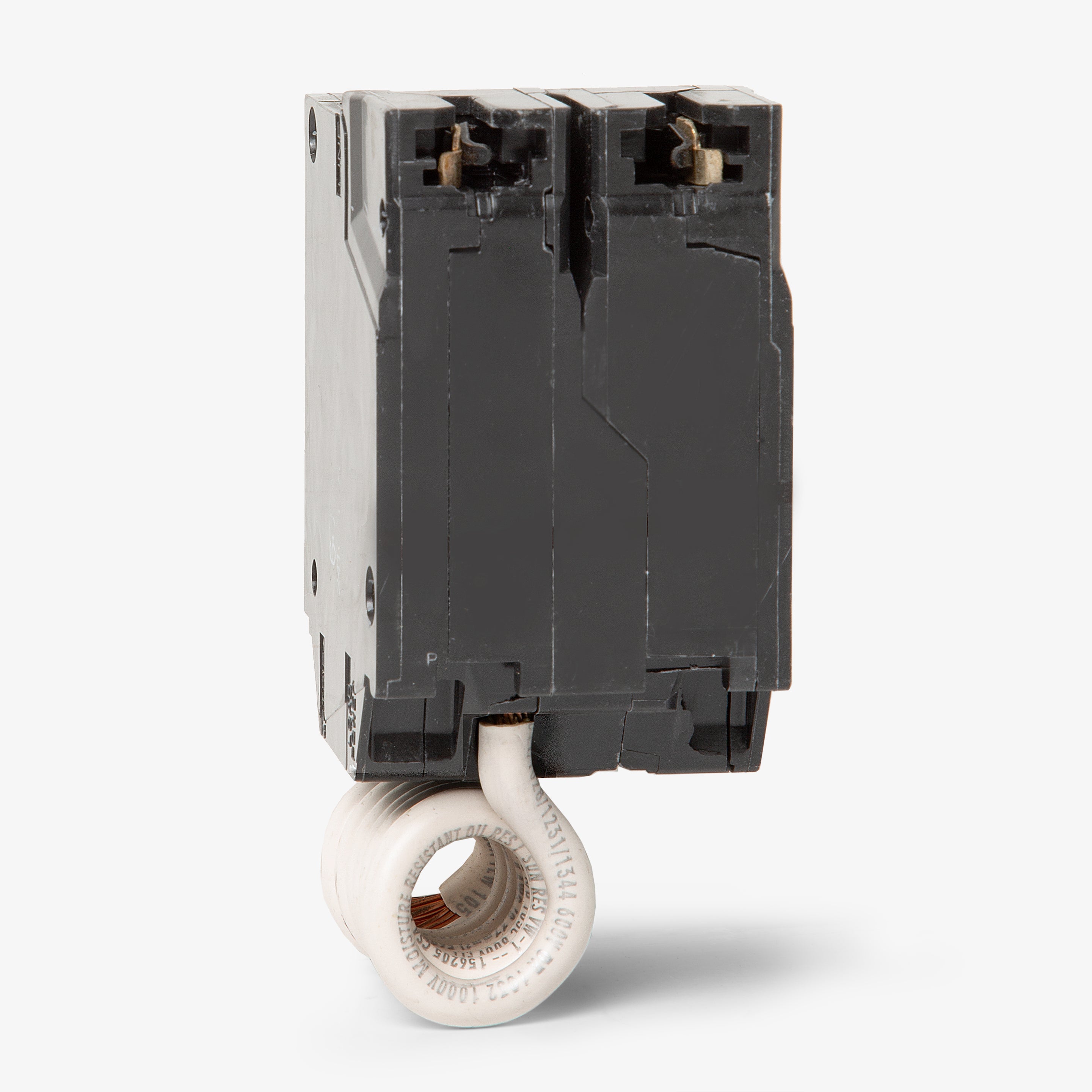

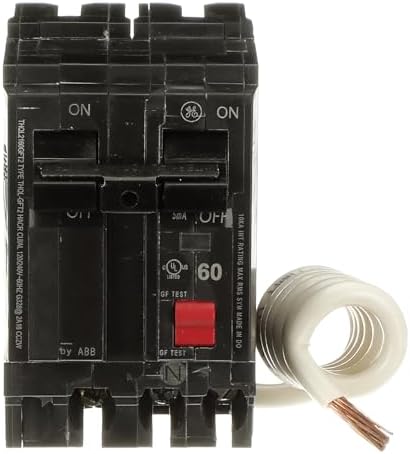

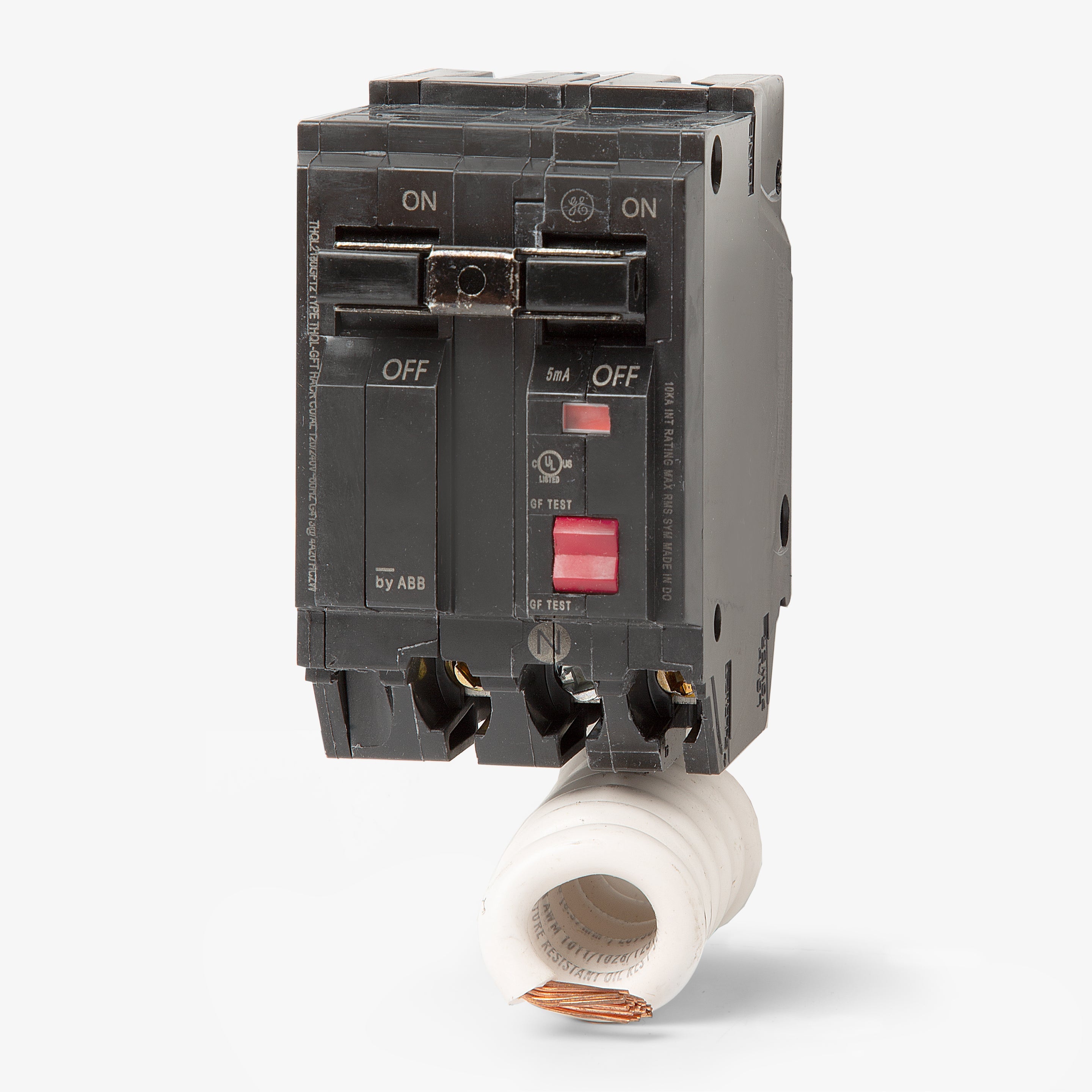

Abb thql2160gft2 q-line® 60a circuit breaker

Product Description

The ABB THQL2160GFT2 is a ground fault circuit breaker (GFCI) designed for residential and commercial applications. It meets NEMA standards, is ANSI certified, and is CSA and UL listed. This double pole, double space, plug-on circuit breaker is rated 60A at 120/240 VAC with a 10 kAIC interrupting rating.

• Provides continuous protection against electrical shocks and ground faults.
• Built with durable materials and superior craftsmanship for long-lasting performance.
• Protects against overloads, short circuits, and ground faults.

Product Highlights

The ABB THQL2160GFT2 GFCI circuit breaker ensures electrical safety with its self-test feature and reliable protection.

Product Information

Standard Information

• Brand: ABB
• Manufacturer Part Number: THQL2160GFT2

Technical Specifications

• Brand: ABB
• Current Rating: 60 Amps
• Circuit Breaker Type: GFCI
• Mounting Type: Plug-In Mount
• Number of Poles: 2
• Smart Home Compatibility: Not Smart Home Compatible
• Voltage: 120 Volts
• Series: THQL
• Amperage: 60A
• AIC Rating: 10kA @ 120/240VAC
• Special Classification: GFCI

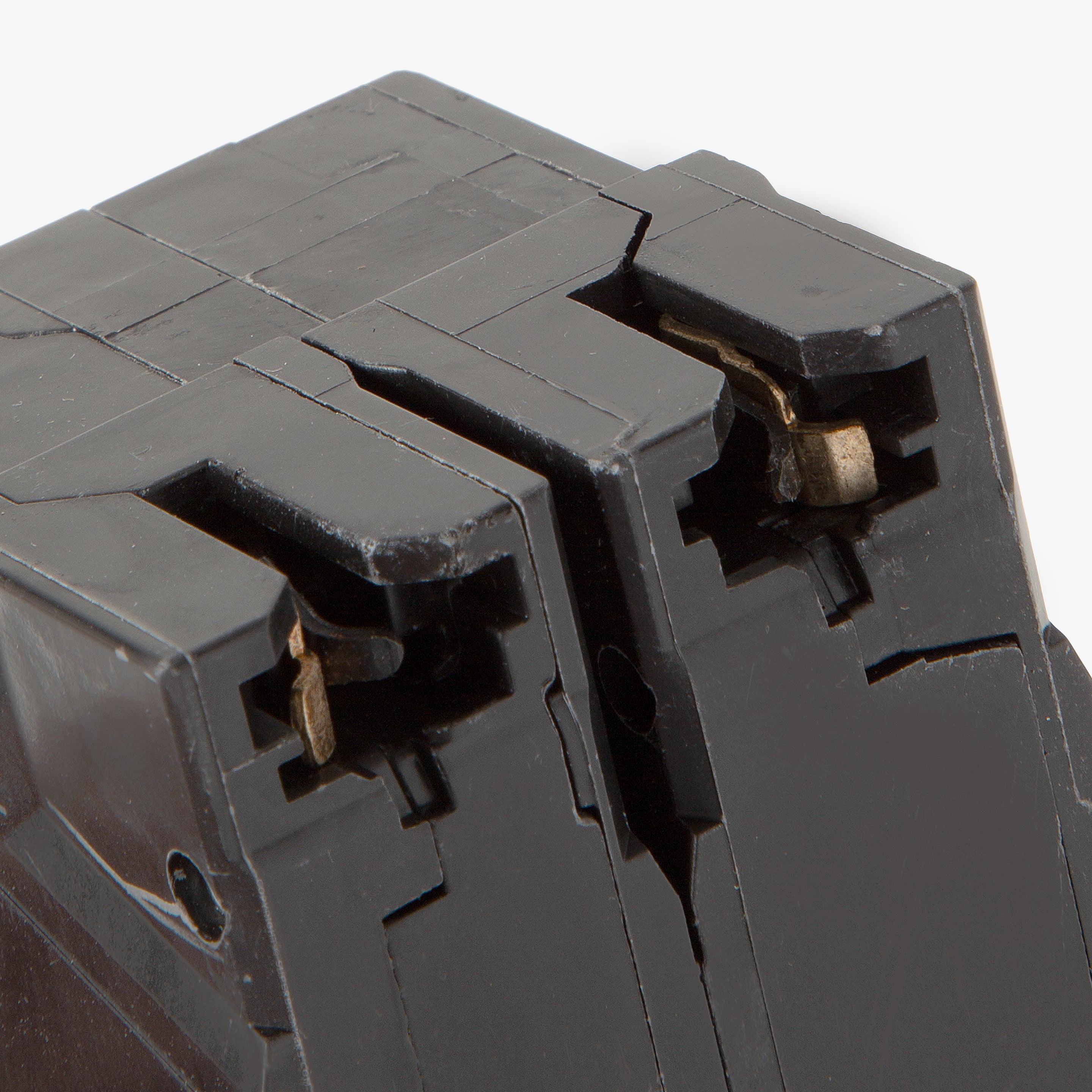

• Mounting Style: Plug-On
• Terminal Type: Box Lugs
• For Use With: GE PowerMark Gold Load Centers, ABB ReliaHome Load Centers
• Trip Technology: Thermal Magnetic
• Trip Function Code: LIG
• Trip Function: Long-Time, Instantaneous, Ground Fault
• Trip Adjustability: Fixed Thermal, Fixed Magnetic
• Wire Gauge: 8-3 AWG (Cu), 8-3 AWG (Al)
• Max Wire: 3 AWG
• Min Wire: 8 AWG
• Available Options: Padlock Attachment

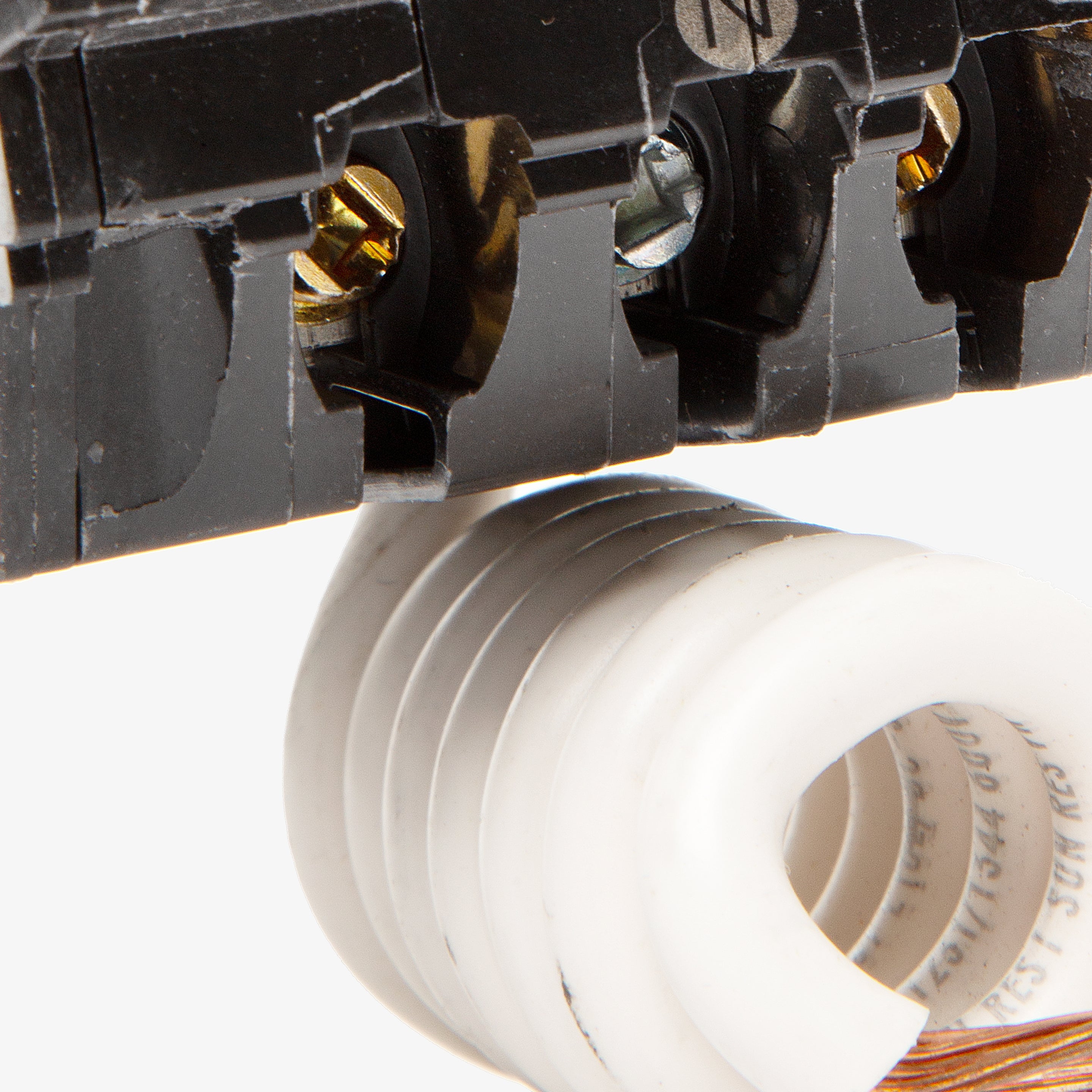

• Accessories: Pigtail Neutral (Factory Installed)
• Standards: CSA C22.2 No. 5, HACR, UL 489, UL 943
• Approval: CSA, UL
• Temp Rating: 10C to 50C
• Construction Features: HACR Rated, Common Trip, Quick-Make/Quick-Break, Self-Test
• MPN: THQL2160GFT2
