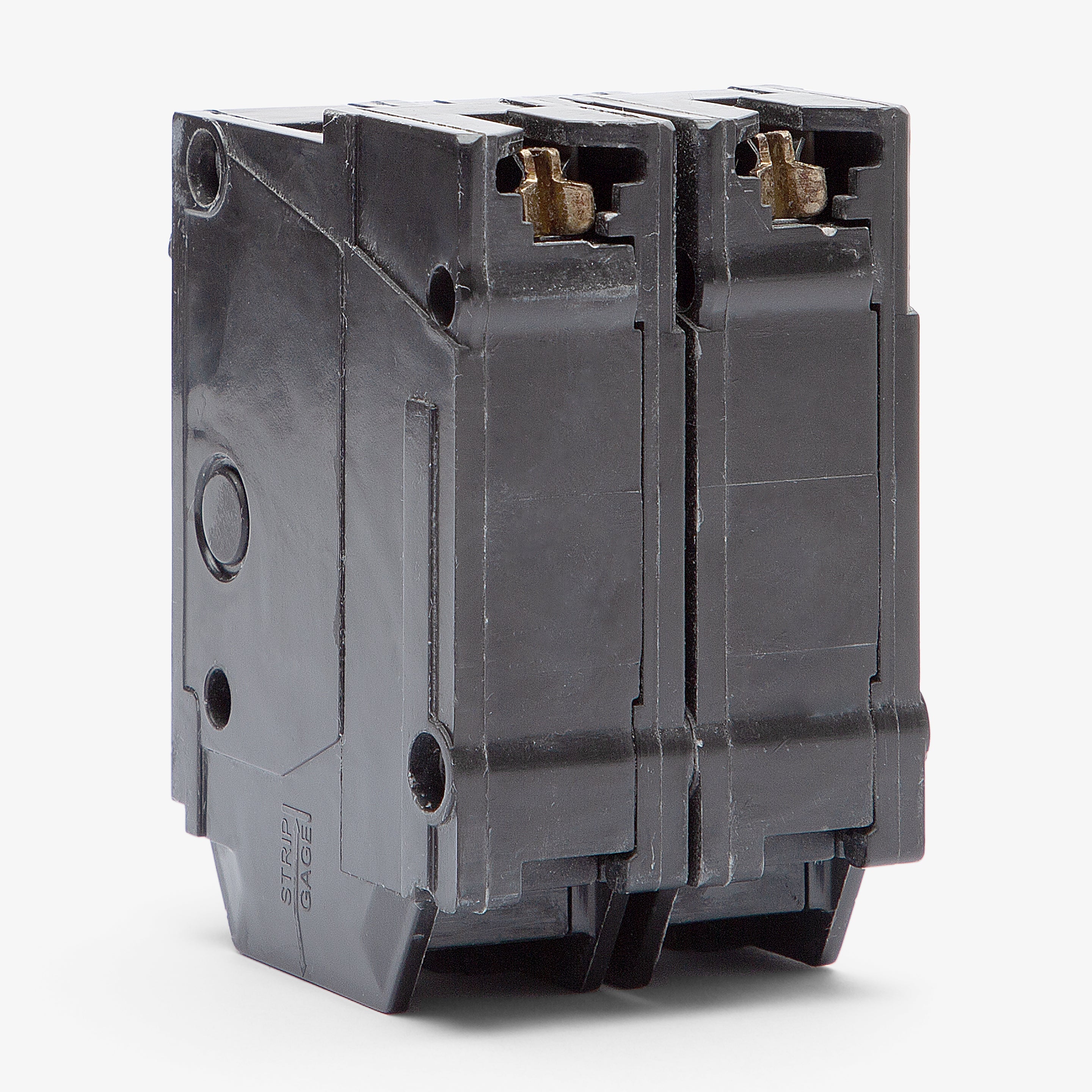

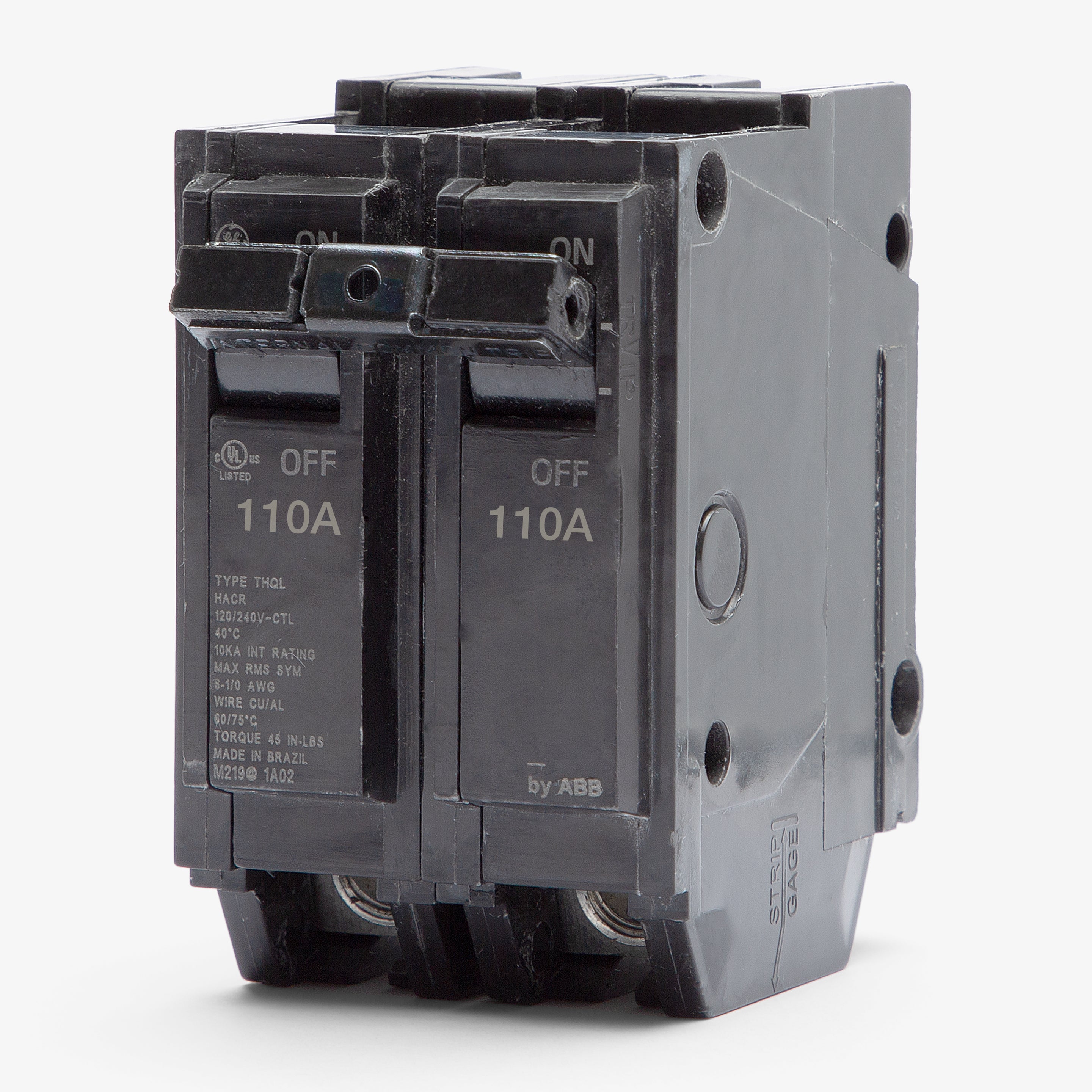

Abb thql21110 q line circuit breaker 110 a

Product Description

The ABB THQL21110 is a Q Line circuit breaker, a compact, thermal-magnetic device designed for residential and commercial applications. It features Quick-make / Quick-break mechanisms and easy to spot trip indication. The THQL21110 breaker features 2 poles, an ampere rating of 110 A, an interrupting rating of 10kAIC, and a voltage rating of 120/240V.

• Designed for residential and commercial applications in load centers or lighting panels.
• Features Quick-make / Quick-break mechanisms, common trip bars, and easy to spot trip indication.
• Mounts into GE PowerMark Gold, ABB ReliaHome, and A-Series panelboards using a standard plug-on connection.

Product Highlights

This 110A two-pole breaker delivers reliable overload and short-circuit protection. It is suitable for heavy-duty residential and commercial applications.

Product Information

Standard Information

• Brand: ABB
• Manufacturer Part Number: THQL21110

Technical Specifications

• Frame: Q-Line
• Trip Type: LI
• Trip Range: Non-Interchangeable
• Load Rating: HACR
• Voltage Rating: 120/240 V
• Amperage Rating: 110 A
• Number of Poles: 2
• Interrupt Rating: 10kA@120 Vac / 10kA@120/240 Vac
• application: Thermal Magnetic
• Series: THQL
• Phase: 1
• AIC Rating: 10kA @ 120/240VAC
• Mounting Style: Plug-On
• Terminal Type: Box Lugs
• For Use With: GE PowerMark Gold Load Centers, ABB ReliaHome Load Centers, GE A-Series Panelboards
• Trip Technology: Thermal Magnetic
• Trip Function Code: LI
• Trip Function: Long-Time, Instantaneous
• Trip Adjustability: Fixed Thermal, Fixed Magnetic
• Wire Gauge: 2-2/0 AWG (Cu), 2-2/0 AWG (Al)
• Max Wire: 2/0 AWG
• Min Wire: 2 AWG
• Available Options: Padlock Attachment, Shunt Trip, Auxiliary Switch
• Standards: UL 489, CSA C22.2 No. 5, HACR
• Approval: CSA, UL
• Temp Rating: 60C to 75C
• Construction Features: HACR Rated, Common Trip, Quick-Make/Quick-Break
• Manufacture: ABB
• Mfr Catalog Number: THQL21110
• UPC: 78316407722
• Product UPC: 78316407722
• UNSPSC: 39121601
• Product Category: Non Interchangeable Trip
• Commodity Code: 3211
• Wire Size: 2 - 2/0 AWG
• Circuit Breaker Type: Circuit Breaker (Standard)
• Indicator Type: Common
• Number of Spaces: 2 Space
