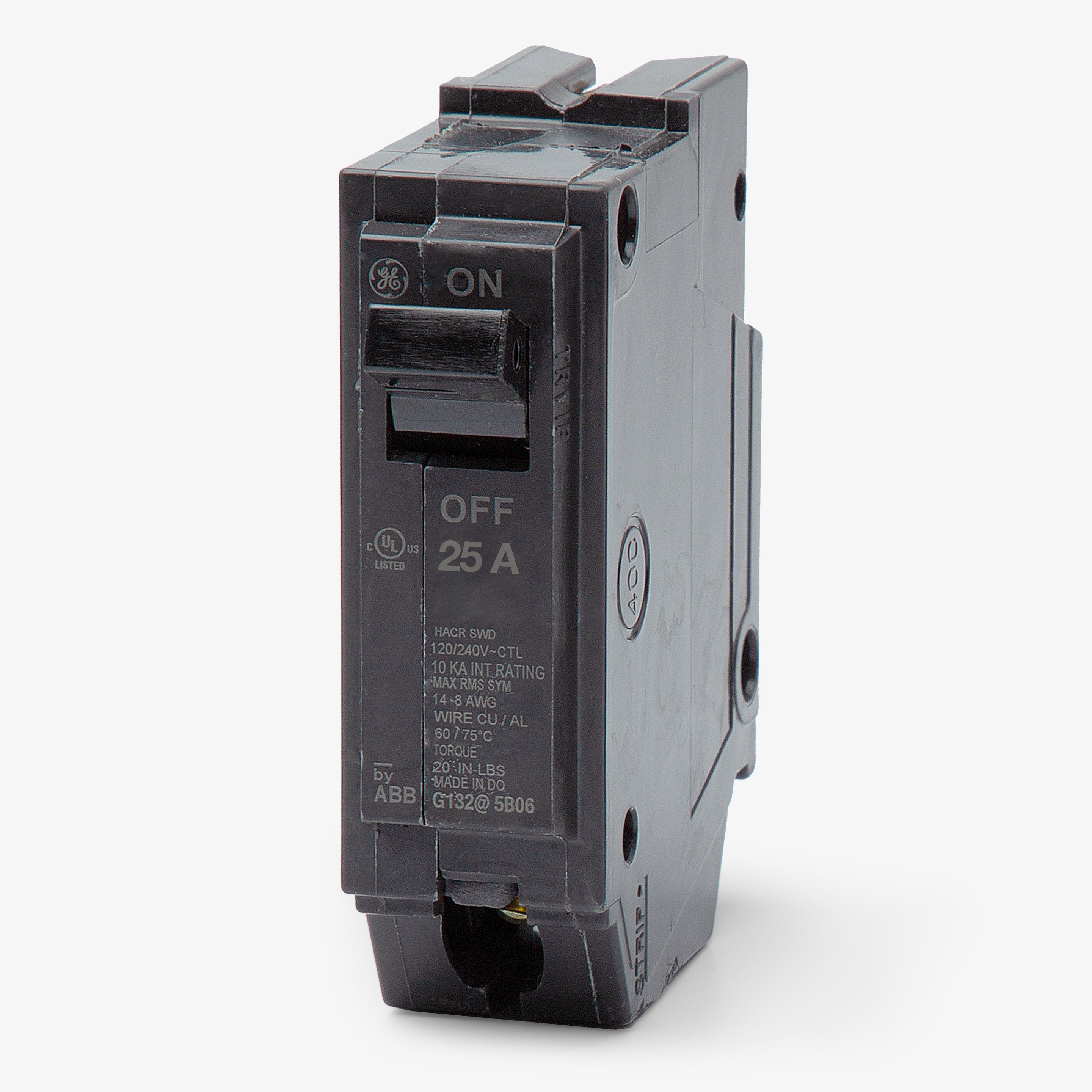

Abb thql1125 q line 25A 1-pole 120/240V

Product Description

The ABB THQL1125 is a Q Line circuit breaker, a compact thermal-magnetic device designed for residential and commercial applications. This 1-pole breaker features a quick-make/quick-break mechanism and easy-to-spot trip indication. It provides reliable protection for standard branch circuits and is HACR rated for HVAC equipment.

• One-inch wide per pole
• Features Quick-make / Quick-break mechanisms and common trip bars
• Interrupting rating of 10kAIC and a voltage rating of 120/240V

Product Highlights

The ABB THQL1125 circuit breaker is suitable for use in load centers or lighting panels.

Product Information

Standard Information

• Brand: ABB
• Manufacturer Part Number: THQL1125
• Country of Origin: United States

Technical Specifications

• Frame: Q-Line
• Trip Type: LI
• Trip Range: Non-Interchangeable
• Load Rating: HACR
• Voltage Rating: 120/240 V
• Amperage Rating: 25 A
• Number of Poles: 1
• Interrupt Rating: 10kA@120 Vac / 10kA@120/240 Vac
• application: Thermal Magnetic
• Category: Circuit Breakers
• Type: Q-Line Plug-In
• Interruption Rating: 10kAIC
• Plug-In Type: 1"
• AIC: 10000
• UL/CUL Listing: UL/CUL
• Used On: AL Series Panelboard
• Approval: UL
• Wire Size: 14 to 8 AWG (Copper), 12 to 8 AWG (Aluminum)

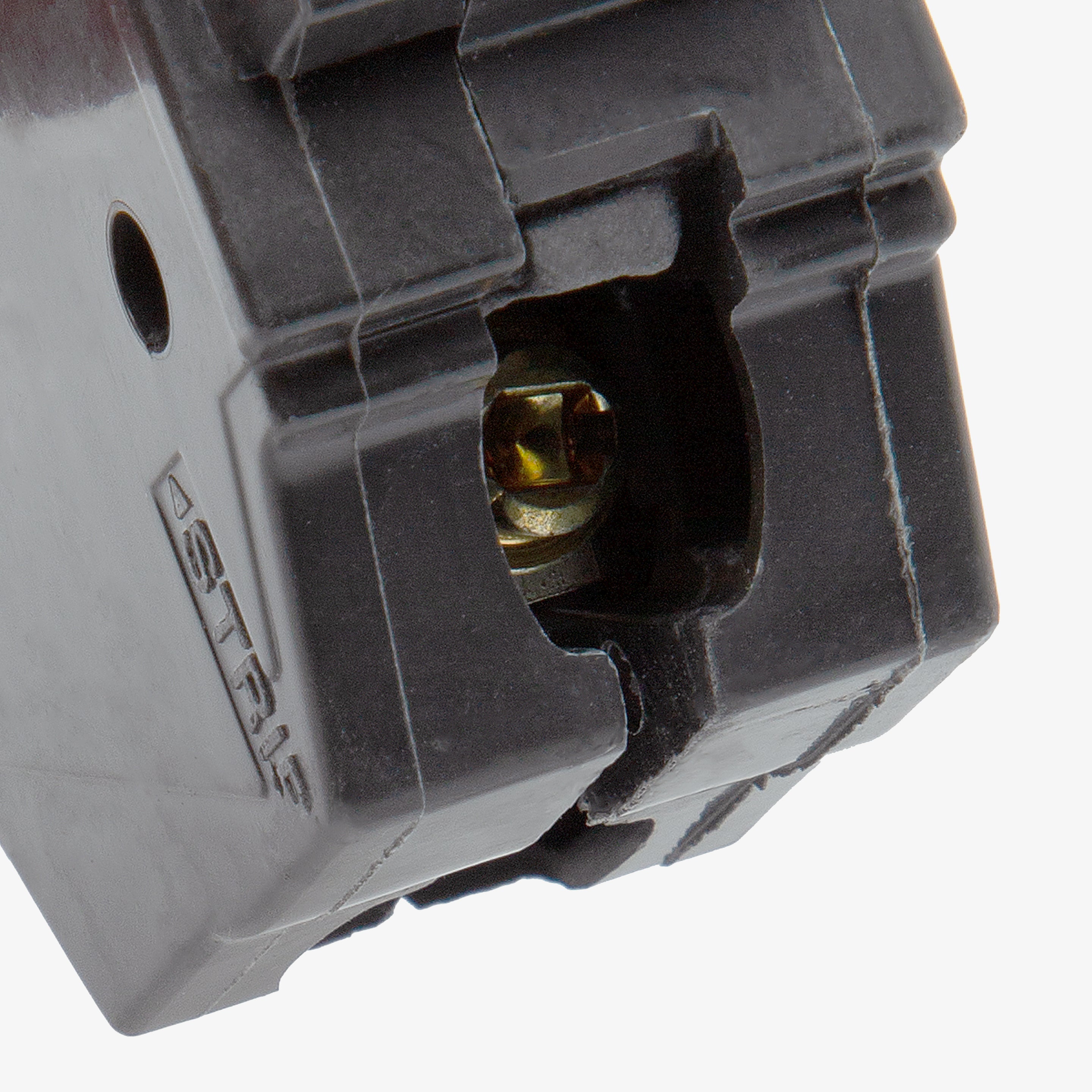

• Terminal Type: Box Lugs

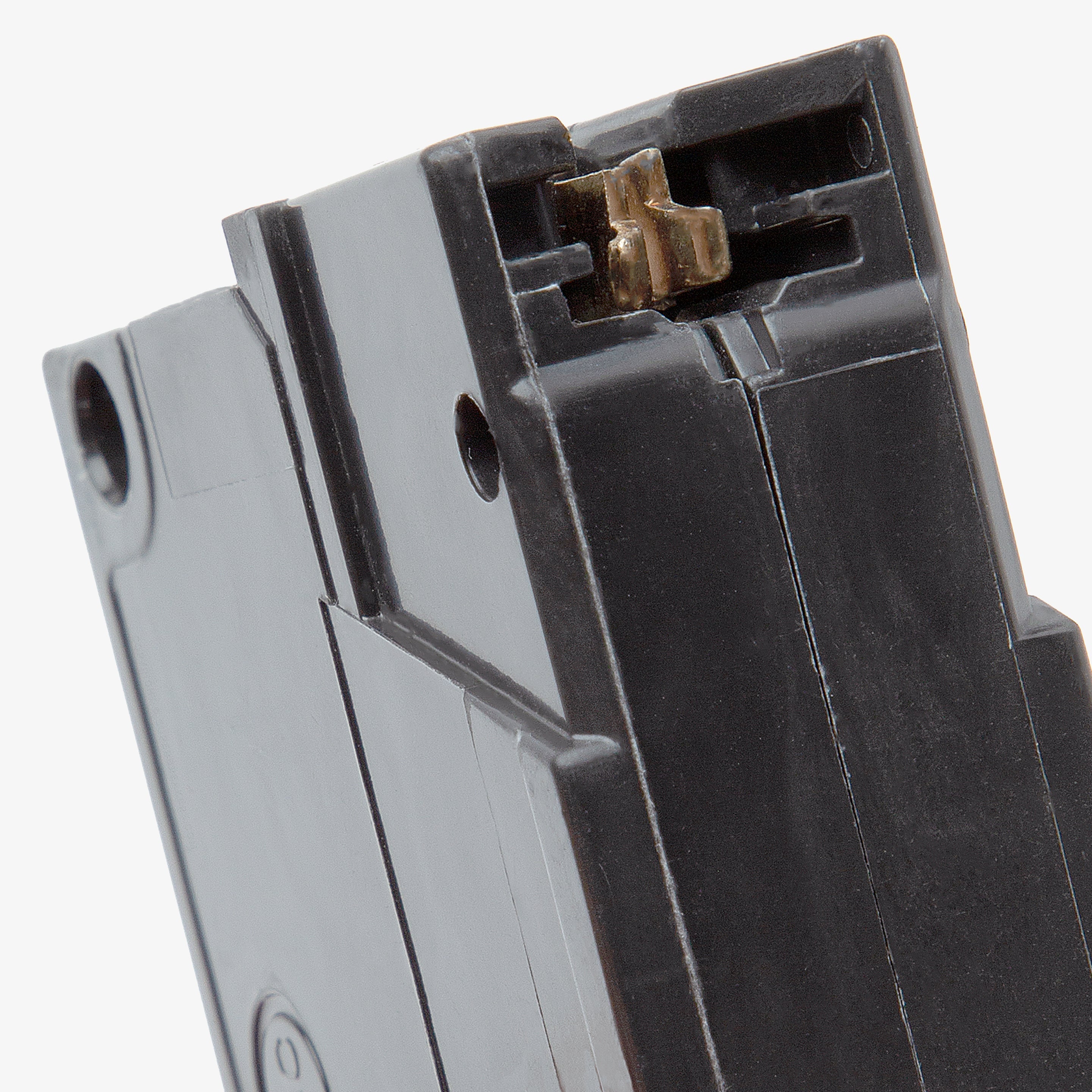

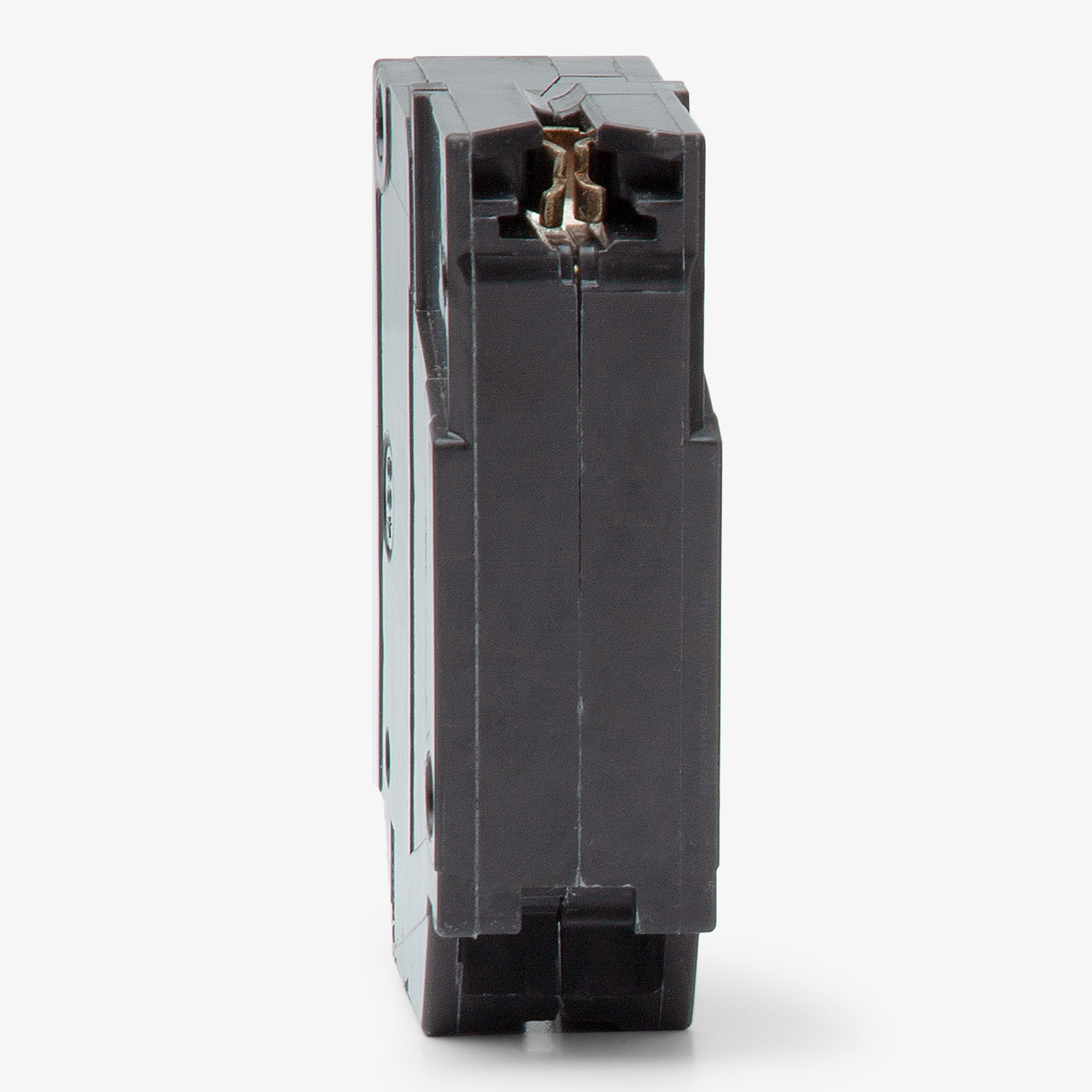

• Mounting: 1 Inch Plug-In
• Series: THQL
• Part Number: THQL1125
• Phase: 1
• Mounting Style: Plug-On
• For Use With: GE PowerMark Gold Load Centers, ABB ReliaHome Load Centers, GE A-Series Panelboards
• Trip Technology: Thermal Magnetic
• Trip Function Code: LI
• Trip Function: Long-Time, Instantaneous
• Trip Adjustability: Fixed
• Wire Gauge: 14-8 AWG (Cu), 12-8 AWG (Al)
• Max Wire: 8 AWG
• Min Wire: 14 AWG (Cu), 12 AWG (Al)
• Available Options: Shunt Trip, Auxiliary Switch, Padlock Attachment
• Standards: HACR, UL 489
• Temp Rating: 60C to 75C
• Construction Features: HACR Rated, Quick-Make/Quick-Break
• Volts AC: 120, 240
• Amps: 25
• Family / Style: Q Line
• Interrupt Rating AC: 10 kA
